NETGEAR R6300v2 User Manual

Administration
90
R6300v2 Smart WiFi Router
Connection Status Button
 To view the Internet connection status:
1. Select ADV
ANCED Home or select Administration > Router Status.

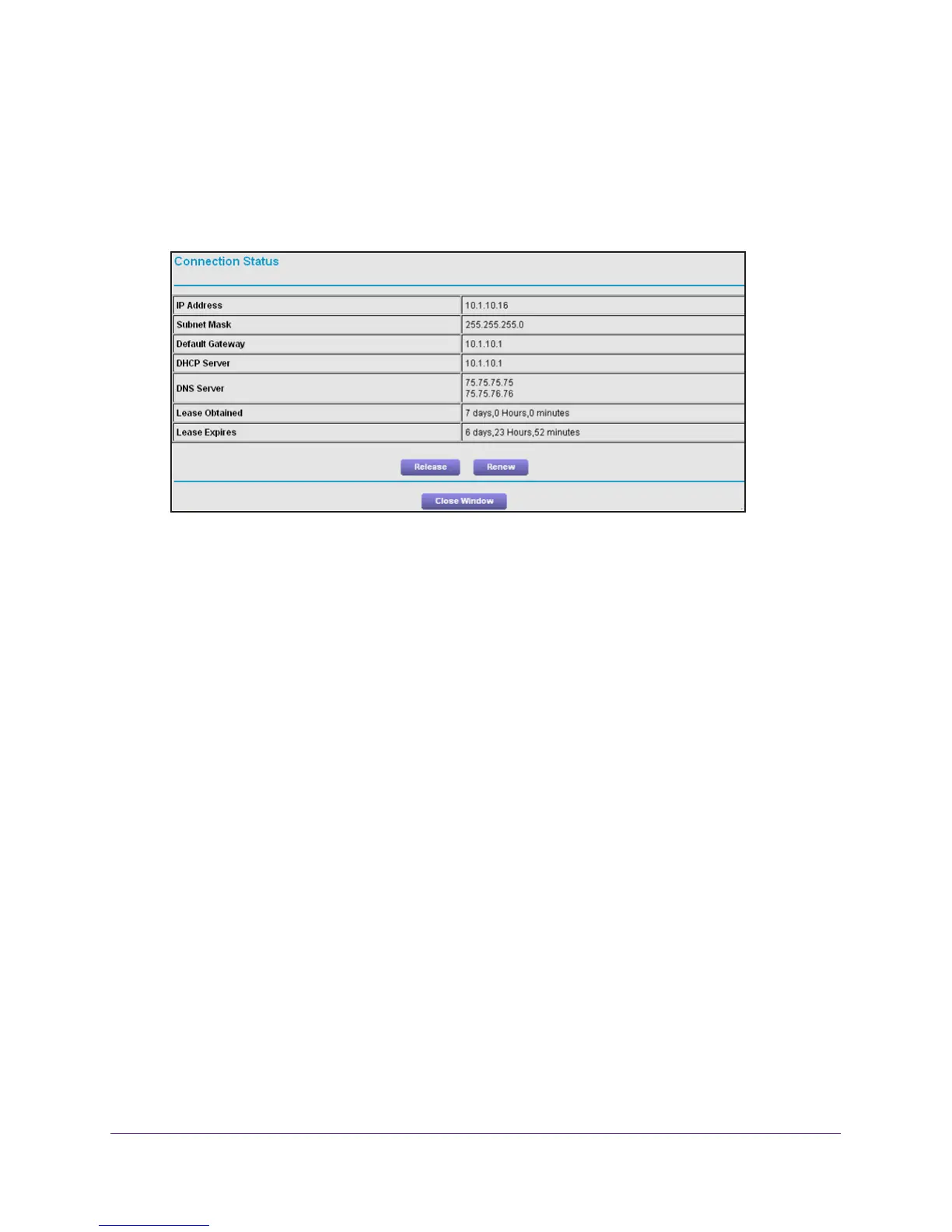

2. In the Internet Port pane, click the Connection Status button.
The following information displays:
• IP Address.
The IP address that is assigned to the router.
• Subnet Mask.
The subnet mask that is assigned to the router.
• Default Gateway.
The IP address for the default gateway that the router
communicates with.
• DHCP Server.
The IP address for the Dynamic Host Configuration Protocol server
that provides the TCP/IP configuration for all the computers that are connected to the
router.
• DNS Server.
The IP address of the Domain Name Service server that provides
translation of network names to IP addresses.
• Lease Obtained.
The date and time when the lease was obtained.
• Lease Expires.
The date and time that the lease expires.
Click the Release button to return the status of all items to 0.
Click the Renew button to refresh the items.
Click the Close W
indow button to close the Connection Status screen.
Wireless Settings (2.4 GHz and 5 GHz)
The following settings are displayed:
Name (SSID).
The wireless network name (SSID) that the router uses.
Region.
The geographic region where the router is being used. It might be illegal to use the
wireless features of the router in some parts of the world.

NETGEAR R6300v2 Specifications

General

WiFi Technology	802.11ac Dual Band Gigabit
WiFi Range	Medium to large homes
USB Ports	1 x USB 3.0, 1 x USB 2.0
Wireless Standard	802.11a/b/g/n/ac
Frequency Band	2.4 GHz and 5 GHz
Processor	800 MHz
Ethernet Ports	4 x Gigabit LAN, 1 x Gigabit WAN
Antenna	3 external antennas
Security	WPA/WPA2-PSK
Ports	1x WAN, 4x LAN, 1x USB 3.0, 1x USB 2.0
Memory	256 MB RAM, 128 MB Flash
WiFi Speed	Up to 1750 Mbps (450 Mbps on 2.4 GHz + 1300 Mbps on 5 GHz)
