Administration
91
R6300v2 Smart WiFi Router
Channel. The operating channel of the wireless port being used. The default channel is Auto.
When Auto is selected, the router finds the best operating channel available. Channels 1, 6,
and 11 do not interfere with each other.
Mode.
The wireless communication mode. At 2.4 GHz, 450 Mbps, 217 Mbps, or Up to 54
Mbps. At 5 GHz, 1300 Mbps, 600 Mbps, or Up to 289 Mbps.
Wireless AP. Indicates whether the radio feature of the router is enabled. If this feature is not
enabled, the WiFi LED on the front panel is off.
Broadcast Name. Indicates whether the router is broadcasting its SSID.
Wi-Fi Protected Setup. Indicates whether WPS is configured for this network.
View Logs of Web Access or Attempted Web Access
The log is a detailed record of events. Up to 256 entries are stored in the log.
To view logs:
Select ADV
ANCED > Administration > Logs.

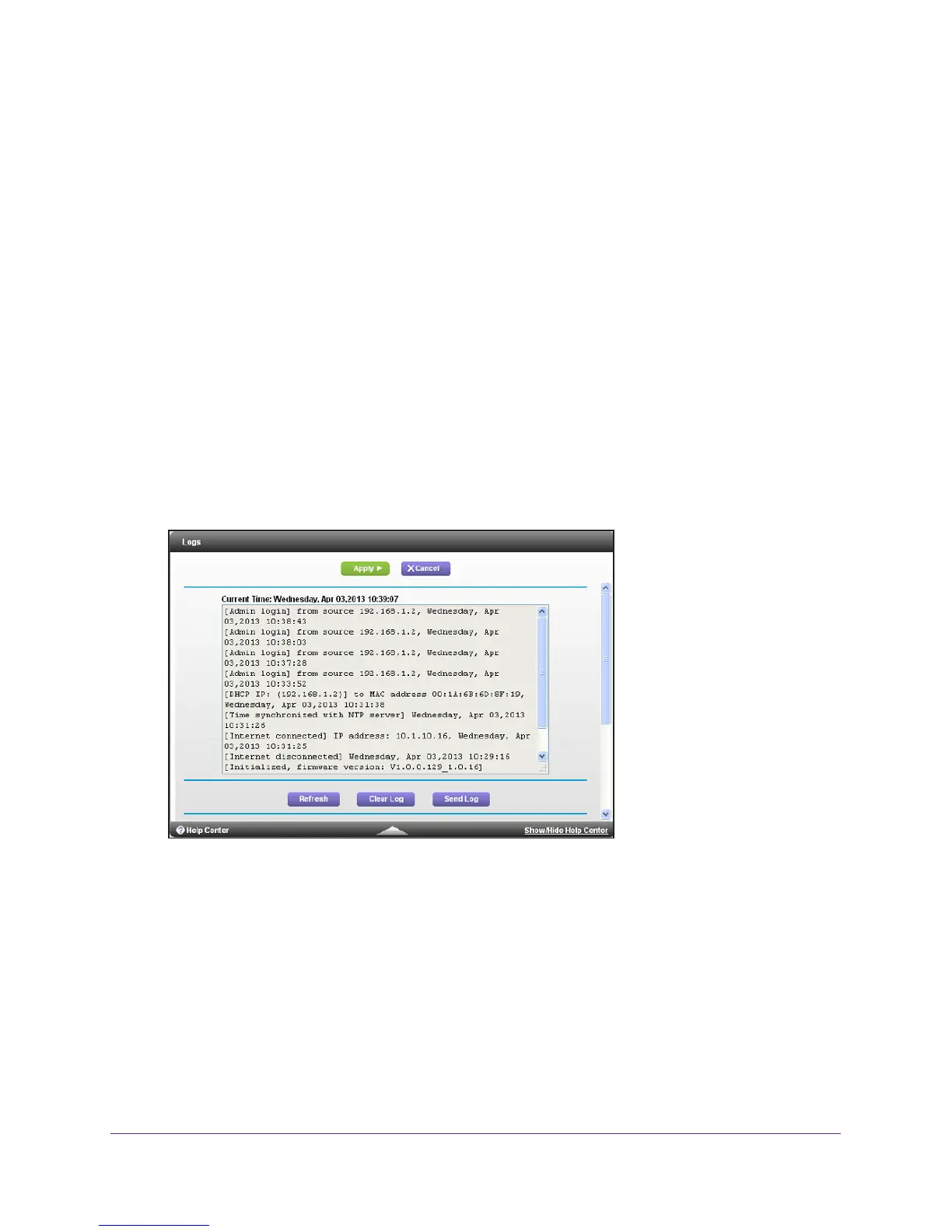

The log screen shows the following information:
• Action. Whether the access was blocked or allowed.
• Source IP.
The IP address of the initiating device for this log entry.
• T
arget address. The name or IP address of the website or news group visited or to
which access was attempted.
• Date and time.
The date and time the log entry was recorded.
To refresh the log screen, click the Refresh button.
To clear the log entries, click the Clear Log button.
To email the log immediately, click the Send Log button.
