ProSAFE Dual Band Wireless N Access Point WNDAP350
Hardware Description
This section describes the front and rear hardware functions of the WNDAP350.
Front Panel

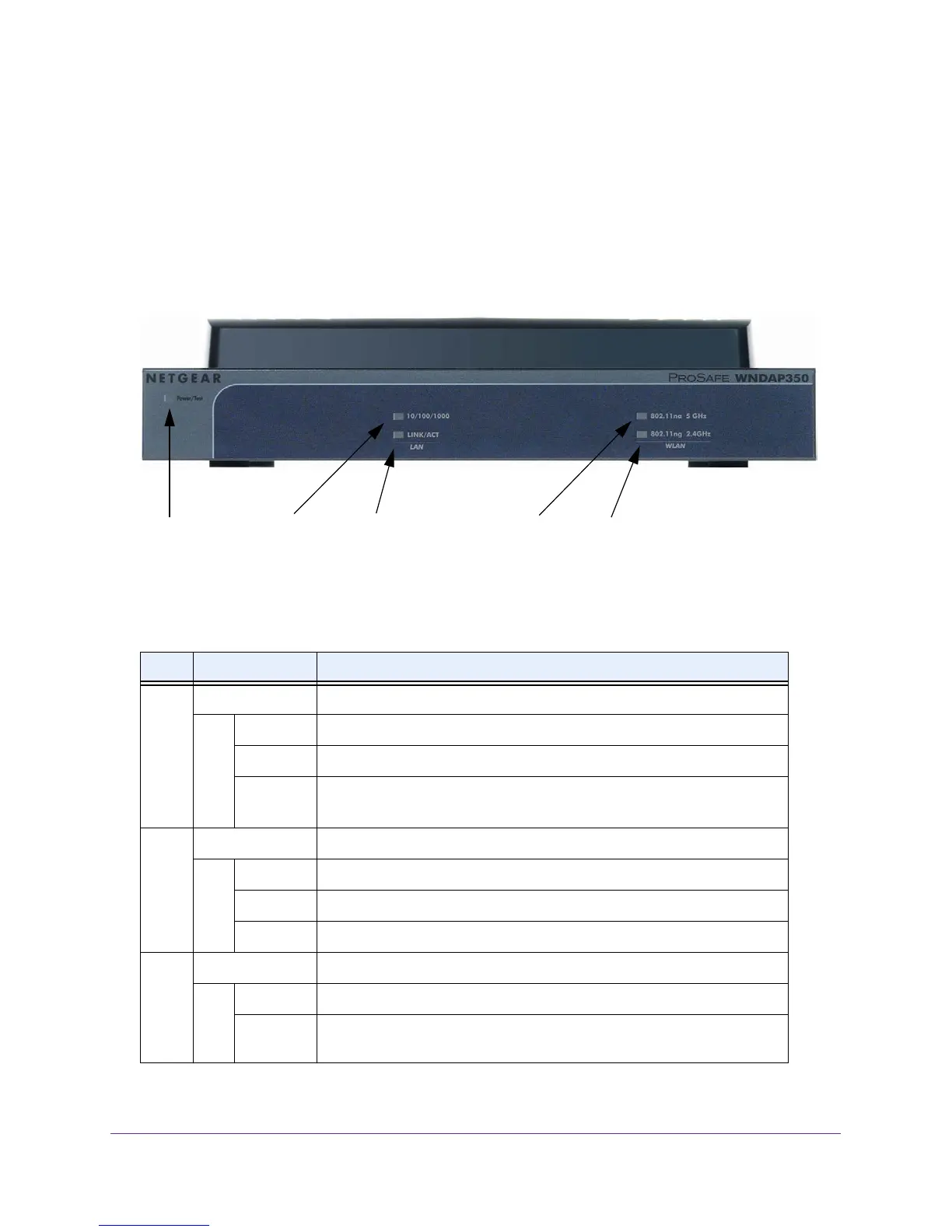

The WNDAP350 front hardware functions are described below.
Figure 1.
The following table explains the LED indicators:
Table 1. Front Panel LED Indicators
Item LED DESCRIPTION
1 PWR/TEST Power Indicator
Off No power.
On Power is on.
Blink Indicates self test, loading software, or system fault (if continues).
Note: This LED may blink for a minute before going off.
2 100 Ethernet LAN Speed Indicator
Off Indicates 10 Mbps or no link detected.
Yellow Indicates 100 Mbps link detected.
Green Indicates 1000 Mbps link detected.
3 LINK/ACT LAN Ethernet LAN Link Activity Indicator
Off Indicates no Ethernet link detected.
Blink
(Green)
Indicates data traffic on the 1000Mbps Ethernet LAN.
