Advanced Configuration
76
ProSAFE Dual Band Wireless N Access Point WNDAP350

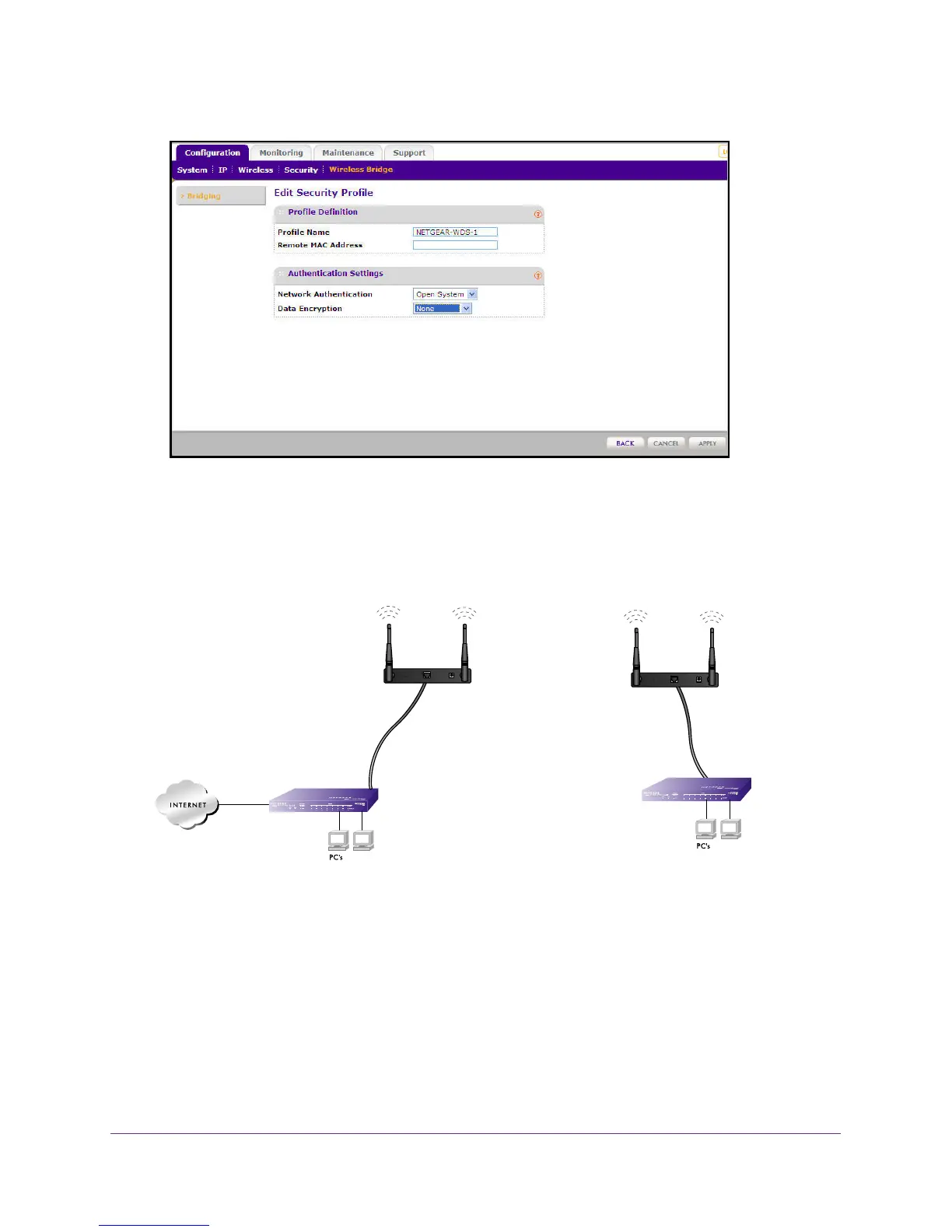

Figure 50. Bridging - Edit WDS Security Profile
Configuring a WNDAP350 as a Point-to-Point Bridge
Figure 51, Wireless point-to-point bridge setup shows a point-to-point bridge configuration.
Figure 51. Wireless point-to-point bridge setup
To configure a point-to-point bridge
1. Under the Configuration tab, select Wireless Bridge. Then, select Bridging. The
Bridging screen displays (see Figure 49, Enable Wireless Point-to-Point Bridge).
2. Configure the WNDAP350 (AP1) on LAN Segment 1 in Point-to-Point Bridge mode.
3. Configure the WNDAP350 (AP2) on LAN Segment 2 in Point-to-Point Bridge mode.
AP1 must have AP2’s MAC address in its Remote MAC Address field and AP2 must have
AP1’s MAC address in its Remote MAC Address field.
LAN
Segment 1
Router
AP in
Point-to-Point
Bridge Mode
AP in
Point-to-Point
Bridge Mode
LAN
Segment 2
Hub or Switch
AP1
ETHERNET
RESET
5-12V DC
AP2
ETHERNET
RESET
5-12V DC
