Management
50
ProSAFE Dual Band Wireless N Access Point WNDAP350
Remote Management
Both the SNMP and Remote Console are enabled by default, which allows for remote
management of the WNDAP350 from a client running SNMP management software, as well
as from a secure Telnet console.
To set up an SNMP management interface:
1. Under the Maintenance tab, select Remote Management, and then select SNMP from
the left sidebar. The SNMP screen displays, as shown in Figure 27, Configure SNMP
settings below:

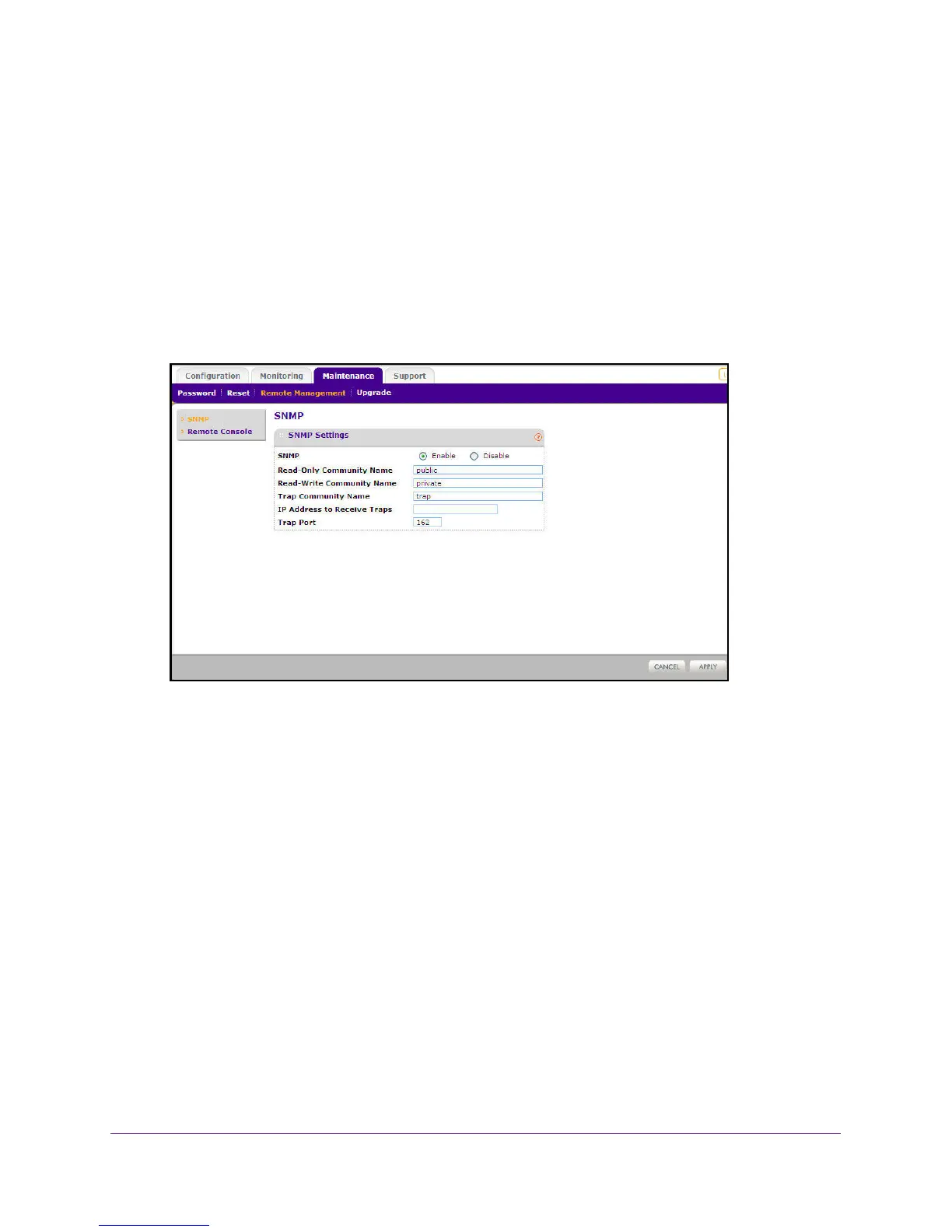

Figure 27. Configure SNMP settings
2. Enter the following information in the SNMP fields:
• SNMP. Enable SNMP to allow the SNMP network management software, such as HP
OpenView, to manage the wireless access point via SNMPv1/v2 protocol.
• Read-Only Community Name. The community string to allow the SNMP manager to
read the wireless access point's MIB objects. The default is Public.
• Read-Write Community Name. The community string to allow the SNMP manager
to read and write the wireless access point's MIB objects. The default is Private.
• Trap Community Name. The community string to allow the SNMP manager to send
traps. The default is trap.
• IP address to Receive Traps. The IP address of the SNMP manager to receive traps
sent from the wireless access point.
• Trap Port. The port number on which the SNMP Manager will receive traps. The
default is 162/UDP.
