ProSAFE Dual Band Wireless N Access Point WNDAP350
Rear Panel
Figure 2.

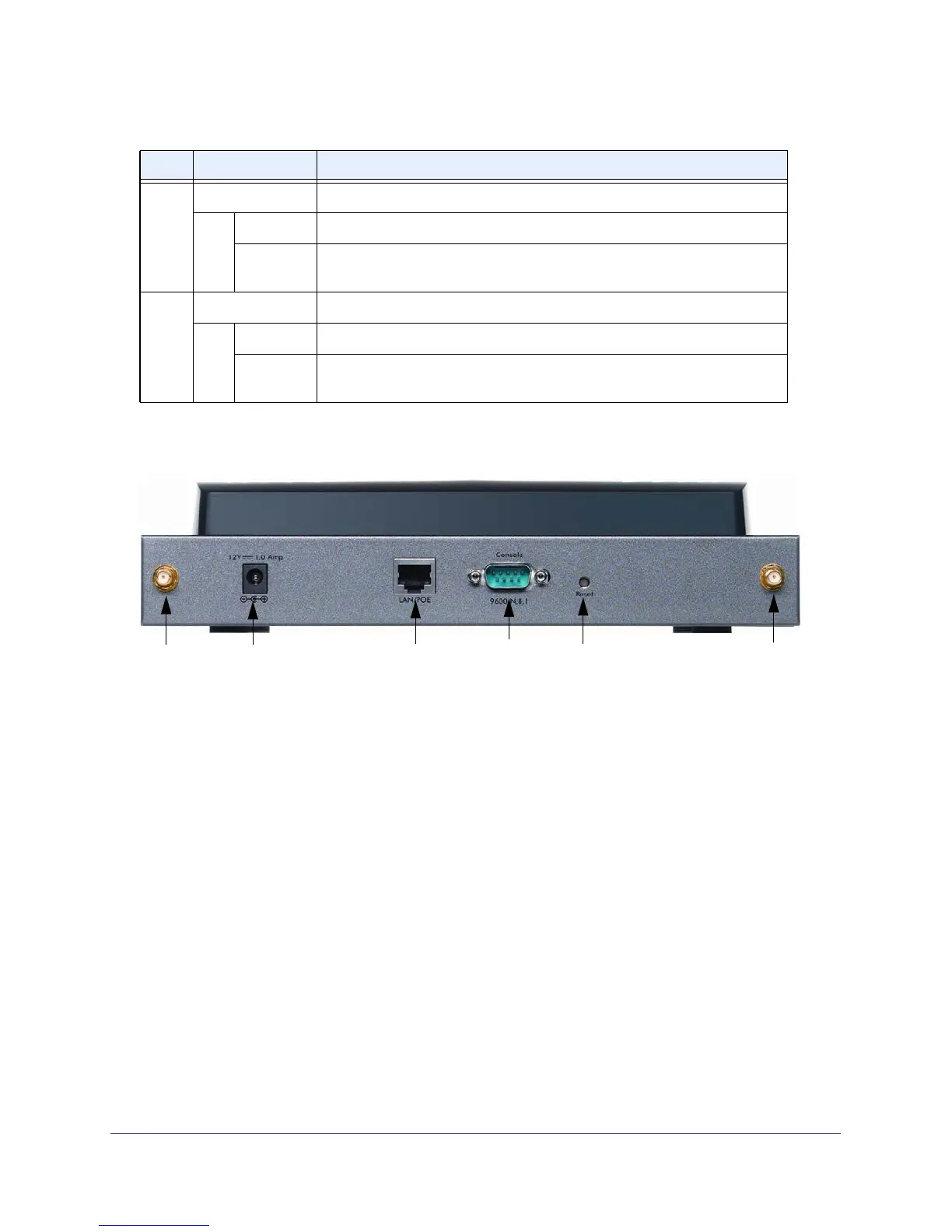

The WNDAP350 rear panel functions are described below:
1. Left and Right Detachable Antennas. The WNDAP350 provides two detachable dipole
antennas.
2. Power Socket. This socket connects to the WNDAP350 12V 1.2A power adapter.
3. RJ-45 Ethernet Port. Use the WNDAP350 Ethernet RJ-45 port to connect to an Ethernet
LAN through a device such as a hub, switch, router, or PoE switch.
4. Serial Console Port. Male
DB-9 serial port for serial DTE connections.
5. Restore to Factory Defaults Button. The restore to default button restores the
WNDAP350 to the factory default settings.
4 802.11na WLAN Wireless LAN Link Activity Indicator (5 GHz)
Off Indicates WLAN 802.11n/a (5GHz) mode is disabled.
Blink
(Green)
Indicates Wireless data traffic in 5GHz modes.
5 802.11ng WLAN Wireless LAN Link Activity Indicator (5 GHz)
Off Indicates WLAN 802.11b/g (5GHz) mode is disabled.
Blink
(Green)
Indicates Wireless data traffic in 2.4GHz modes.
Table 1. Front Panel LED Indicators (continued)
Item LED DESCRIPTION
1
34
5
12
