Advanced Configuration
69
ProSAFE Dual Band Wireless N Access Point WNDAP350
• Gateway Address. The Access Point will assign this IP address as the default
gateway for any traffic beyond the local network.
• Primary DNS Server. The Access Point will assign this IP address as the primary
Domain Name Server used by the connected wireless stations.
• Secondary DNS Server. The Access Point will assign this IP address as the
secondary Domain Name Server used by the connected wireless stations.
• Primary WINS Server. The Access Point will assign this IP address as the primary
WINS Server used by the connected wireless stations.
• Secondary WINS Server. The Access Point will assign this IP address as the
secondary WINS Server used by the connected wireless stations.
• Lease. The lease time for the IP address assigned. The wireless client user is
required to renew the IP address as soon as the lease is expired.
4. Click Apply to save your settings.
Hotspot Settings
If you want the wireless access point to capture and redirect the first HTTP (TCP, port 80)
request, use this feature to capture and redirect the HTTP request to the specified URL. For
example, a hotel might want all wireless connections to go to its server to start a billing
transaction.
To set up a Hotspot server:
1. From the main menu under Configuration, select System, then select Advanced.
2. From the sidebar, select Hotspot. The Hotspot screen displays, as shown in Figure 45,
Hotspot settings.

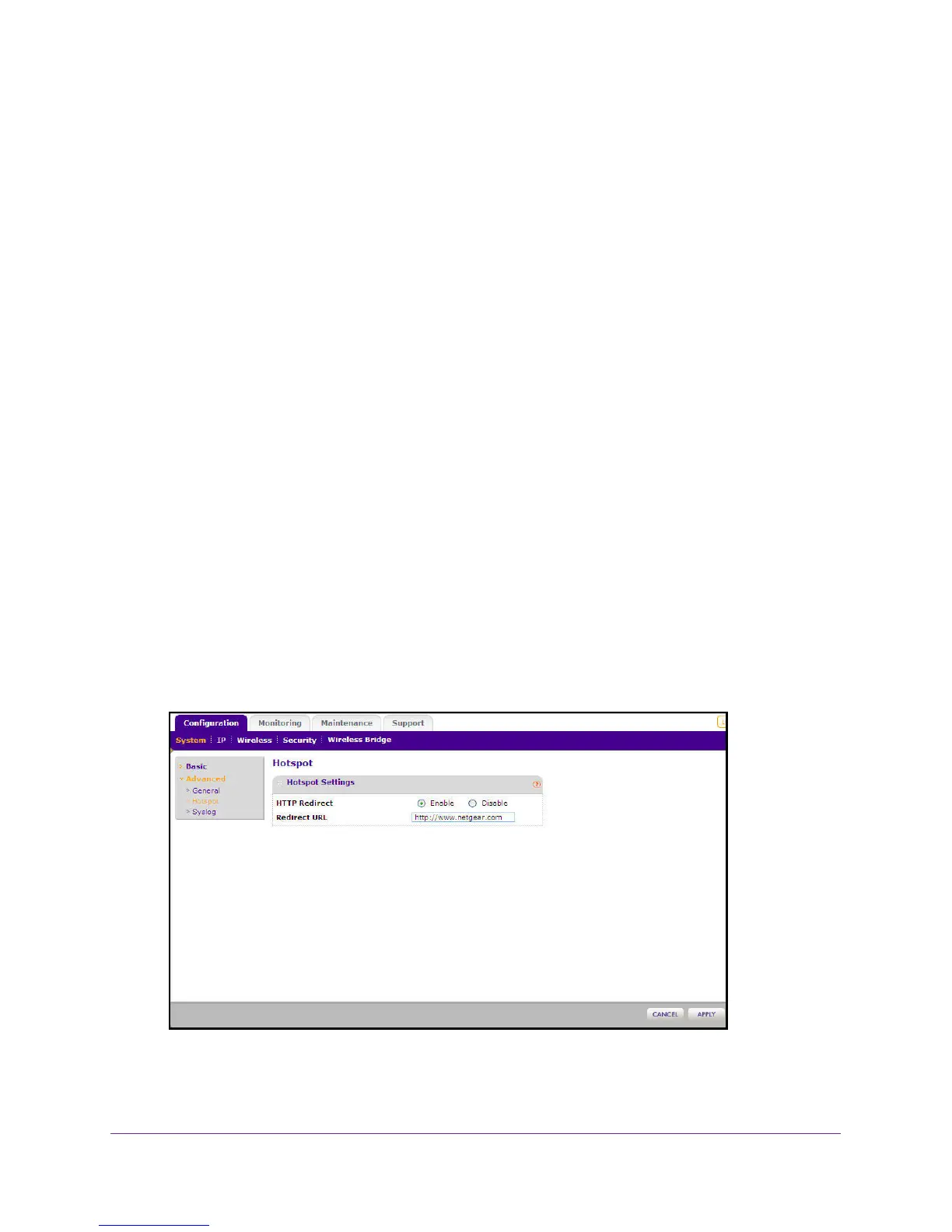

Figure 45. Hotspot settings
