6.9 Electric system
Fuse box
Relays
The relays are located in the relay box under the the floor panel of the control stand
Electric system
Alternator 12 V 55 A
Starter 12 V 2.3 kW
Battery 12 V 100 Ah

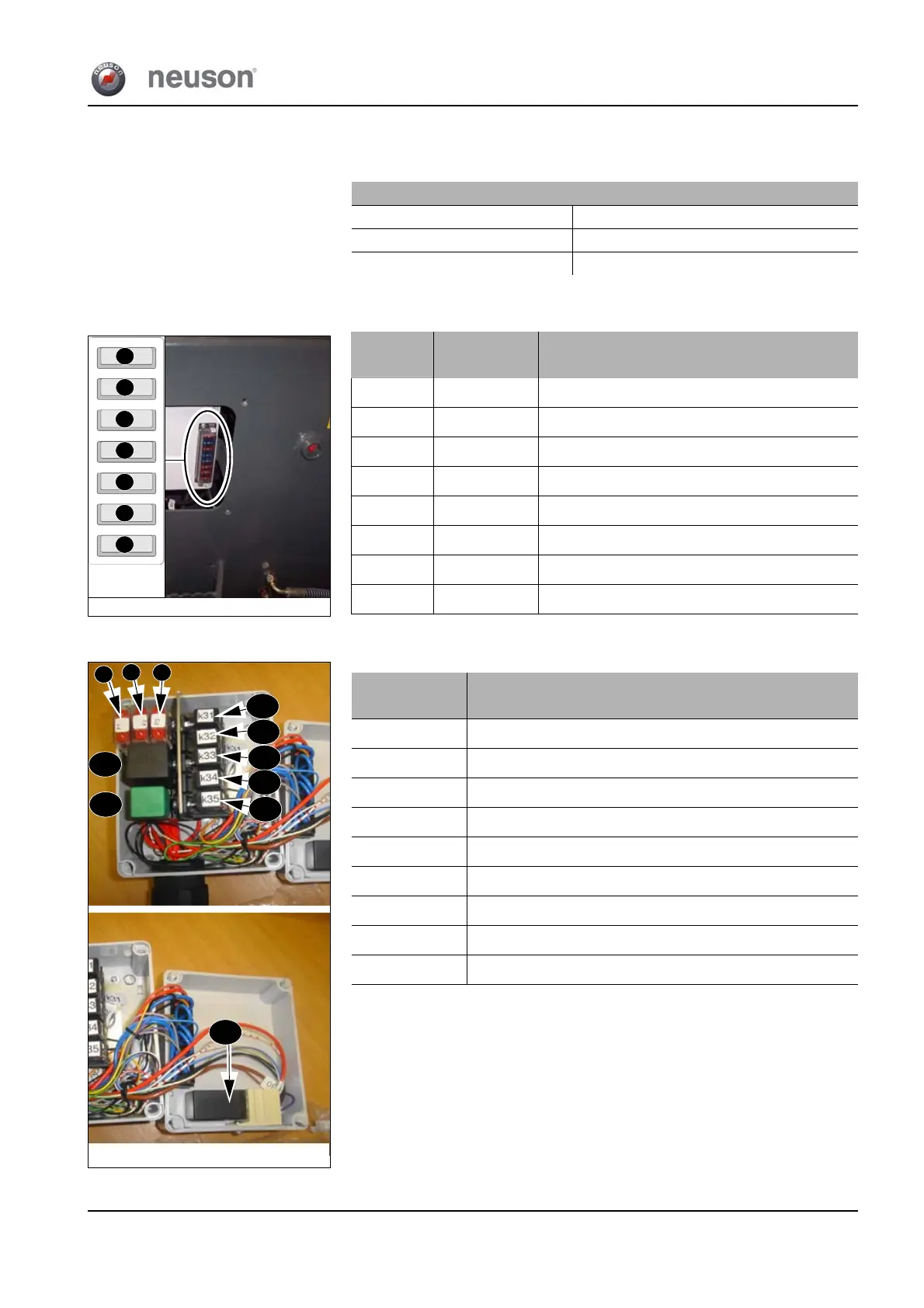

Fig. 39: Fuse box
F10
F9
F8
F7
F6
F5
F4
Fuse
Rated current
(A)
Protected circuit
F 4 10 A – Preheating
F 5 15 A – Drive solenoid valves
F 6 10 A – Horn, brake lights
F 7 15 A – Turn indicators
F 8 15 A – High beam
F 9 10 A – Low beam
F 10 10 A – Clearance light
F 11 10 A – Hazard warning system
K 10
K 29
K 31
K 33
K 32
K 35
Fig. 40: Relays
K 30
F2
F1
F3
K 34
Switching relay
no.
Protected circuit
F 1, F2, F3 – Main fuses (50 A)
K 10 – Turn indicator relay
K 29 – Preheating relay
K 30 – Deutz preheating time relay
K 31 – Low beam relay
K 32 – Preheating telltale relay
K 33 – High beam relay
K 34 – Parking brake telltale relay
K 35 – Start interlock relay
