3.20 Swivel skip operation
Caution!
Driving with a dumped-out skip is prohibited!
Material that sticks in the skip may be dumped out only to the front in the
straight-ahead position of the dumper.
The working speed of the skip is set with the travel of the control lever and with
the accelerator pedal.
When dumping material into a pit, a firm resistance (beam) is required for
propping the front wheels!
☞ Never drive up to a pit only with the brakes!
Lowering the skip too rapidly and knocking it against the chassis can cause
damage and the dumper to tip over!
Set the skip to the required position before dumping out the skip.
Swivelling the skip:
Before swivelling the skip, press the lever forwards to raise it until lock cog T is raised from
lock recess K.
The skip can then be swivelled.
Normal position of the skip is the position in which the skip is in centre position and in
which lock cog T engages in lock recess K.
A
B
C
D
T
K
T
K

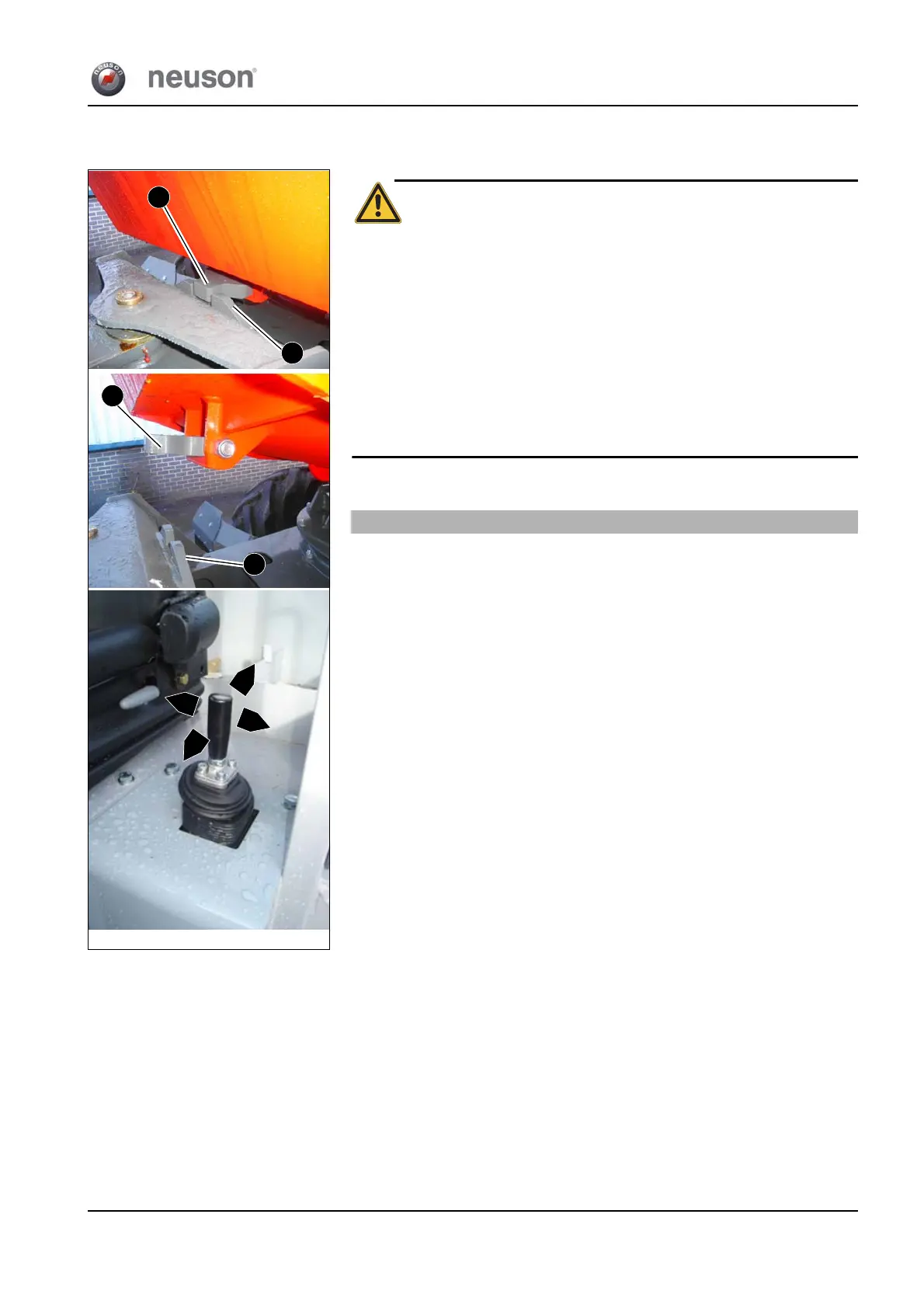

Fig. 35: Swivel skip operation
Position Lever Function
A
☞ Lever forwards ➥ Dumping out the skip
B ☞ Lever pulled backwards ➥ Lower the skip
C ☞ Lever to the left ➥ Skip swivels to the left
D ☞ Lever to the right ➥ Skip swivels to the right
