Operation

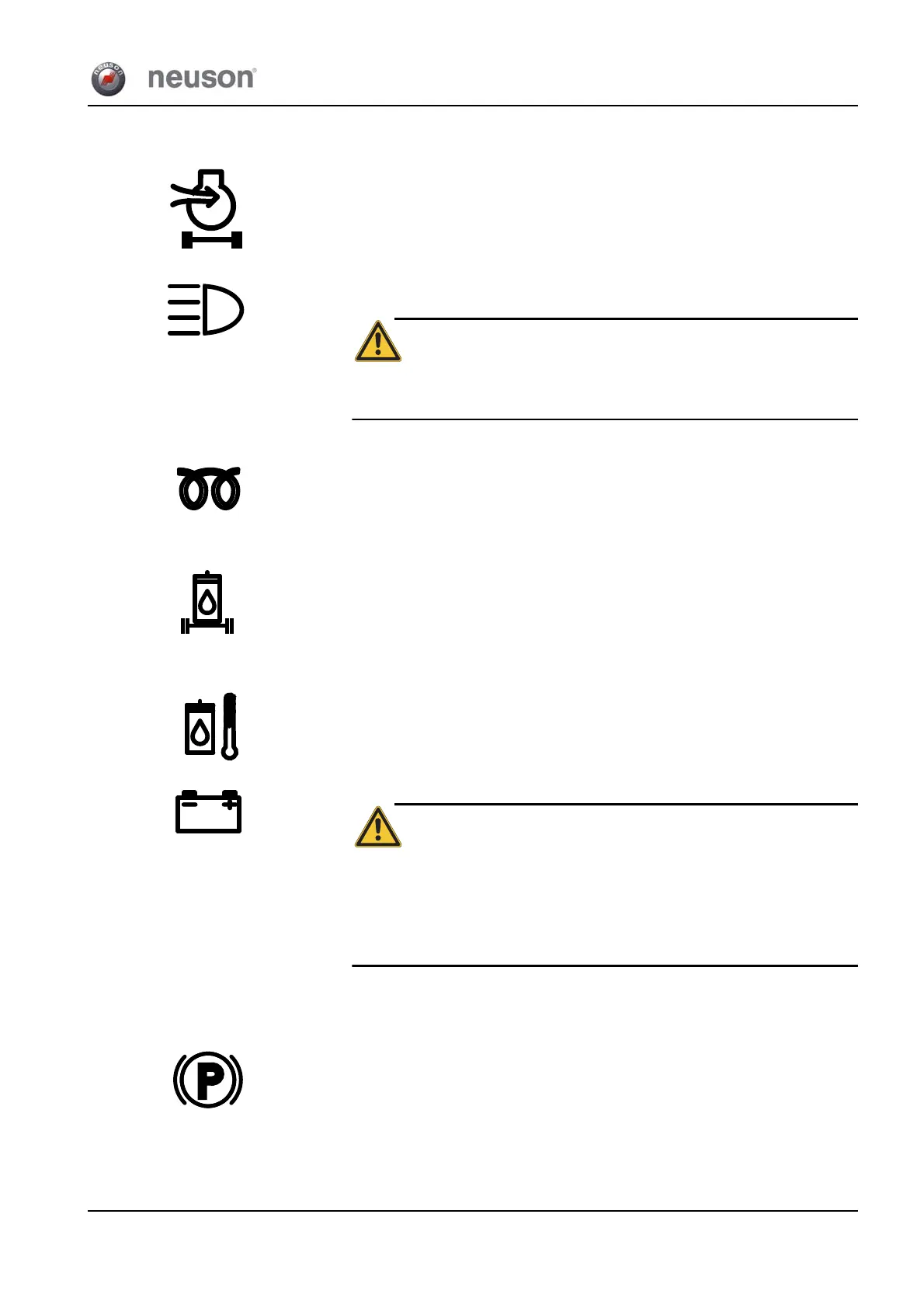

Telltales and warning lights: overview
1 Not assigned
2 High beam telltale (blue)
Comes on if high beam is on.
Make sure no other road users are dazzled during road travel!
☞ Switch on low beam
3 Preheating telltale (yellow)
Comes on if the key in the preheating start switch is in position 2.
A glow plug preheats the air in the combustion chamber of the engine when the key is in
this position.
The telltale goes out as soon as preheating temperature is reached (15 – 20 sec)
4 Telltale (red) – hydraulic oil filter
Indicates inadmissibly high pressure in the hydraulic reflux line to the tank. In this case:
☞ Have the hydraulic oil reflux filter checked and, if necessary, replaced by an authorised
workshop
☞ The telltale can come on briefly if the hydraulic oil is cold, but goes out again once
operating temperature is reached.
5 Converter oil temperature telltale (red)
Indicates inadmissibly high torque converter temperature.
This telltale is not assigned on 6001 dumpers with serial numbers AD ...
6 Telltale (red) – alternator charge function
The coolant pump no longer runs if the V-belt is faulty. Danger of engine
overheating or breakdown!
If telltale comes on with the engine running:
☞ Switch off the engine immediately and
☞ Have the cause repaired by an authorised workshop
The V-belt or the charging circuit of the alternator is faulty if the telltale comes on with the
engine running. The battery is no longer charged.
7 Parking brake telltale (red)
Comes on if the parking brake is applied!
In this case:
☞ Actuate lever 18 to release the parking brake
