Neuson 6001 - Maintenance Prop; Front Skip Maintenance Prop; Swivel Skip Maintenance Prop

5-2 BA 6001/9001/10001 En – Edition 2.0 * * 6001b510.fm
Maintenance
5.2 Maintenance prop
Front skip maintenance prop
Danger!
Danger!
Fold down the red maintenance prop before you carry out maintenance work
with the skip raised.
Procedure to follow:
☞ Raise the skip
☞ Remove split pin A out of lock pin B
☞ Pull out lock pin B
☞ Hold maintenance prop C as you do so
☞ Fold down maintenance prop C
Caution!
Stay clear of the danger area under the skip!
☞ The skip must be lowered a little.
☞ Lower the skip until maintenance prop C fits into bracket D.
☞ Fasten maintenance prop C in bracket D with lock pin B
☞ Insert split pin A in lock pin B
Swivel skip maintenance prop
Danger!
Danger!
Mount the red maintenance prop before you carry out maintenance work with
the skip raised.
Procedure to follow:
☞ Raise the skip
☞ Remove split pin A out of lock pin B
☞ Fold down maintenance prop C
☞ Lower the skip until maintenance prop C rests on the swivelling console
Important!
Fasten maintenance prop C on the skip again (in the reverse order) once
maintenance work is over.

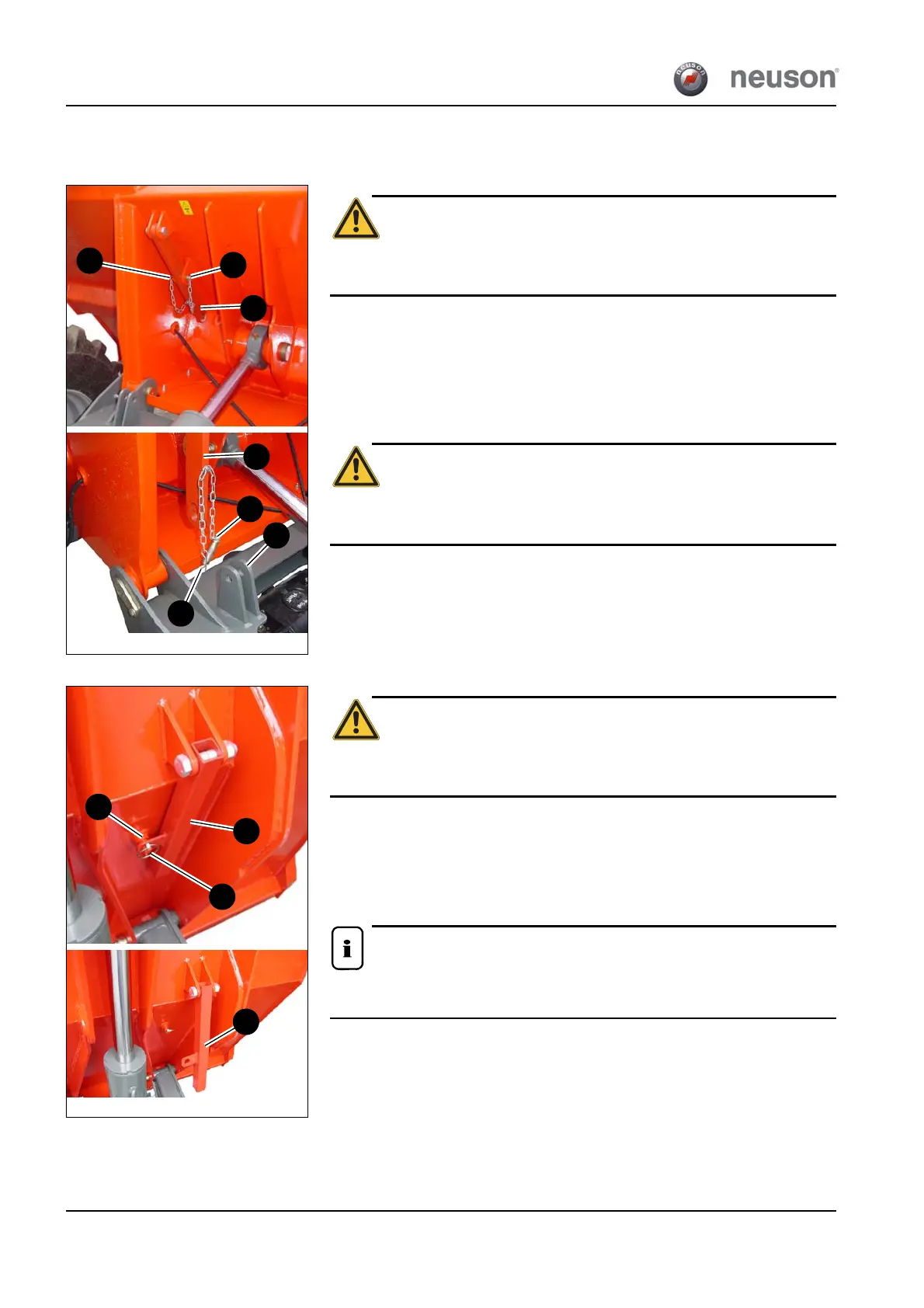

Fig. 12: Front skip maintenance prop
C
B
A
D
C
B
A
Fig. 13: Swivel skip maintenance prop
C
B
A
C
