3-38 BA 6001/9001/10001 En – Edition 2.0 * * 6001b330.fm
Operation

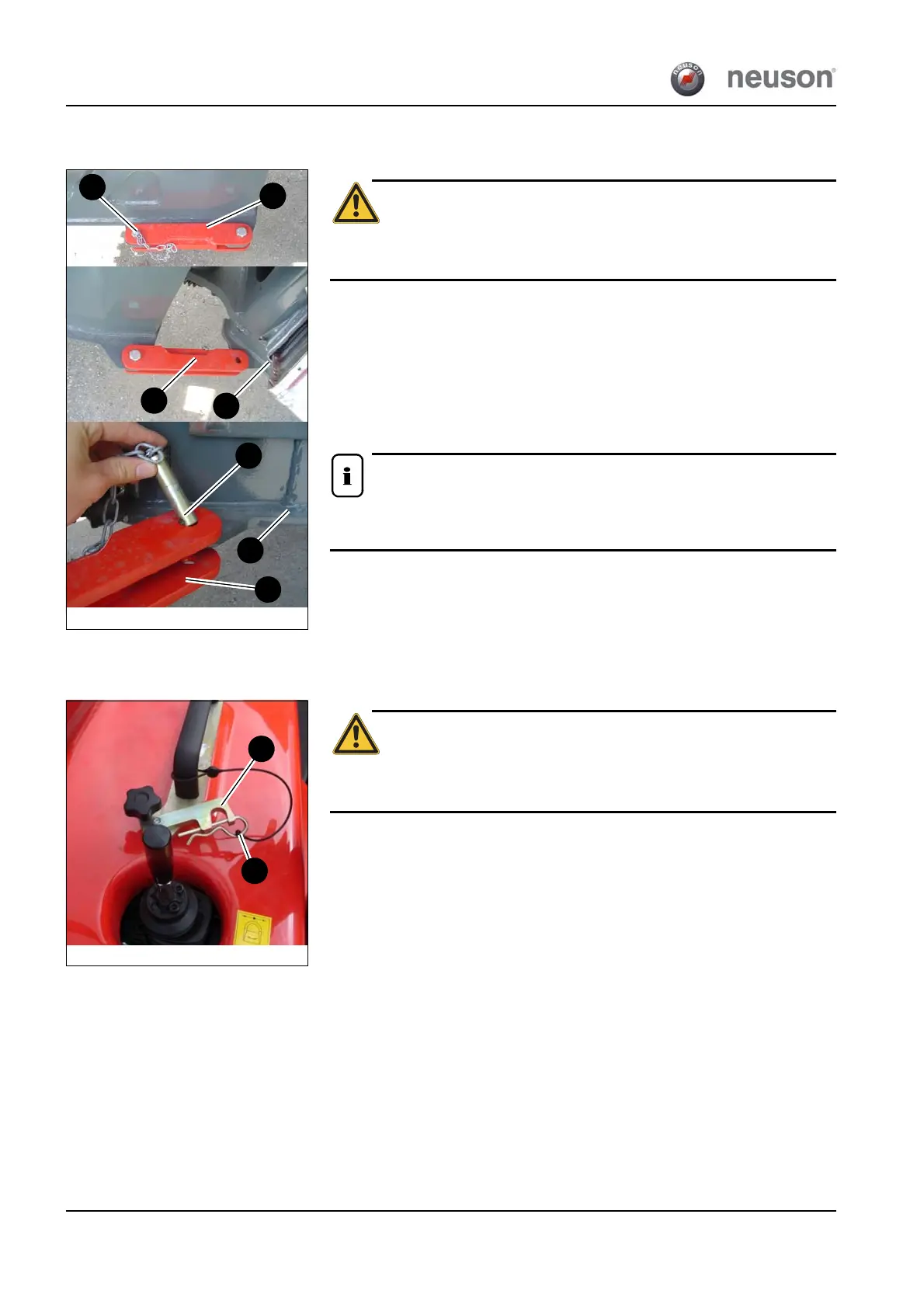

3.8 Centre pivot prop
Secure the steering ram with the red centre pivot prop when crane handling
the machine.
The centre pivot prop secures the steering ram to prevent steering movements (via the
articulated joint) when crane handling the dumper.
Procedure to follow:
☞ Remove the spring plug from pin B
☞ Rotate centre pivot prop A towards rear chassis C
☞ Secure centre pivot prop A with the spring plug on pin B
Before putting the machine into operation again, mount the centre pivot prop back
onto the front chassis again by means of pin B.
3.9 Locking the control lever (machines without cab)
Lock the control lever for the skip during road travel!
☞ This avoids unintentional actuation of the skip.
Lock as follows:
☞ Remove split pin A from lock B
☞ Fold lock B to the front
☞ Insert split pin A in lock B
Unlock in the reverse order!
A
C
B
A
C
Fig. 6: Centre pivot prop
A
B
Fig. 7: Locking the control lever
A
B
