Operation
Do not lock the engine cover during machine operation!
The emergency switch is located underneath the engine cover!
3.6 Rollbar
The rollbar is very heavy, folding it up or down is very
Dangerous!
☞ Two persons are required for raising or lowering the rollbar!
Do not fasten the seat belt when driving with the rollbar lowered!

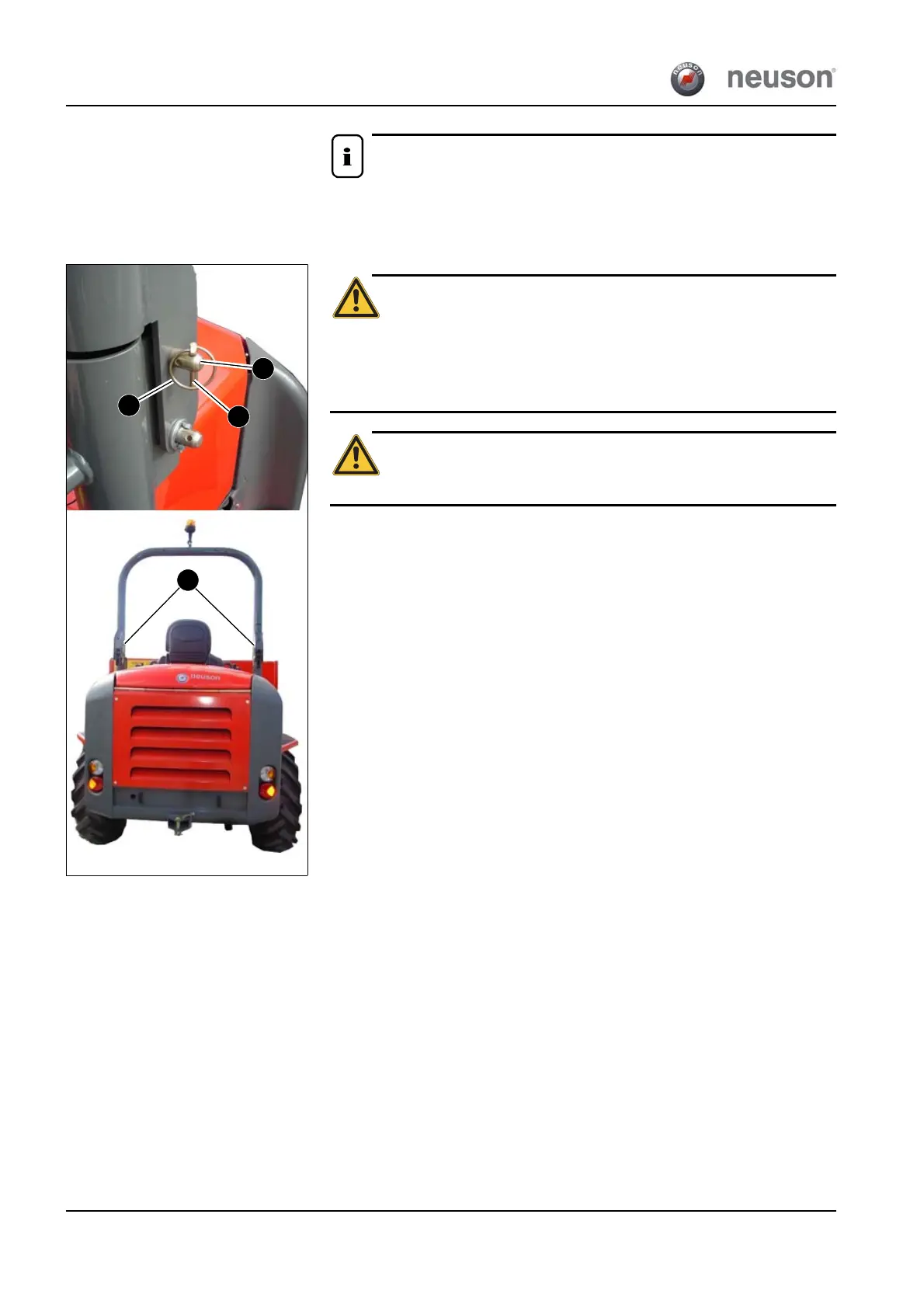

Folding up the rollbar:
☞ Place the machine on level ground
☞ Raise the rollbar
☞ Secure the rollbar with lock pins A
☞ Secure lock pins A with split pins B
☞ Fold down ring C
➥ Split pin B cannot fall out
Lowering the rollbar:
☞ Place the machine on level ground
☞ Fold up ring C
☞ Remove split pins B from lock pins A
☞ Remove lock pins A
☞ Slowly and carefully lower the rollbar with the help of a second person
