Neuson 6001 - Engine Cover (Machines Without Cab)

3-42 BA 6001/9001/10001 En – Edition 2.0 * * 6001b330.fm
Operation
3.5 Engine cover (machines without cab)
Opening:
☞ Stop the machine
☞ Let the engine cool down
☞ Press buckle A of the engine cover downwards and pull shackle C to the front
☞ Pull the engine cover upwards with handles B until the red safety prop S locks into
place
Closing:
☞ Press safety prop S to the rear
☞ Press down the engine cover
☞ Press buckle A forwards and hitch shackle C into the hook at the same time
☞ Press lock A to the rear
Locking and unlocking:
The engine cover can be locked with an external lock in eyelet D

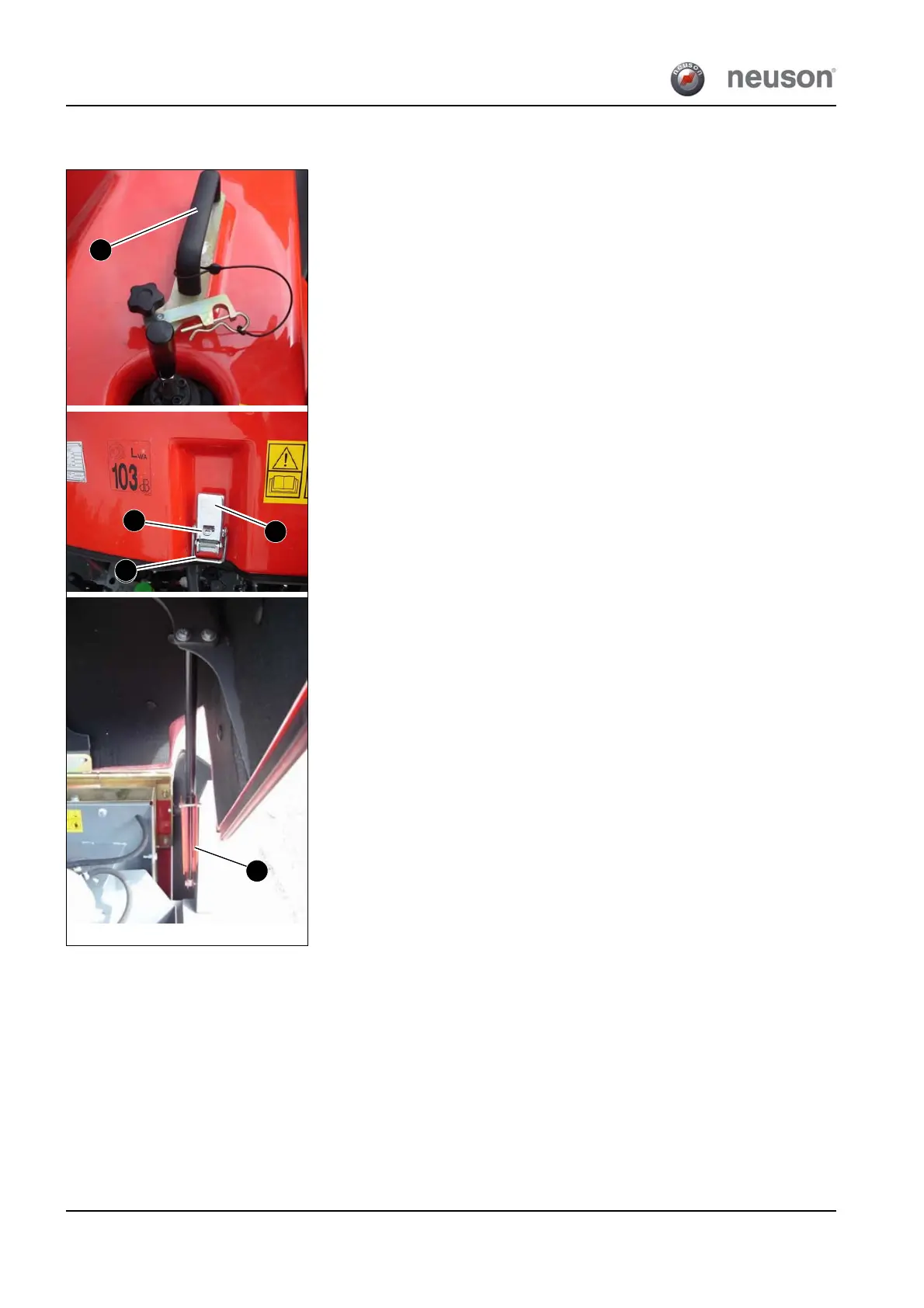

Fig. 3: Engine cover lock
