Maintenance
Filling up gearbox oil
Too much or incorrect gearbox oil can result in increased viscosity and
gearbox damage! For this reason:
☞ Do not add gearbox oil above the MAX mark of oil dipstick A
☞ Use only the specified gearbox oil
Use a suitable container to collect the gearbox oil as it drains and dispose of it in an
environmentally friendly manner!
☞ Proceed as follows:
• Open servicing lid B (cab option)
• Clean the area around oil dipstick A with a lint-free cloth
• Pull out oil dipstick A
• Fill in gearbox oil
• Wait about 3 minutes until all the oil has run into the oil sump
• Check the oil level
• Fill up if necessary and check the oil level again
• Push oil dipstick A back in as far as possible
• Completely remove all oil spills from the engine compartment
• Close servicing lid B (cab option)
OIL
A

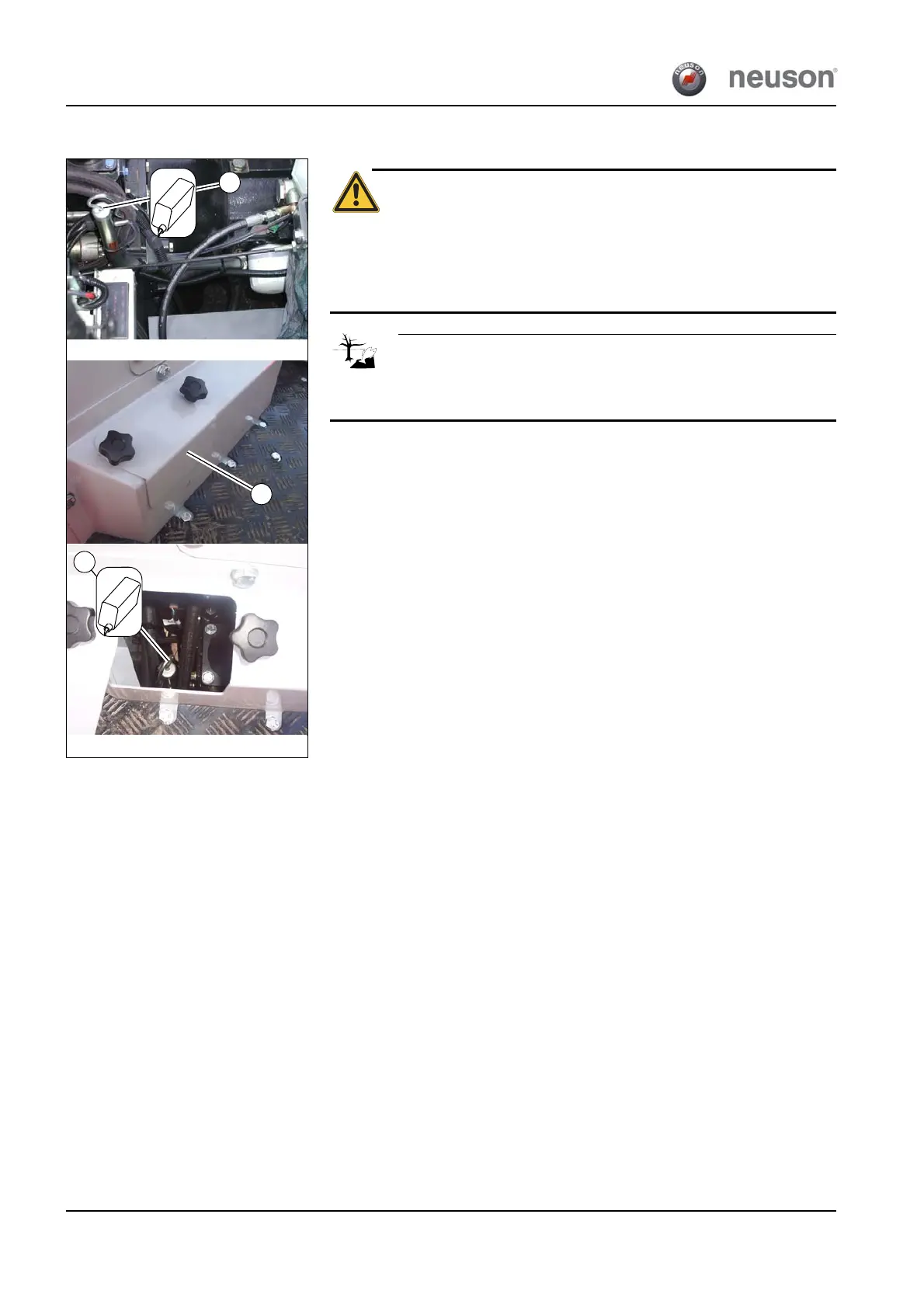

Fig. 32: Oil dipstick and filler cap (machines with cab)
Fig. 32: Oil dipstick and filler cap (machines without cab)
B
OIL
A
