Neuson 6001 - Dumpers with Cab (Option) for 6001;9001 Machines with Serial Numbers AB

BA 6001/9001/10001 En – Edition 2.0 * 6001b320.fm 3-7
Operation
Dumpers with cab (option) for 6001/9001 machines with serial numbers AB ..., and 10001 machines with serial numbers
AA ...
HOURS
GRE
UNIDECK
0
1/2
4/4
UNIDECK
0
III
II
I
14
4
5
13
9
7
8
6
17
18
19
1211
2
1
3
10
15
16

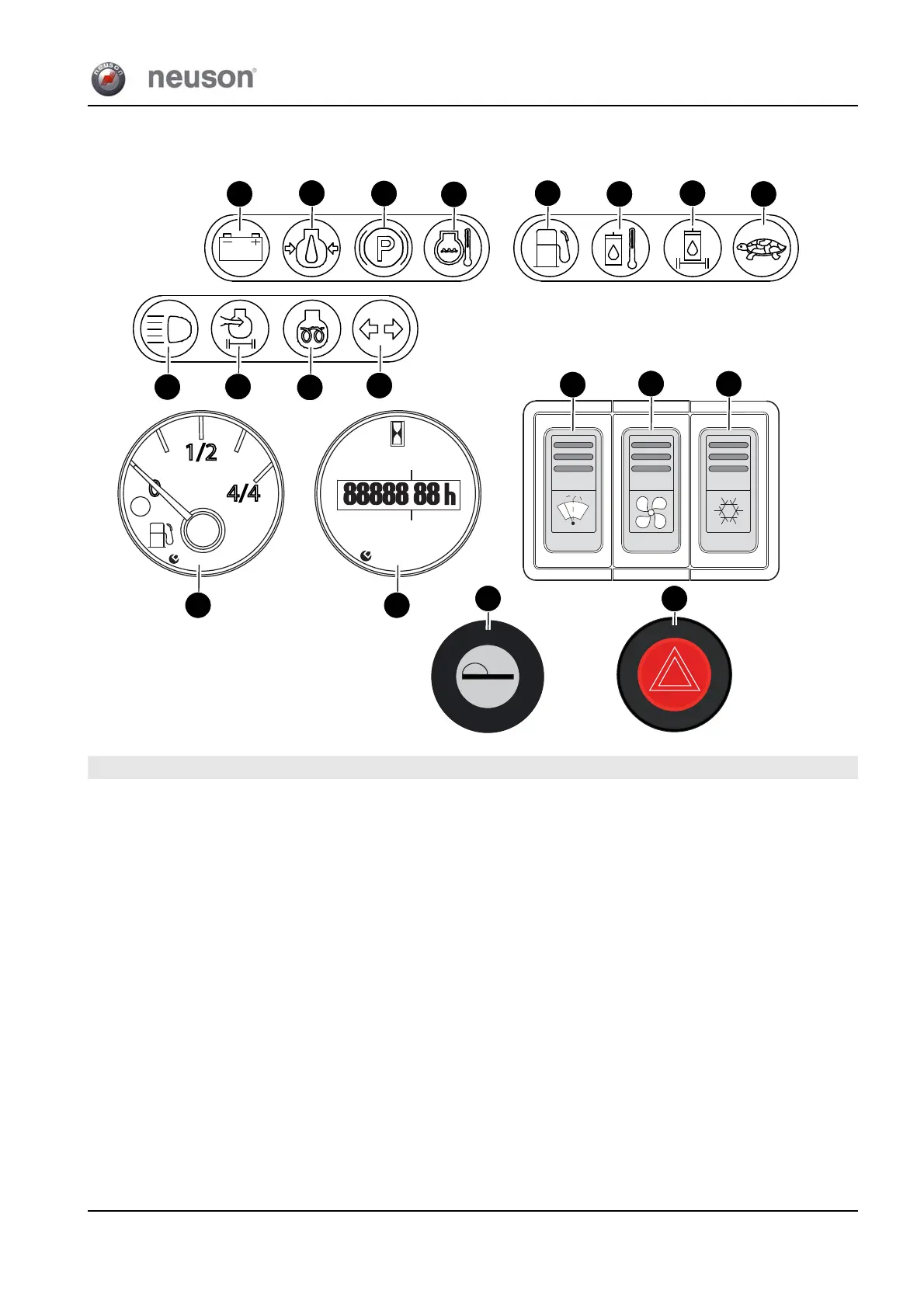

Pos.
Description
1 Telltale (red) – air filter
2 High beam telltale (blue)
3 Preheating telltale (yellow)
4 Telltale (red) – hydraulic oil filter
5 Converter oil temperature telltale (red)
6 Telltale (red) – alternator charge function
7 Parking brake telltale (red)
8 Telltale (red) – engine oil pressure
9 Telltale (red) – coolant temperature
10 Turn indicator telltale (green)
11 Fuel gauge
12 Hour meter
13 Low fuel level telltale (red)
14 Low speed (turtle) telltale (red)
15 Ignition lock
16 Hazard warning switch
17 Wiper switch
18 Fan switch
19 Air conditioning switch (option)
