3.7 Towing
The dumper is equipped with towing gear at the rear and a towing lug at the
front. Only this equipment may be used for towing.
Open the high-pressure circuit before towing the machine!
Opening the high-pressure circuit
There are two HP pressure limiting valves on the pump under the floor panel, one on the
upper left and the other on lower left.
Proceed as follows:
☞ Slacken locknut w/f 14 (part 2) and unscrew it to the end of the screw
☞ Screw in the screw with allen key w/f 4 (part 1) until you can feel a firmer resistance.
☞ Then screw in a further half revolution
Screwing in any further damages the valve!
☞ Retighten the locknut
☞ You can now slowly tow the machine (max. 1 kph) over a short distance (max. 1 km)
☞ Then put the valves back into operation again! Proceed in the reverse order to do this
(unscrew the screw as far as it will go).
2
1

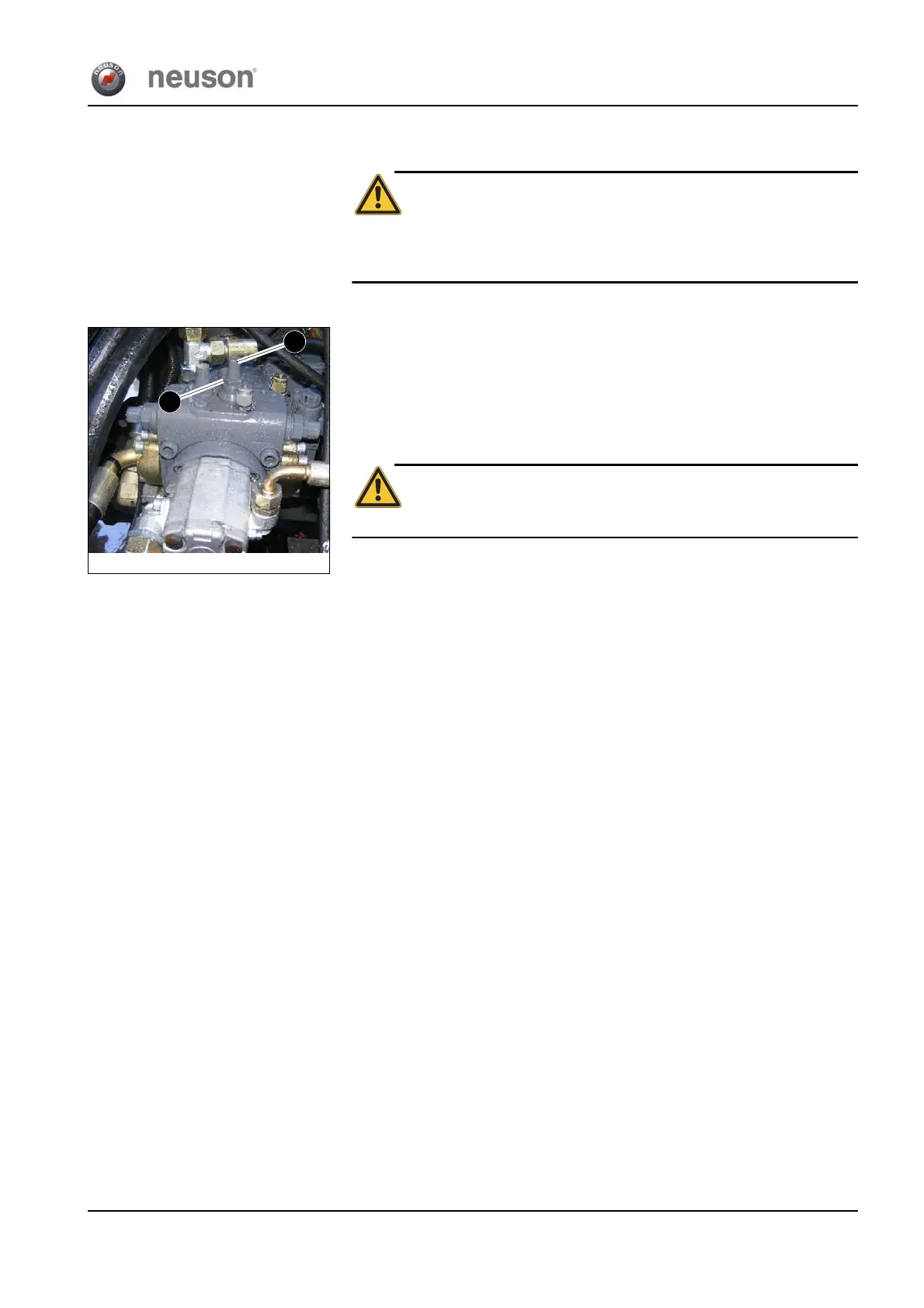

Fig. 5: Opening the high-pressure circuit
