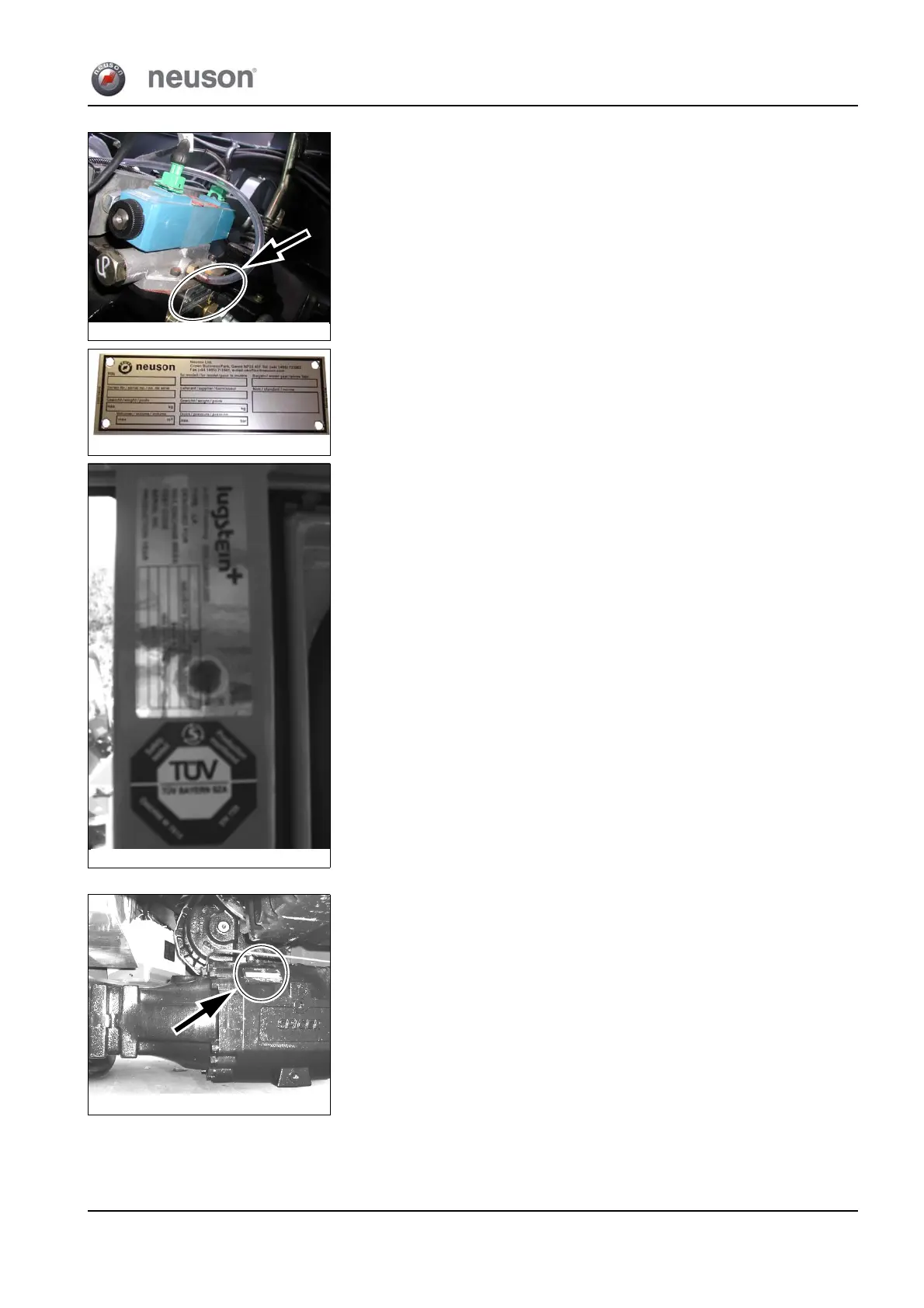

BA 6001/9001/10001 En – Edition 2.0 * 6001b110.fm 1-5
Introduction
Type label of torque converter gearbox
The type label is located on the mounting base of the forwards/reverse drive changeover
valve.
Rollbar type label
The type label is located on the right on the rollbar
Cab (option) type label
The type label is located in the cab on the left on the cab frame
Axle type label
The type label (arrow) is located on the upper side of the axle housing.
Fig. 1: Type label of torque converter gearbox
Fig. 2: Rollbar type label
Fig. 3: Cab (option) type label
Fig. 4: Axle type label
