Introduction
Meaning
Indicates that persons other than the driver must keep a safe distance to the machine
during operation!
Position (6001, 9001 and 10001)
On left and right of front chassis
Meaning
Fill in diesel fuel only!
Position (6001, 9001 and 10001)
On the fuel filler inlet
Meaning
Hydraulic oil filler inlet
– see chapter Filling up hydraulic oil on page 5-19
Position (6001, 9001 and 10001)
On the filler inlet of the hydraulic oil tank
Meaning
Fold down the maintenance prop before carrying out work underneath the skip.
Position (6001, 9001 and 10001)
On the swivelling console at the front
Meaning
Shows how the skip can be dumped out.
Position (6001, 9001 and 10001)
On the engine cover

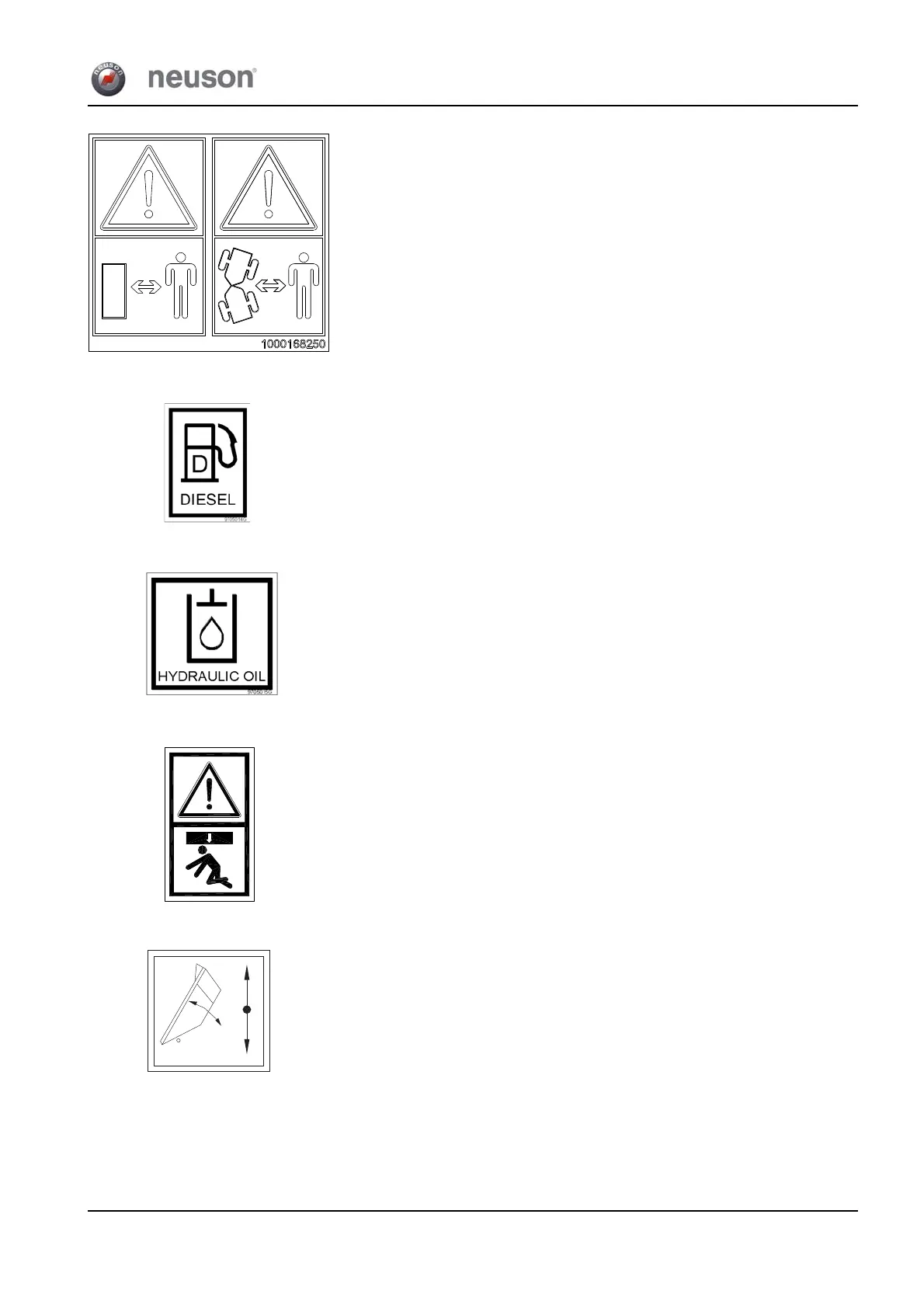

Fig. 17: Label indicating safe distances
Fig. 18: Diesel fuel label
Fig. 19: Hydraulic oil label
Fig. 20: Label: maintenance prop
Fig. 21: Label: dumping out the skip
