User Manual MX Series Voice Gateway

100 New Rock Technologies, Inc.

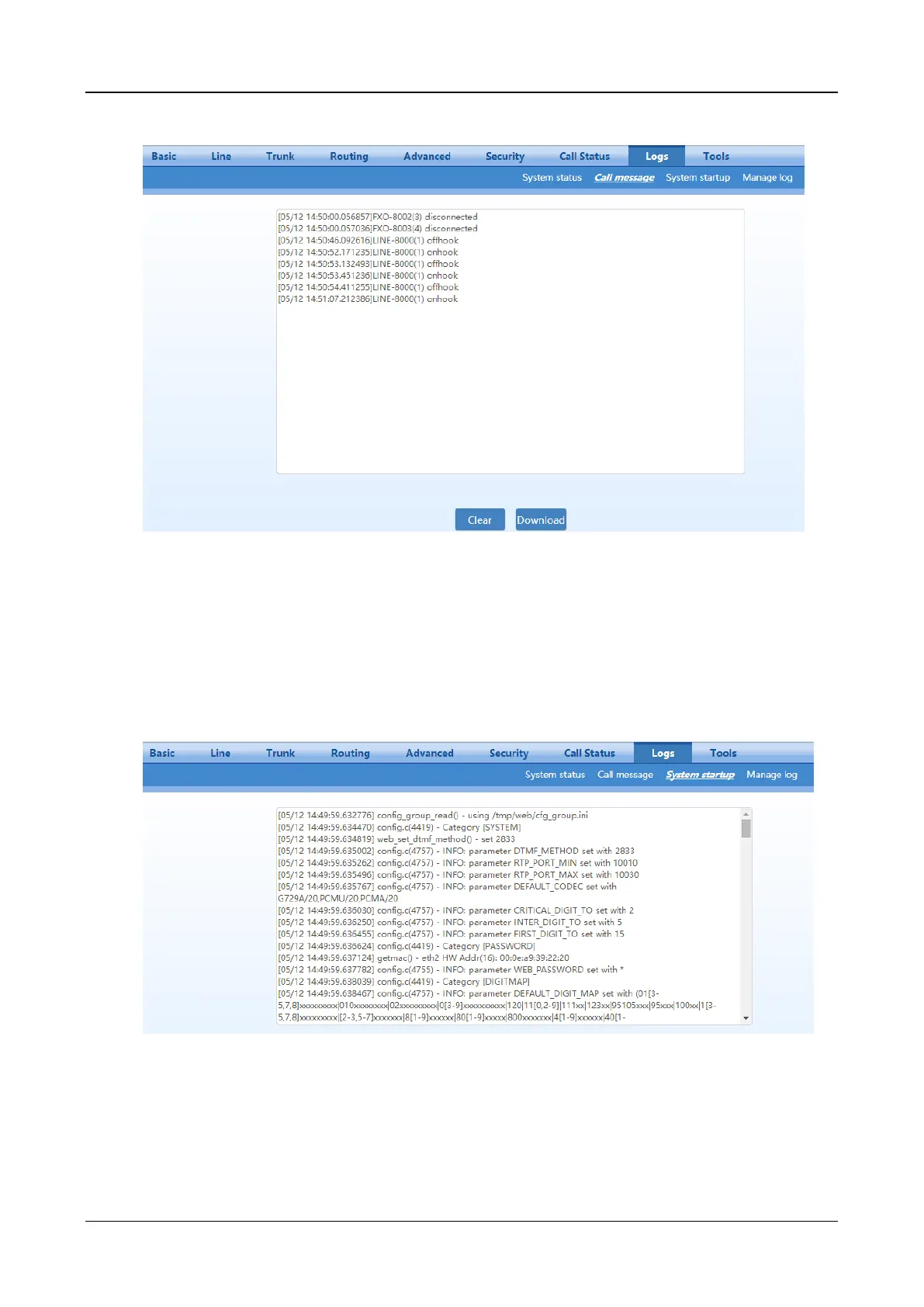

Figure 2-54 Call Message Interface

2.9.3 System Startup

After login, click Logs>System Startup to open this interface. Log files can be downloaded through this

interface.

Figure 2-55 Interface of System Startup

2.9.4 Manage Log

After login, click Logs>Manage Log to open this interface. Log files can be downloaded through this

interface.
