User Manual MX Series Voice Gateway

52 New Rock Technologies, Inc.

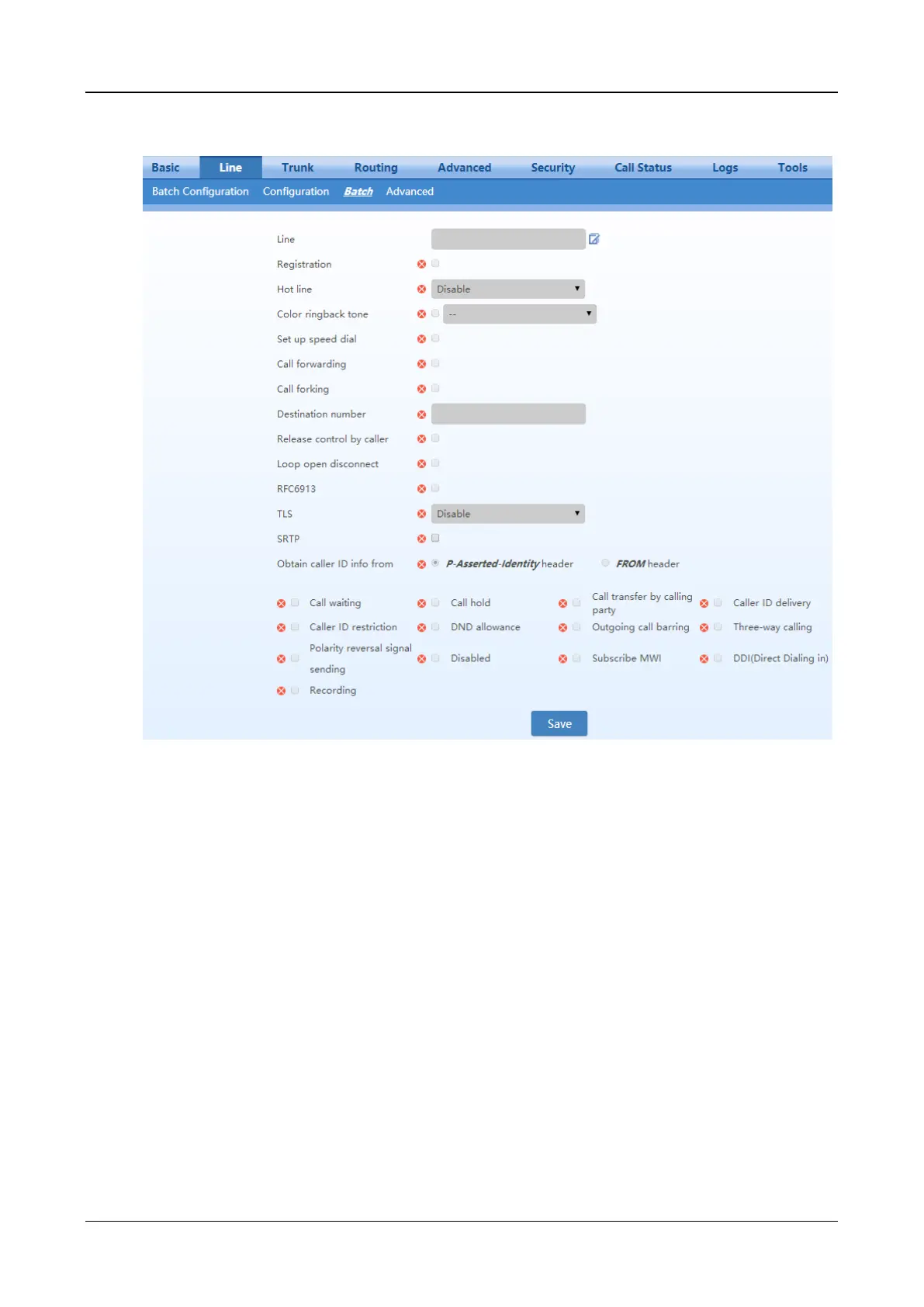

Figure 2-17 Feature Batch Configuration Interface

2.3.4 Subscriber Line Characteristics

The content below is only applicable to gateways with FXS ports.

After login, click Line > feature to open the configuration interface.
