MX Series Voice Gateway User Manual

New Rock Technologies, Inc. 125

7 Appendix: RJ45 and RJ11 Corresponding Relations

Each RJ45 socket has 8 pins leading out 4 pairs of analog telephone or trunk lines in agreement with the

pair specifications for Ethernet interfaces, whose corresponding relations can be seen in the table below.

CAT-5 cables are used to connect the interface card and distribution panel in equipment installation.

Standard RJ11 telephone lines can be used to plug in a RJ45 socket. The telephone/trunk lines are connected

to the 3

pair of pins for simple call test.

Table 7-45 Pin Specifications for RJ45 Socket Port

RJ45 Pin Number

Analog line pair

Pair

TIP1

RING1

TIP2

TIP3

RING3

RING2

TIP4

RING4

Reference color

Orange

white

Orange

Green

white

Blue

white

Green

Brown

white

Brown

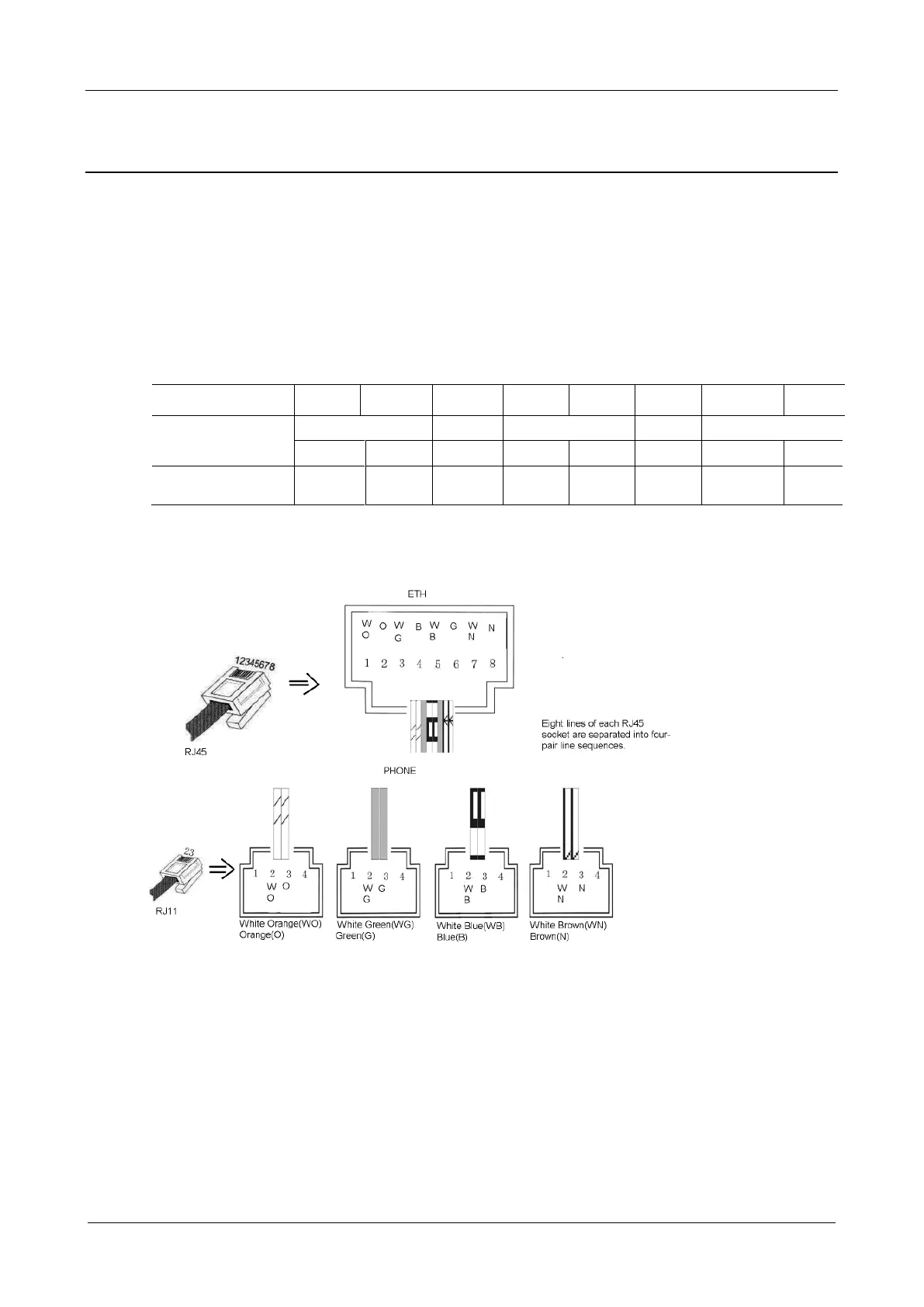

Figure 7-1 Schematic Diagram of Subscriber Line Connection
