MX Series Voice Gateway User Manual

New Rock Technologies, Inc. 111

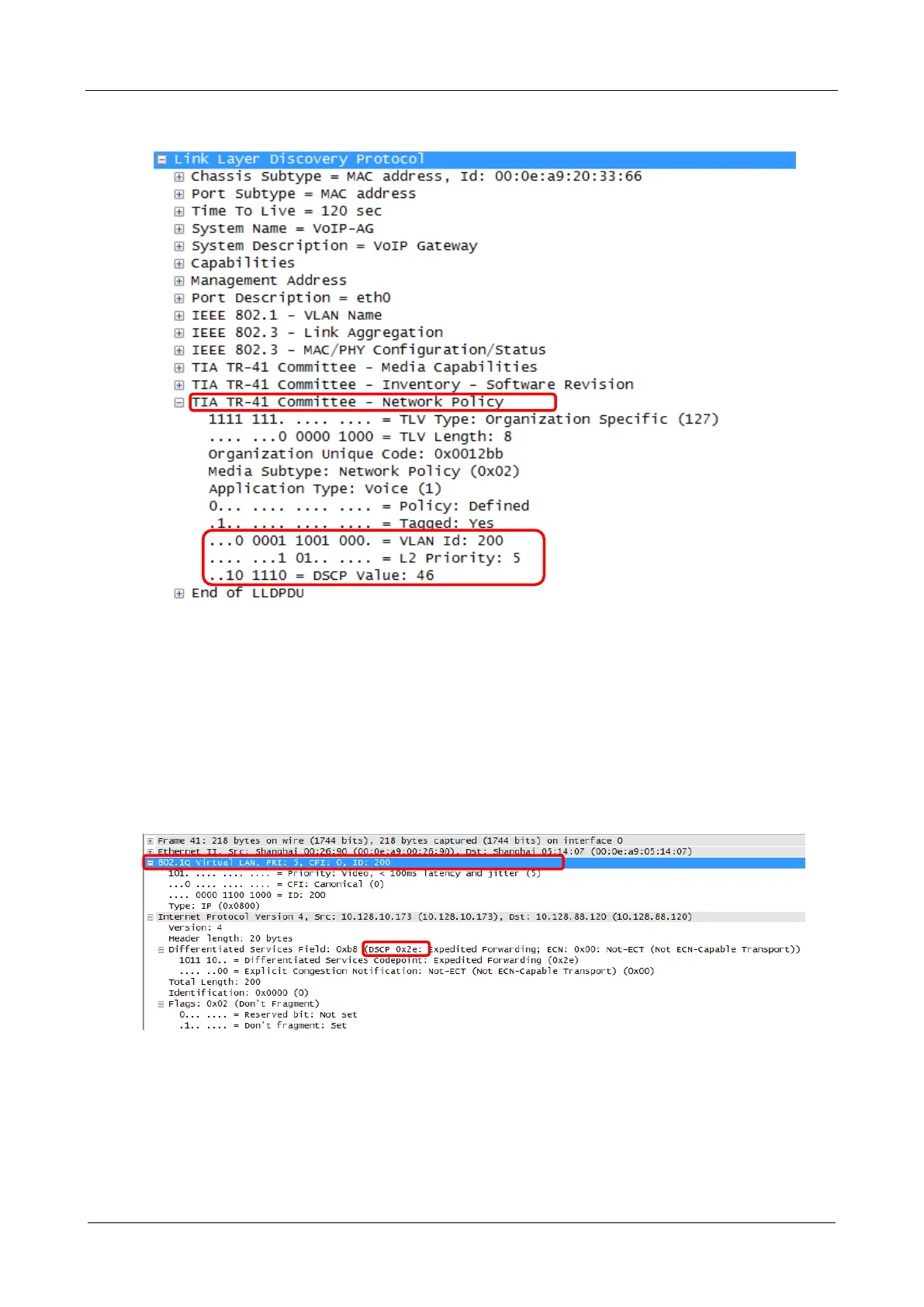

Figure 3-2 LLDP Message

 Sent Message with a VLAN ID

After obtaining a VLAN ID from the LLDP message, the device adds the VLAN information to the

Ethernet frame headers of all messages to be sent. In addition, the device adds a DSCP value to the RTP

message. Figure 3-3 shows the sent message with a VLAN ID.

Figure 3-3 Adding a VLAN ID to the Message to Be Sent

3.1.2 DHCP

The device obtains the VLAN tag and QoS using DHCP option 132 and option 133 from DHCP server. Be

ensured that DHCP option 132 and DHCP option 133 are properly configured on the DHCP server.
