User Manual MX Series Voice Gateway

114 New Rock Technologies, Inc.

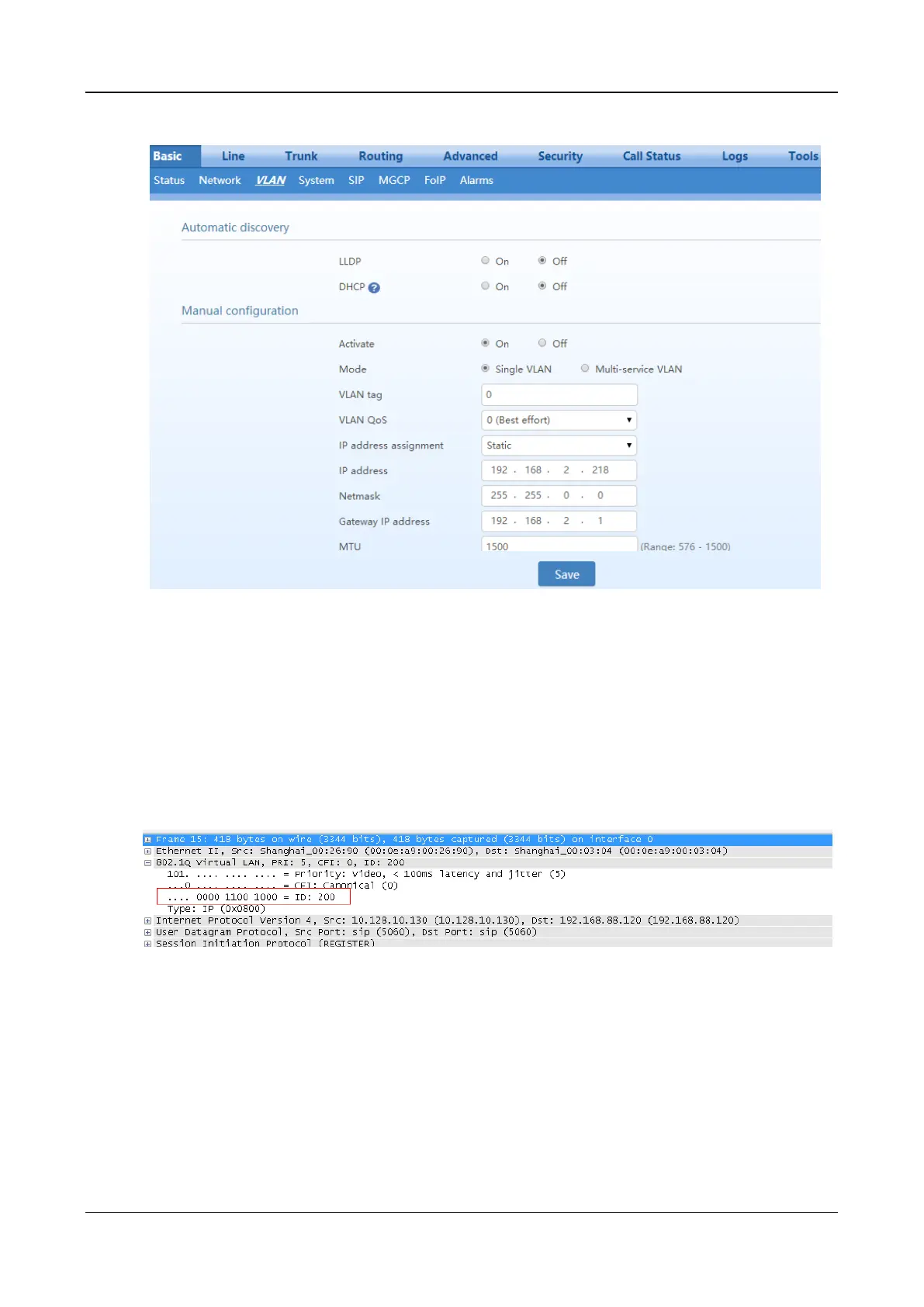

Figure 3-4 Configuring the Single VLAN

Example of Single VLAN

Configure the device to work in single VLAN mode with a corresponding VLAN tag of 200, and restart

the device. Check that all data packets sent by the device carry a VLAN ID 200, as shown in Figure 3-5.

Figure 3-5 A Data Packet Carrying a Corresponding VLAN Tag in the Single VLAN Mode

3.2.2 Multi-Service VLAN

In the multi-service VLAN mode, the device can configure a VLAN tag, a priority for the voice service

(SIP signaling and RTP/T.38 media stream), and a management service (HTTP/HTTPS, Telnet,). The

device carries a different VLAN tag in data packets for different services. In this mode, the physical

network port of the device can have a separate address or obtain an address from a non-VLAN network.
