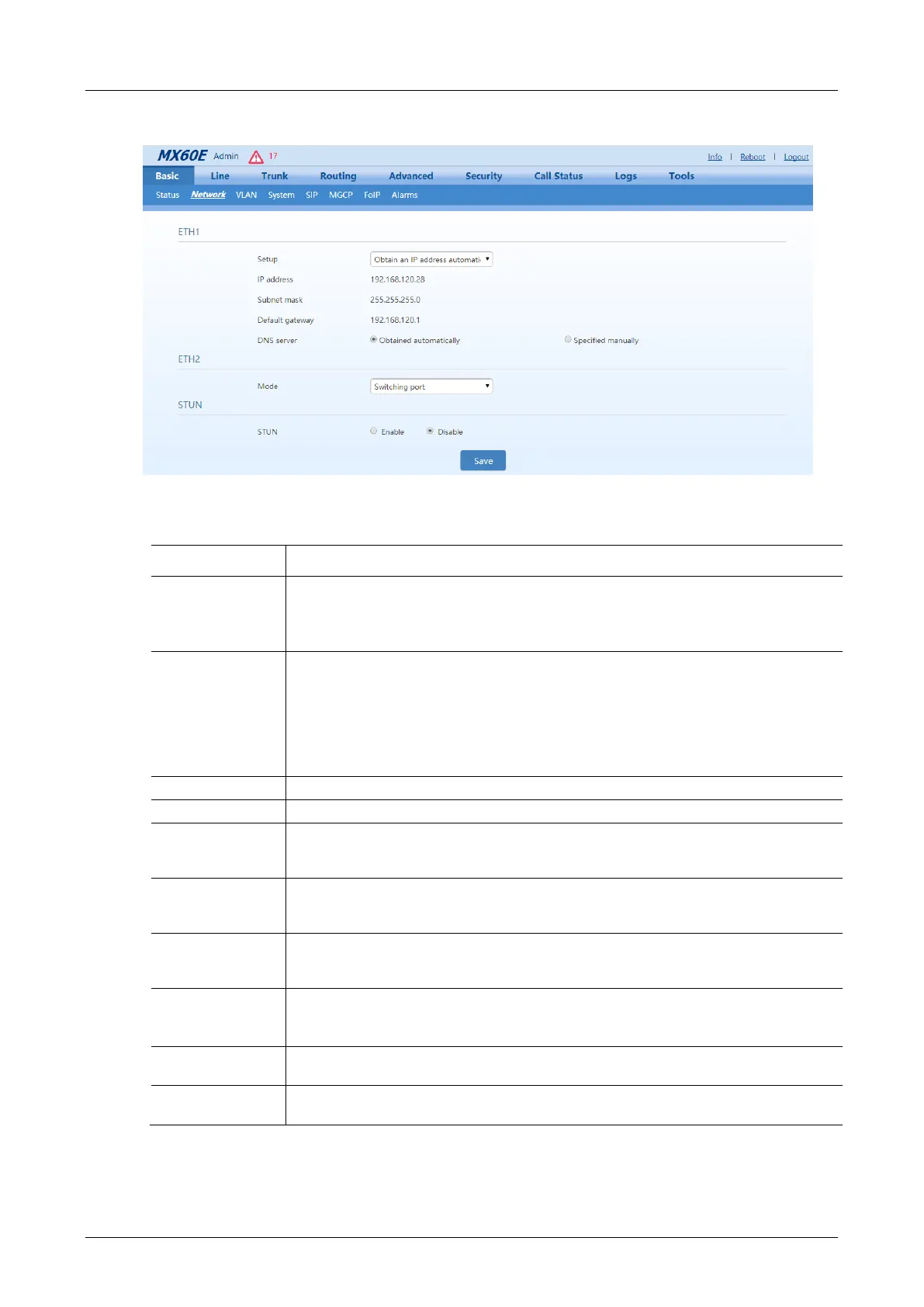

Figure 2-4 Network Configuration Interface (MX60/MX60E/MX120G)
Table 2-3 Network Configuration Parameters
Name
Description
ETH1
(MX60/MX60E/MX
120G)
ETH1 configurations.
MX60, MX60E, and MX120G each have two network ports: ETH1 and ETH2.
HX4E/MX8A/HX4G/MX8G each has only one network port.
Setup
Methods for obtaining an IP address.
 Static IP address: static IP address is used;
 Obtain an IP address automatically: use the dynamic host configuration protocol (DHCP) to
obtain IP addresses and other network parameters;
 PPPoE: PPPoE service is used.
Username
Enter an authentication user name if PPPoE service is selected, and there is no default value.
Password
Enter an authentication password if PPPoE service is selected, and there is no default value.
IP address
If “Static IP” or “DHCP” is selected but an address fails to be obtained, the gateways will use
the IP address filled in here. If the gateways obtain an IP address through DHCP, the system
will display the current IP address automatically obtained from DHCP.
Subnet mask
The subnet mask is used with an IP address. When the gateway uses a static IP address, this
parameter must be entered; when an IP address is automatically obtained through DHCP, the
system will display the subnet mask automatically obtained by DHCP. It has no default value.
Default gateway
The IP address of LAN gateway. When the gateway obtains an IP address through DHCP, the
system will display the LAN gateway address automatically obtained through DHCP. It has no
default value.
DNS server
Obtained automatically: When the connection mode is "DHCP" or "PPPoE", the device uses the
automatically obtained IP address of the DNS server.
Specified manually: Use the DNS server addresses specified manually.
Primary DNS Server
If Specified manually is selected, the network IP address of the Primary DNS server must be
entered, there is no default value.
Secondary DNS
Server
If Specified manually is selected, the network IP address of the Secondary DNS server can be
entered, there is no default value.
