User Manual MX Series Voice Gateway

118 New Rock Technologies, Inc.

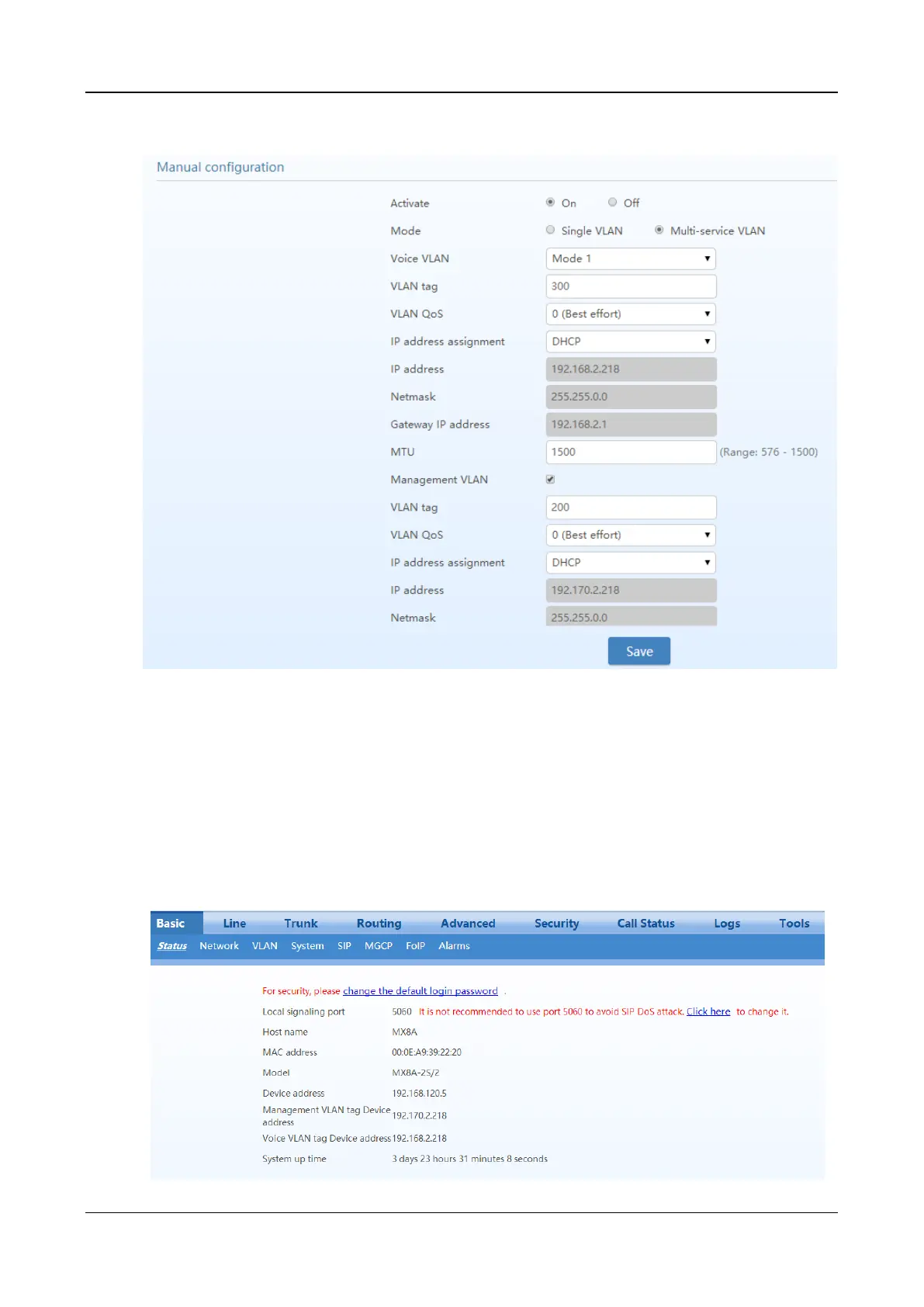

Figure 3-10 Configuring Multi-Service VLAN

2. Restart the device for the VLAN to take effect.

3. Use the PC belonging to VLAN 200 to log in to the web page. On the Basic > Status page, the IP

address of each interface of the device can be viewed as shown in Figure 3-11. From top to bottom: IP

address of the device’s physical network port, IP address of the management VLAN, and IP address of

the voice VLAN.

Figure 3-11 IP Addresses of the Device in Multi-Service VLAN
