User Manual MX Series Voice Gateway

18 New Rock Technologies, Inc.

Table 1-7 Voice Interface Cards Supported by the MX8A/MX8G

Voice Interface Card Types

Number of FXS Ports

Number of FXO Ports

401A-4FXS

401A-4FXO

401A-2FXS/2FXO

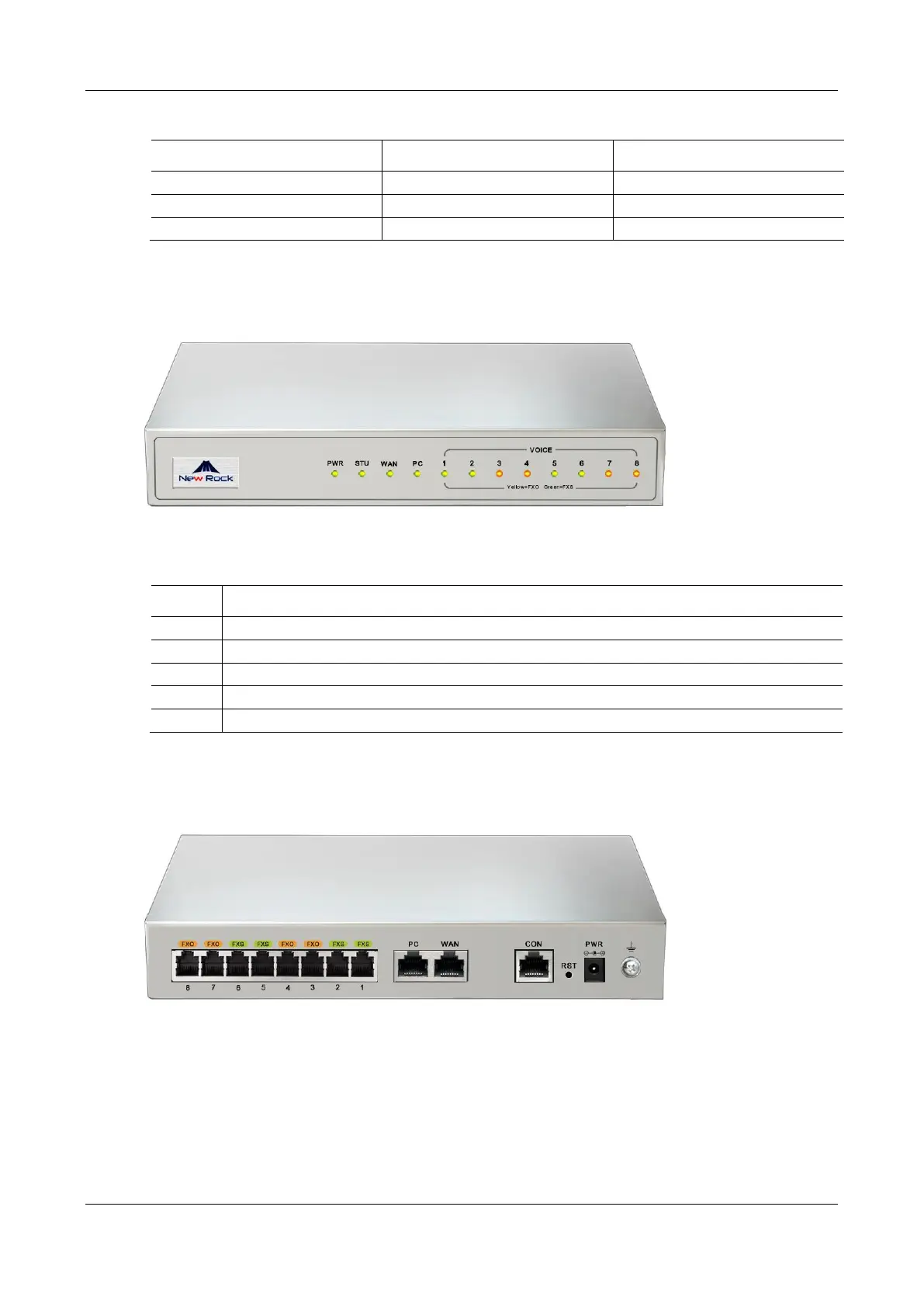

Figure 1-3 MX8A/MX8G Front Panel

Table 1-8 Description of MX8A/MX8G Front Panel

Item

Description

PWR

Power indicator

STU

Status indicator

WAN

WAN interface indicator

PC interface indicator

VOICE

FXS/FXO port indicator

Figure 1-4 MX8A/MX8G Back Panel
