New Rock Technologies MX8G - Figure 1-1 HX4 E;HX4 G Front Panel; Figure 1-2 HX4 E;HX4 G Back Panel; Table 1-3 Description of HX4 E;HX4 G Front Panel; Table 1-4 Description of HX4 E;HX4 G Back Panel

User Manual MX Series Voice Gateway
16 New Rock Technologies, Inc.

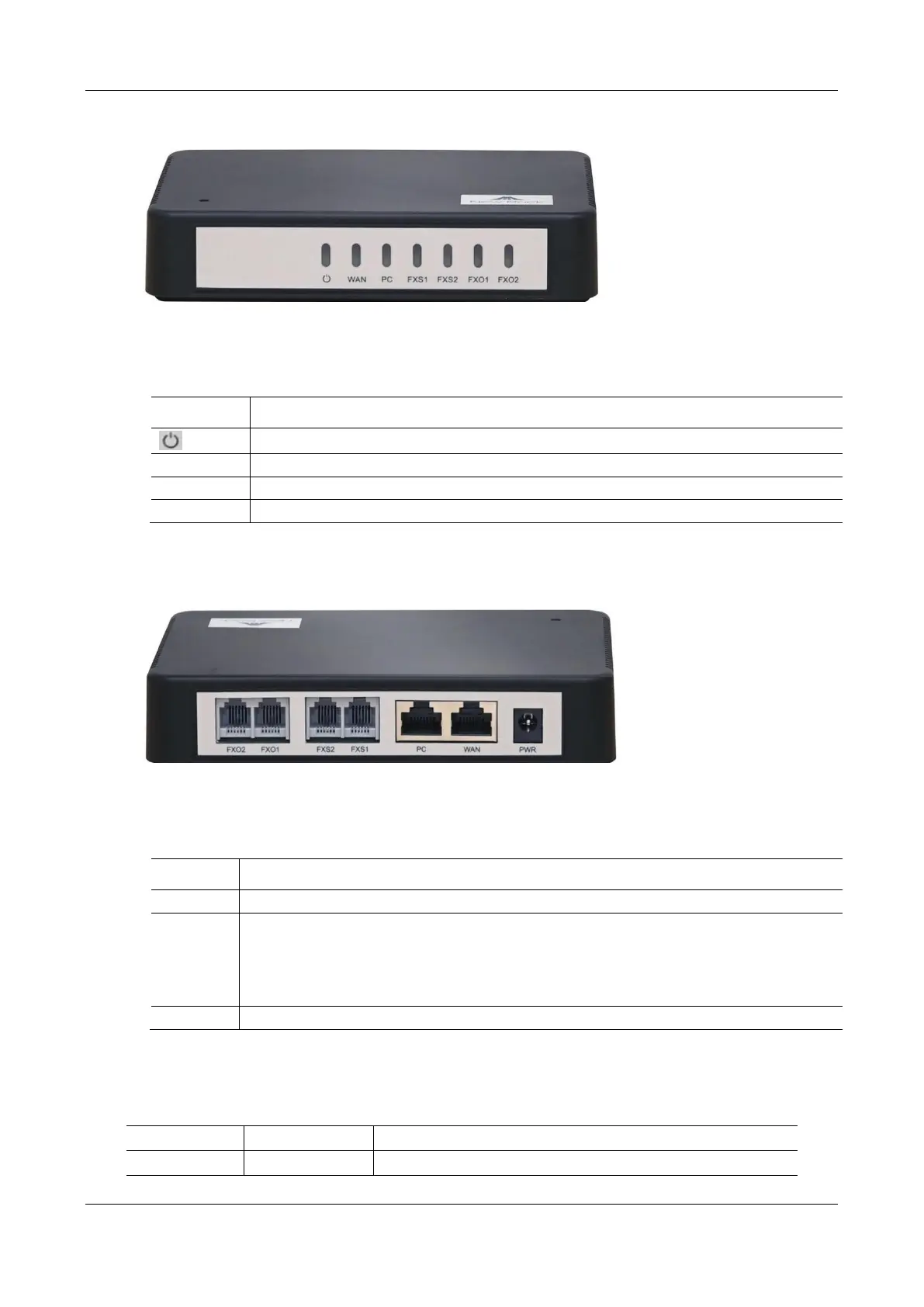

Figure 1-1 HX4E/HX4G Front Panel
Table 1-3 Description of HX4E/HX4G Front Panel
Item
Description
Power Indicator
WAN
WAN interface indicator
PC
PC interface indicator
FXO/FXS
FXS /FXO port indicator
Figure 1-2 HX4E/HX4G Back Panel
Table 1-4 Description of HX4E/HX4G Back Panel
Item
Description
PWR
Power interface, 12 VDC input
PC and
WAN
The PC port is used to connect a computer.
The WAN port is used to connect the uplink network.
Both are 10/100 Mbps Ethernet ports (RJ45). They share one IP address, which, by default, is obtained
through DHCP. If no IP address is obtained, 192.168.2.218 is used by default, and you can change it on
Basic > Network page.
FXO/FXS
FXS port or FXO port
Table 1-5 Indicator Status of HX4E/HX4G
Indicator
Status
Description
PWR(green)
Blinking green
The device is starting.
