MX Series Voice Gateway User Manual

New Rock Technologies, Inc. 105

2.10.5 IP Capture

After login, click Tools > IP capture to open this interface. You are allowed to capture up to three IP

voice data files, each with up to 2M bytes. The capture is stored in the downloaded file under

/log/dump.cap in libpcap format.

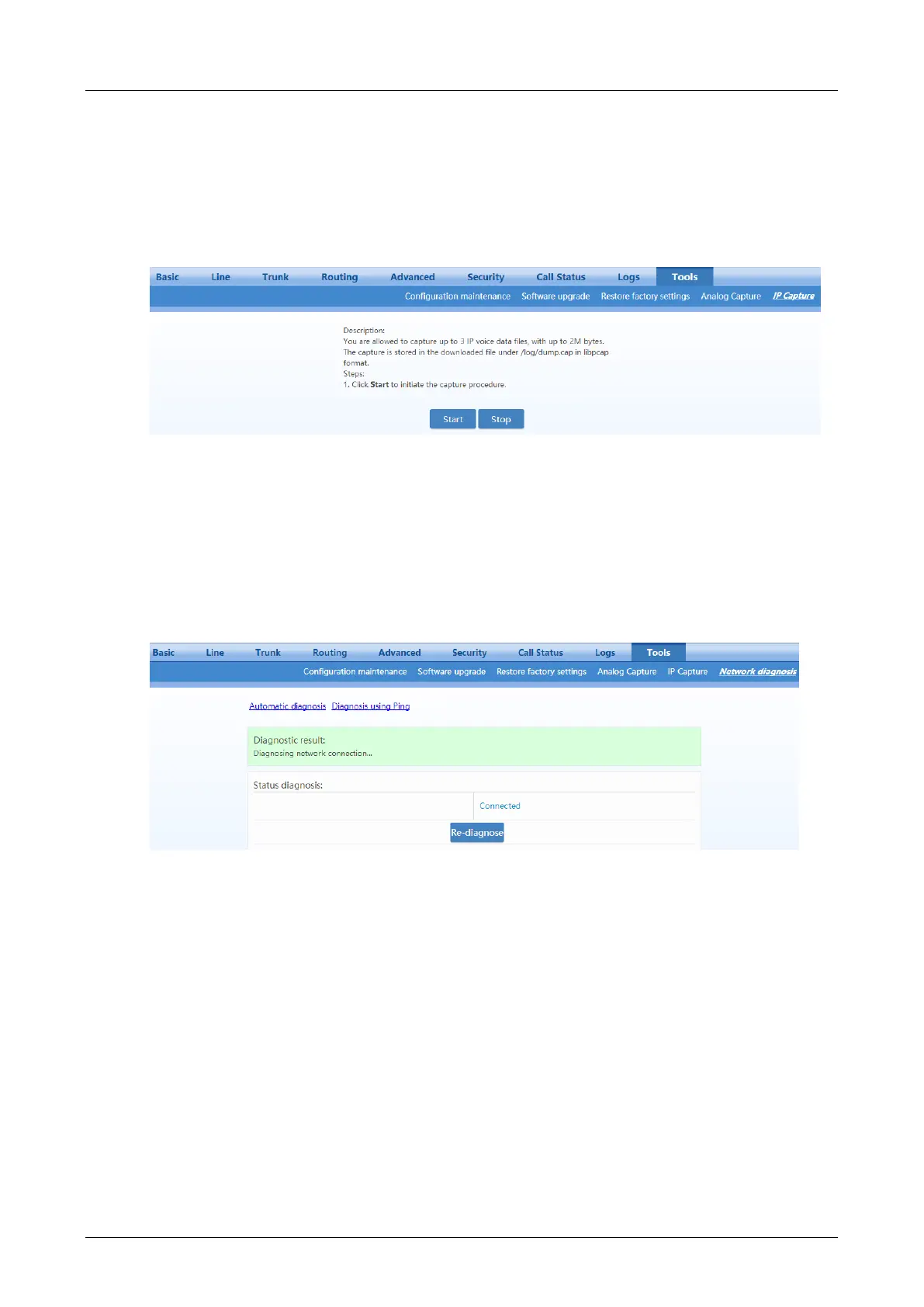

Figure 2-66 Ethereal Capture Interface

2.10.6 Network Diagnosis (HX4E/MX8A/HX4G/MX8G)

After login, click Tools > Network diagnosis to open this interface.

If the Internet is unavailable, you can use this tool to diagnose whether the network is connected.

Figure 2-67 Automatic Diagnosis Interface
