MX Series Voice Gateway User Manual

New Rock Technologies, Inc. 115

Configuring Voice VLAN

The device includes a VLAN tag configured in the voice VLAN in SIP, RTP and T.38 data packets.

The voice VLAN of the device has the following two modes: Mode 1 and Mode 2.

 Mode1 - Signaling (SIP) and media stream (RTP/T.38) are on the same VLAN

In this mode, the voice VLAN can be configured with a separate IP address.

On the web interface, click Network, and ensure that the VLAN function is set to On and Mode is

set to Multi-service VLAN. Select Mode 1 for Voice VLAN, enter the VLAN tag, and specify

network information such as IP address.

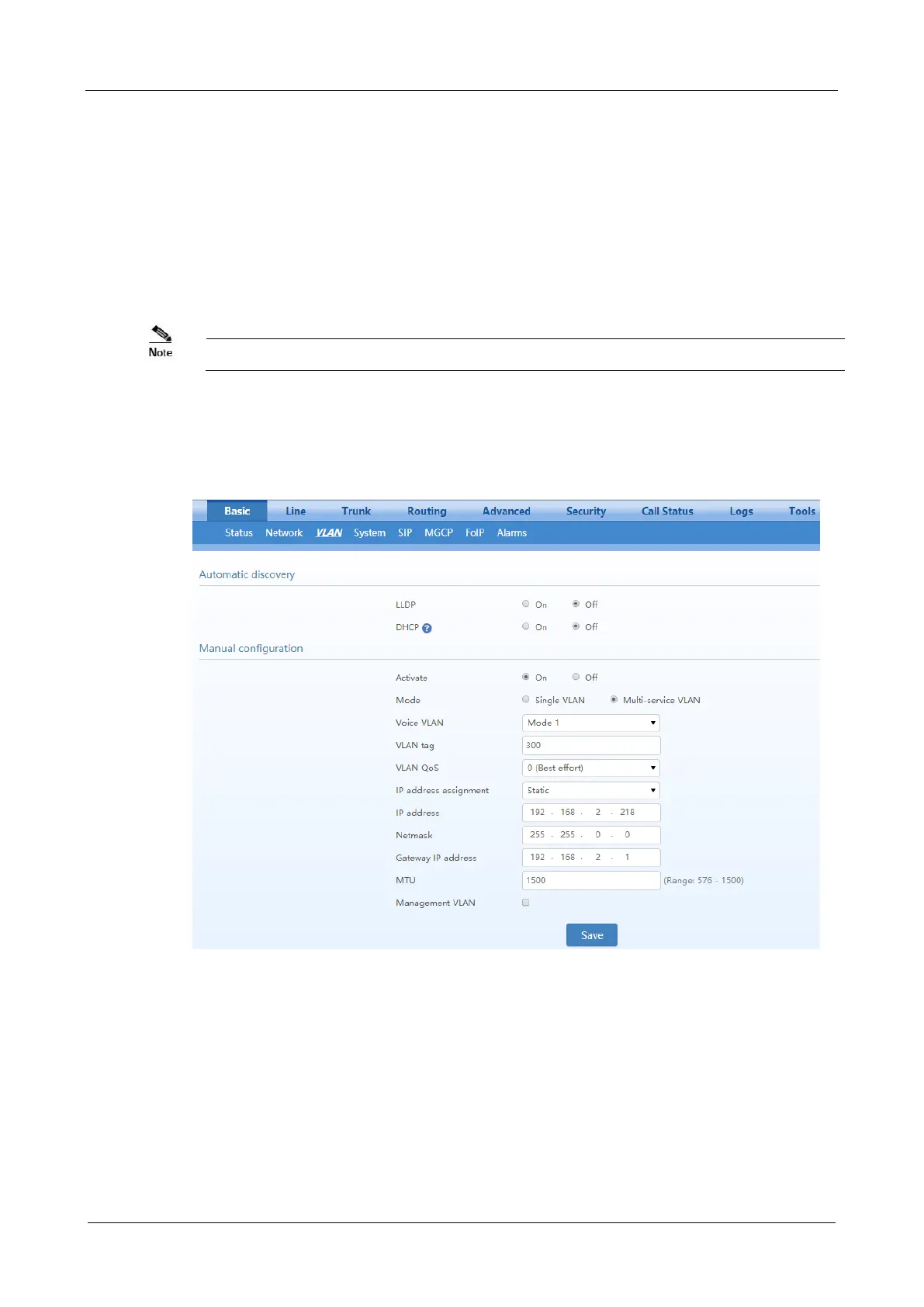

Figure 3-6 Configuring Voice VLAN to Work in Mode 1



 Mode2 - Signaling (SIP) and media stream (RTP/T.38) are divided into different

VLANs
