New Rock Technologies MX8G - Multi-Service VLAN Network Example

To Next Page

To Previous Page

MX Series Voice Gateway User Manual

New Rock Technologies, Inc. 117

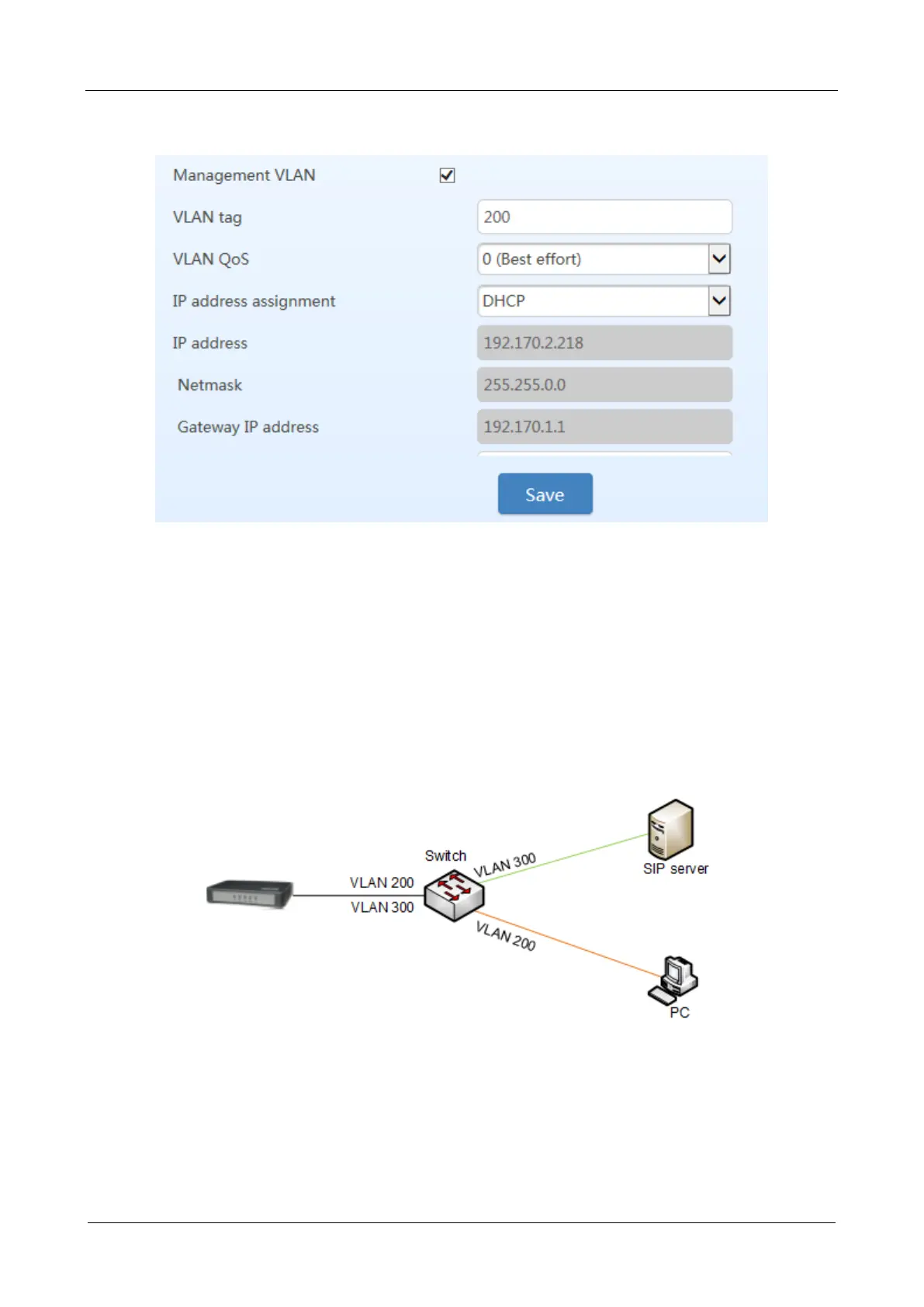

Figure 3-8 Configuring Management VLAN

Example of Multi-Service VLAN

Figure 3-9 shows the network environment. The ports for connecting the switch and HX4 are added to

VLAN 200 and VLAN 300. The port for connecting the switch and SIP server is added to VLAN 300.

The ports for connecting the switch to the PC (used for managing HX4), are added to VLAN 200.

Figure 3-9 Network Environment

1. Configure multi-service VLAN on the HX4 device: the voice VLAN uses mode 1, the VLAN tag is

300, the VLAN tag of the management VLAN is 200, and the IP address is obtained from the

corresponding VLAN network using DHCP. As shown in Figure 3-10.
