Satellite Terminal Components
User Manual for the Satellite Terminal
version 3.0
5
2.3 Cables
2.3.1 Ethernet Cables
Included with your Sat3Play Terminal is a crossed red Cat-5 Ethernet cable with RJ-
45 connectors. This cable is approximately 2 m long. It is used to connect the
IPmodem to your computer.
The IPmodem Ethernet connection also supports auto cross-over.
Hence a straight Ethernet cable also be used
2.3.2 Coaxial Cables

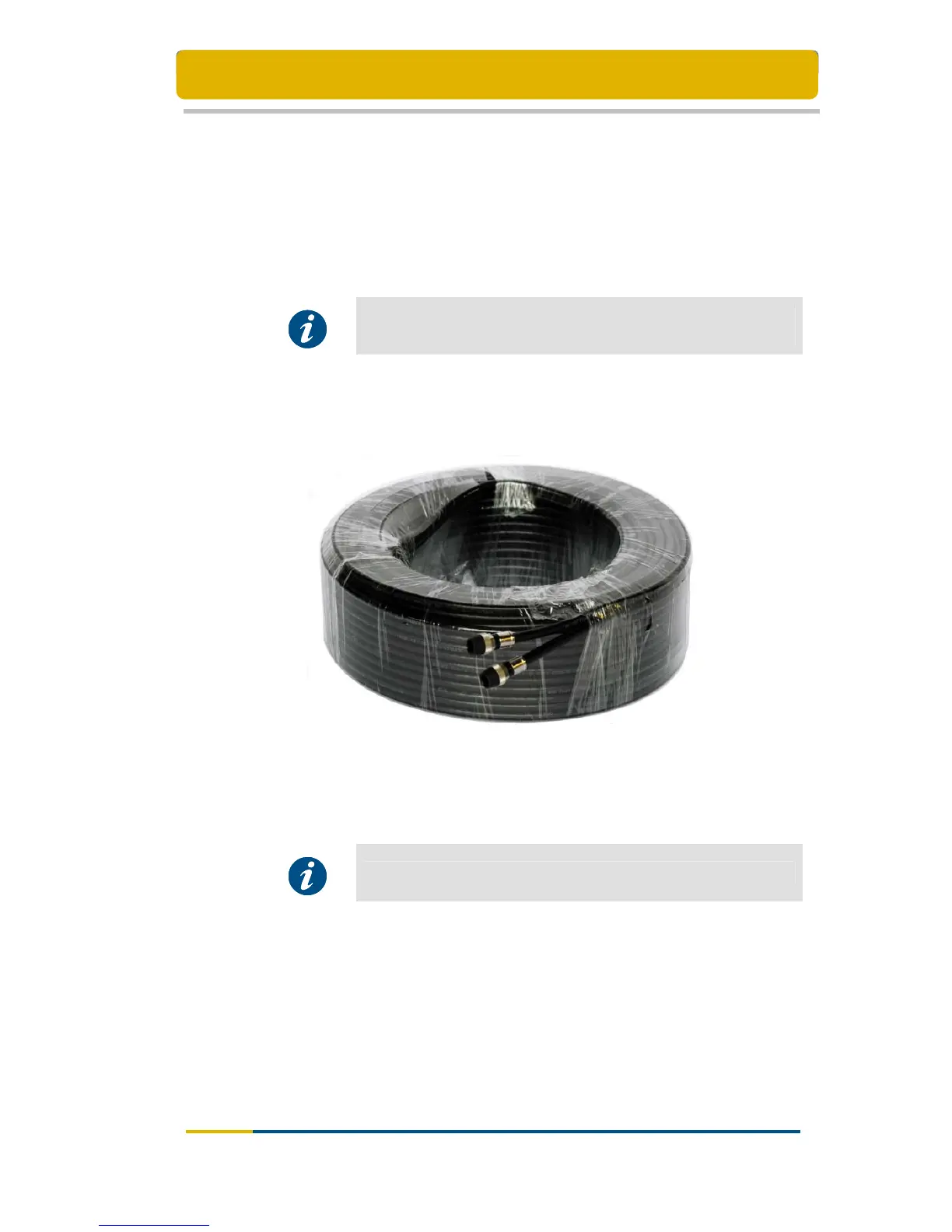

Figure 5 – Coaxial Cables
Delivered with your system is a combined twin Rx/Tx cable with premounted
connectors on one end. These coaxial cables are approx 1cm in diameter and have
a length of 30 meters.
Please refer to Appendix F for the cable specifications.
