Satellite Terminal Components
User Manual for the Satellite Terminal
version 3.0
6
2.4 The iLNB
The iLNB has an integrated casing and is fully sealed except for its ventilation slots.

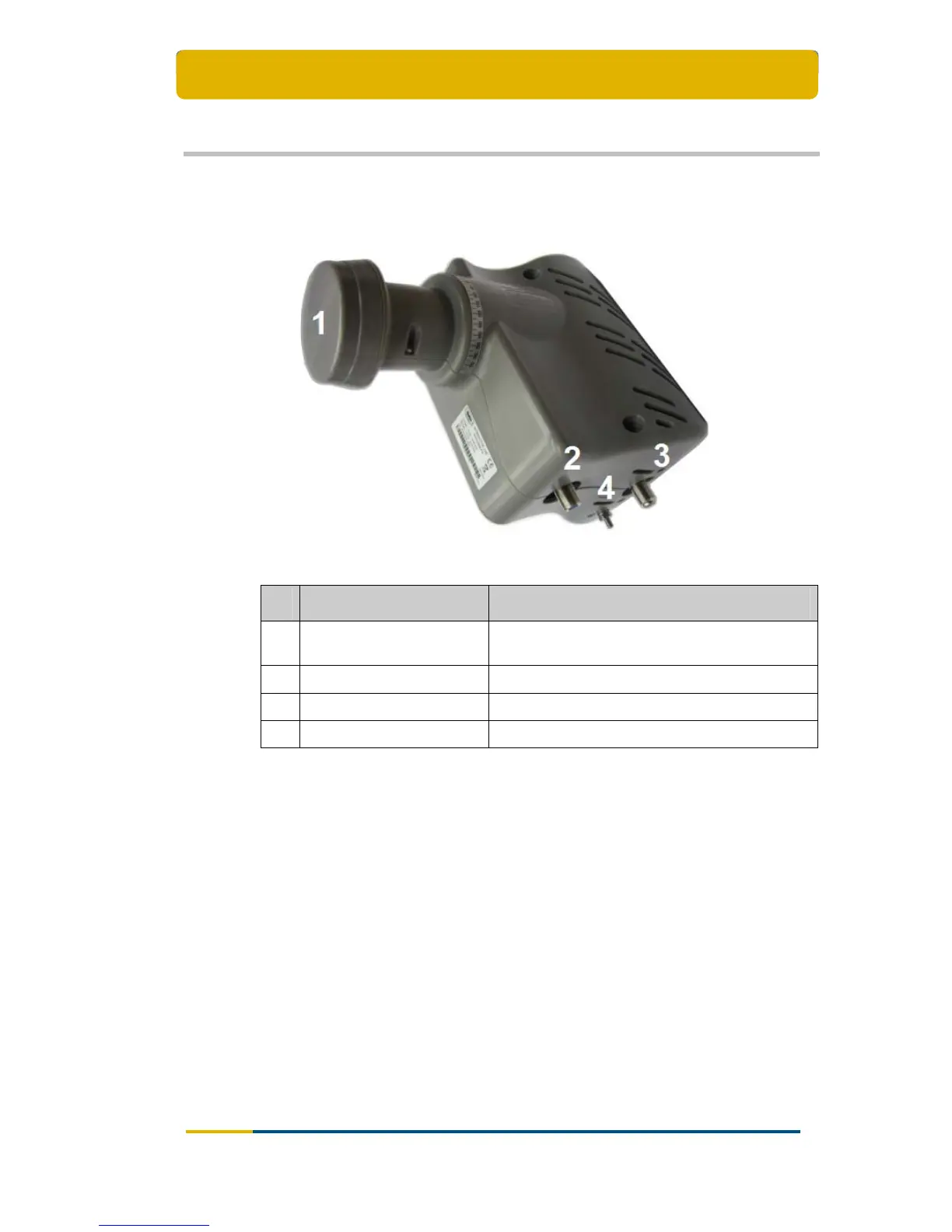

Figure 6 - iLNB > Perspective and Bottom View
Nr What Description
1 Feed horn
Radiating feed horn of the iLNB, pointed
towards reflector.
2 Rx connector Outdoor connection for the receive coax cable.
3 Tx connector Outdoor connection for the transmit coax cable.
4 Grounding connector Outdoor connection for the grounding wire
Table 4 - Description Elements of the iLNB
