Chapter 1: Product Introduction
VTC 7260 Series User Manual

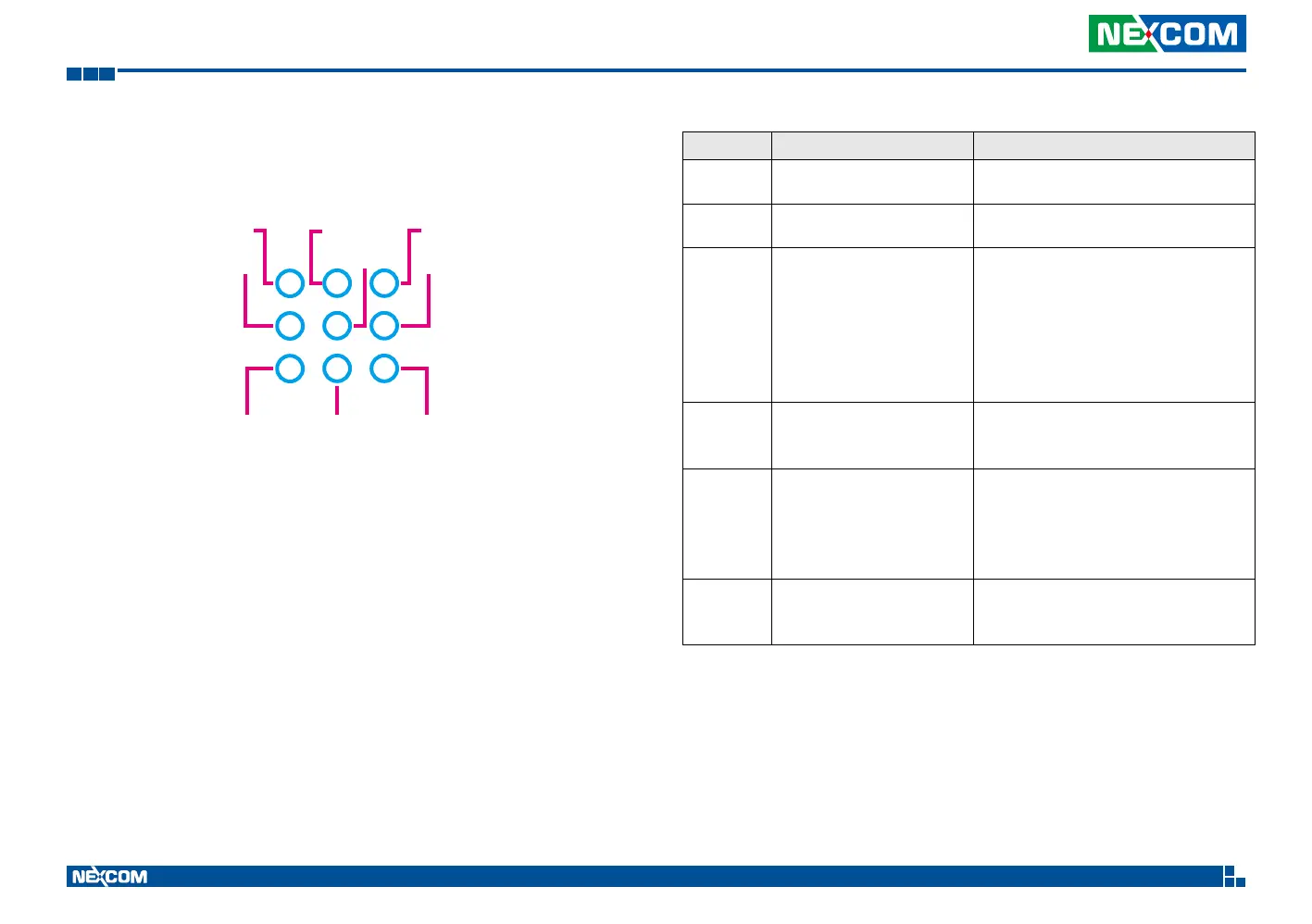

VTC 7260-x LED Description
WLAN
PWR
Prog4
STAT
LED Description LED Behavior
WWAN WWAN signal/service indicator
▪ Solid green: Link active
▪ Blinking green: Data transmission
WLAN WLAN signal/service indicator
▪ Solid green: Link active
▪ Blink green: Data transmission
STAT System status indicator
▪ Off: System power off
▪ Blinking green: System booting
(BIOS post)
▪ Solid green: System ready
▪ 2Hz blinking red: System stalled
(Power is on, but system is not running.)
▪ Solid red: A fatal error occurred
PWR Power feed indicator
▪ Solid green: Power active
▪ Solid red: Power failure
▪ Off: Power off
SATA/NVMe SATA/NVMe SSD Indicator
▪ Off: No storage installed
▪ Solid green: Powered on and ready
▪ Blinking green (10Hz): Reading/writing
data
▪ Soild red: A fatal error occurred
Prog. 1~4 User programmed indicator
▪ Please refer to ATC8110 Commands
list at ST_SYSTEM_GET_33_02_
PROGRAM_LED_STATUS for Linux
Prog3 Prog1
Prog2
WWAN SATA/NVME
