Chapter 2: External Connectors Pinout Description
VTC 7260 Series User Manual

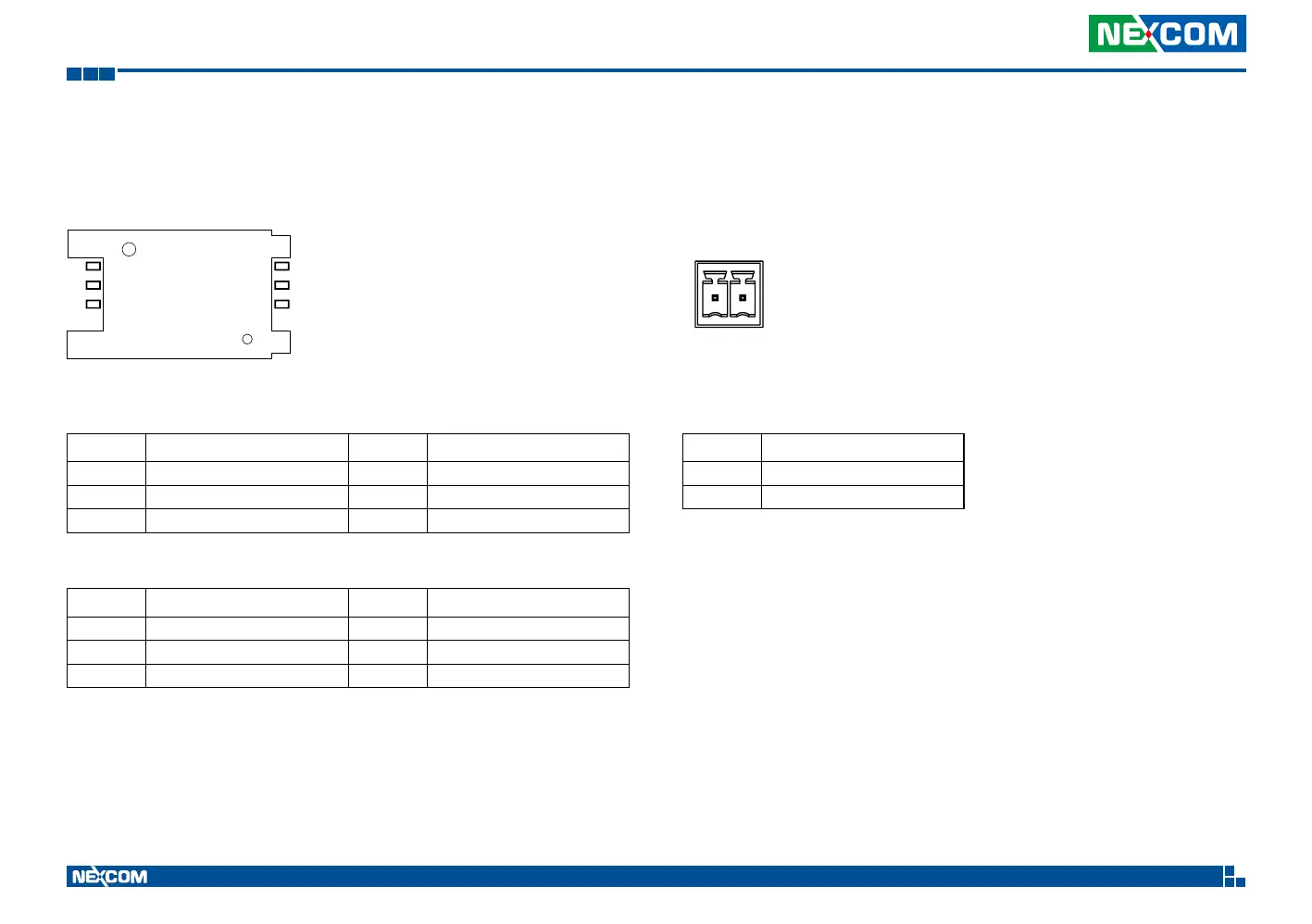

SIM1-1 and SIM2-1 Socket
Connector number: 10
SIM1-1
Pin Definition Pin Definition
C1 UIM_PWR C5 NC
C2 UIM_RST C6 UIM_DAT
C3 UIM_CLK C7 NC
SIM2-1
Pin Definition Pin Definition
C1 UIM_PWR C5 NC
C2 UIM_RST C6 UIM_DAT
C3 UIM_CLK C7 SIM SELECT
C3
C2
C1
C7
C6
C5
Pin Definition
1 12V
2 Ground
1 2
