Chapter 3: Jumpers and Connectors
VTC 7260 Series User Manual

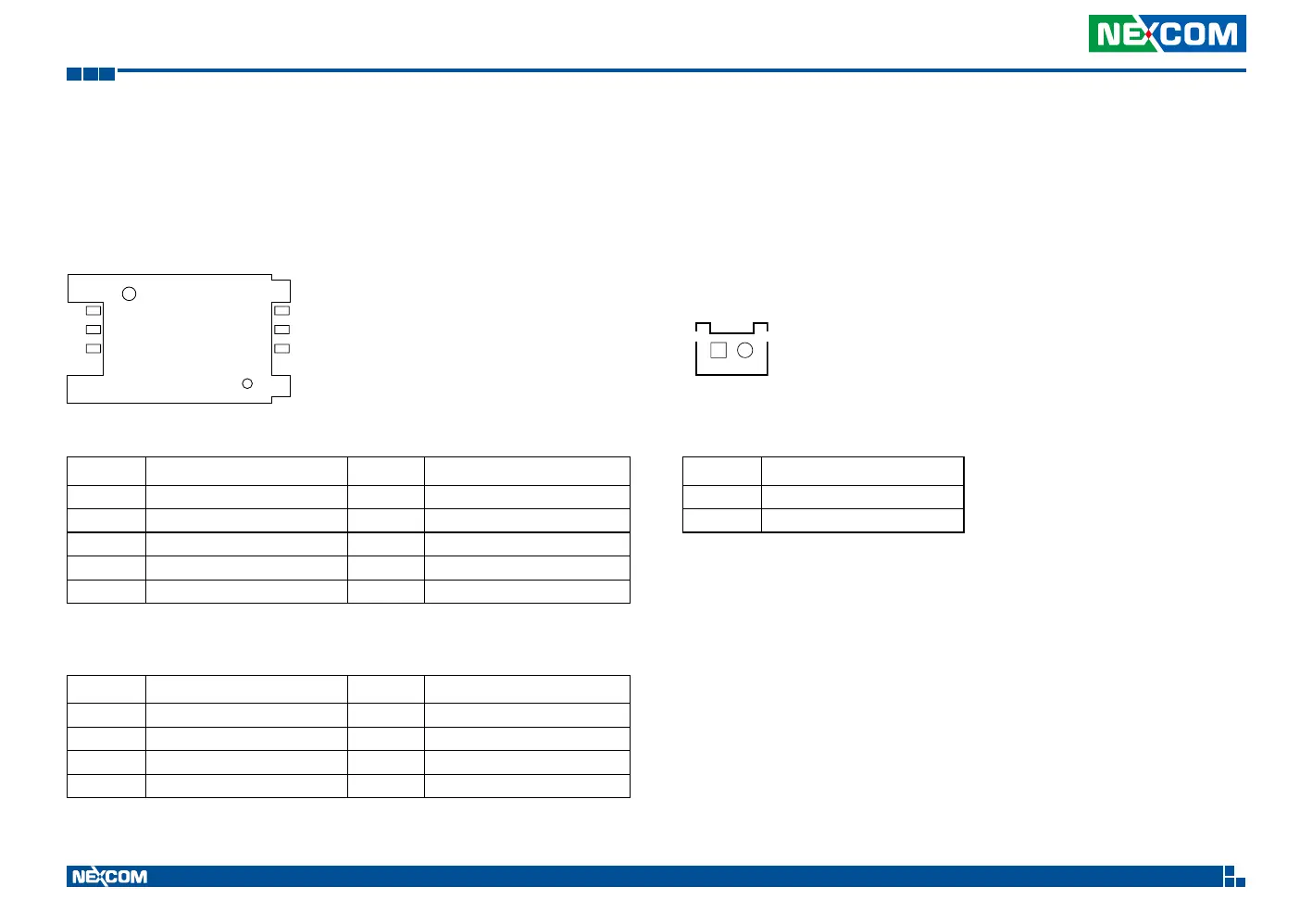

Internal Connectors
Micro SIM Slot For LTE Slot
Connector location: CN17/CN25
Pin Definition
1 GND
2 VBAT
1 2
C5
C6
C7
C1
C2
C3
RTC Battery Connector
Connector type: 1x2 2-pin header
Connector location: J7
Pin Definition Pin Definition
C1 UIM1 POWER C2 UIM1 RESET
C3 UIM1 CLK C4 N.C
C5 GND C6 N.C
C7 UIM1 DATA C8 N.C
CD SIM1_DET
CN17 Connector Pin Definition
Pin Definition Pin Definition
C1 UIM2 POWER C2 UIM2 RESET
C3 UIM2 CLK C4 N.C
C5 GND C6 N.C
C7 UIM2 DATA C8 N.C
CN25 Connector Pin Definition
