Chapter 2: External Connectors Pinout Description
VTC 7260 Series User Manual
1
8

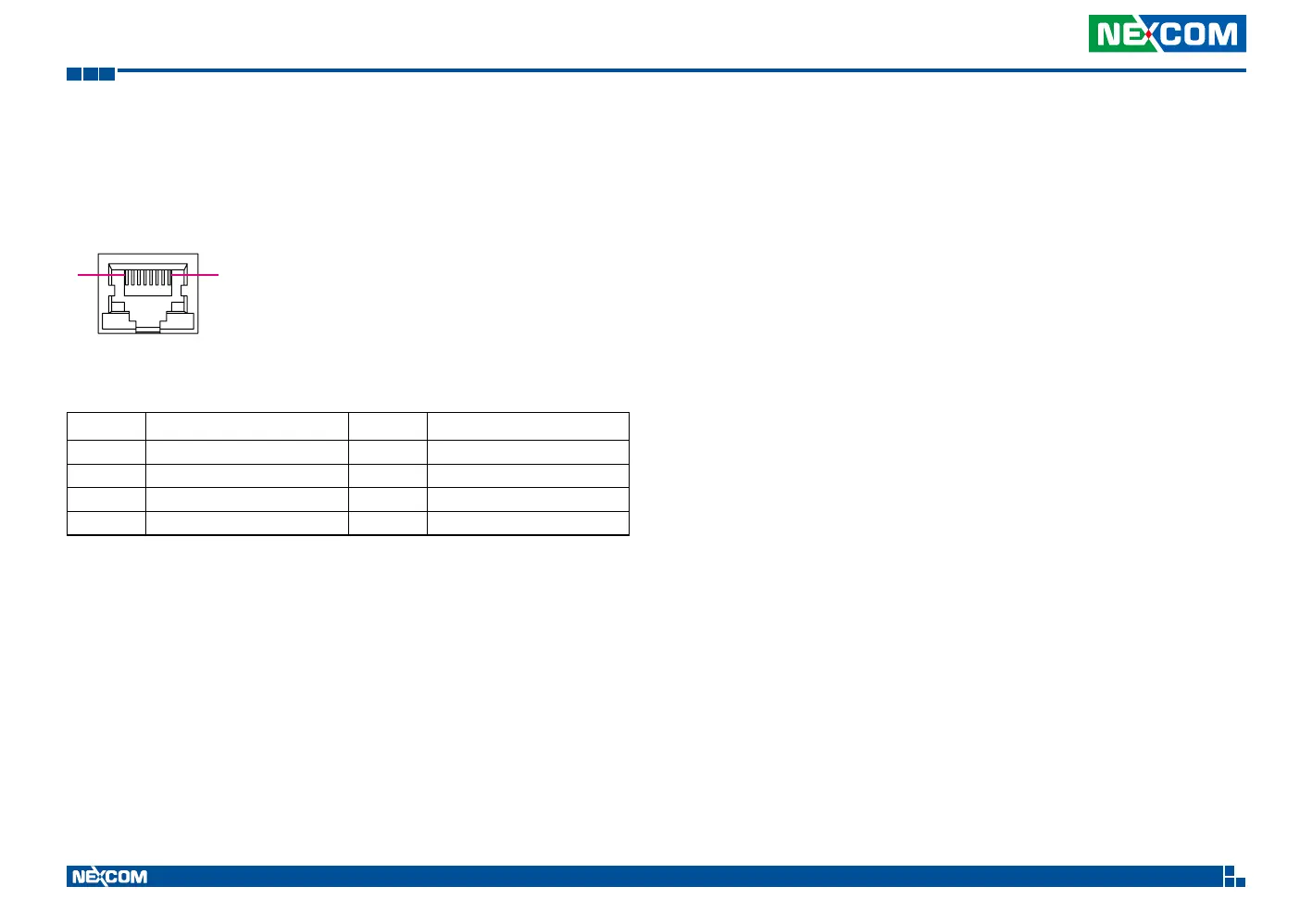

GbE/Mgt. Connector
Connector number: 17
Pin Definition Pin Definition
1 LAN_MDI_0P_R 2 LAN_MDI_0N_R
3 LAN_MDI_1P_R 4 LAN_MDI_1N_R
5 LAN_MDI_2P_R 6 LAN_MDI_2N_R
7 LAN_MDI_3P_R 8 LAN_MDI_3N_R
