Chapter 2: External Connectors Pinout Description
VTC 7260 Series User Manual

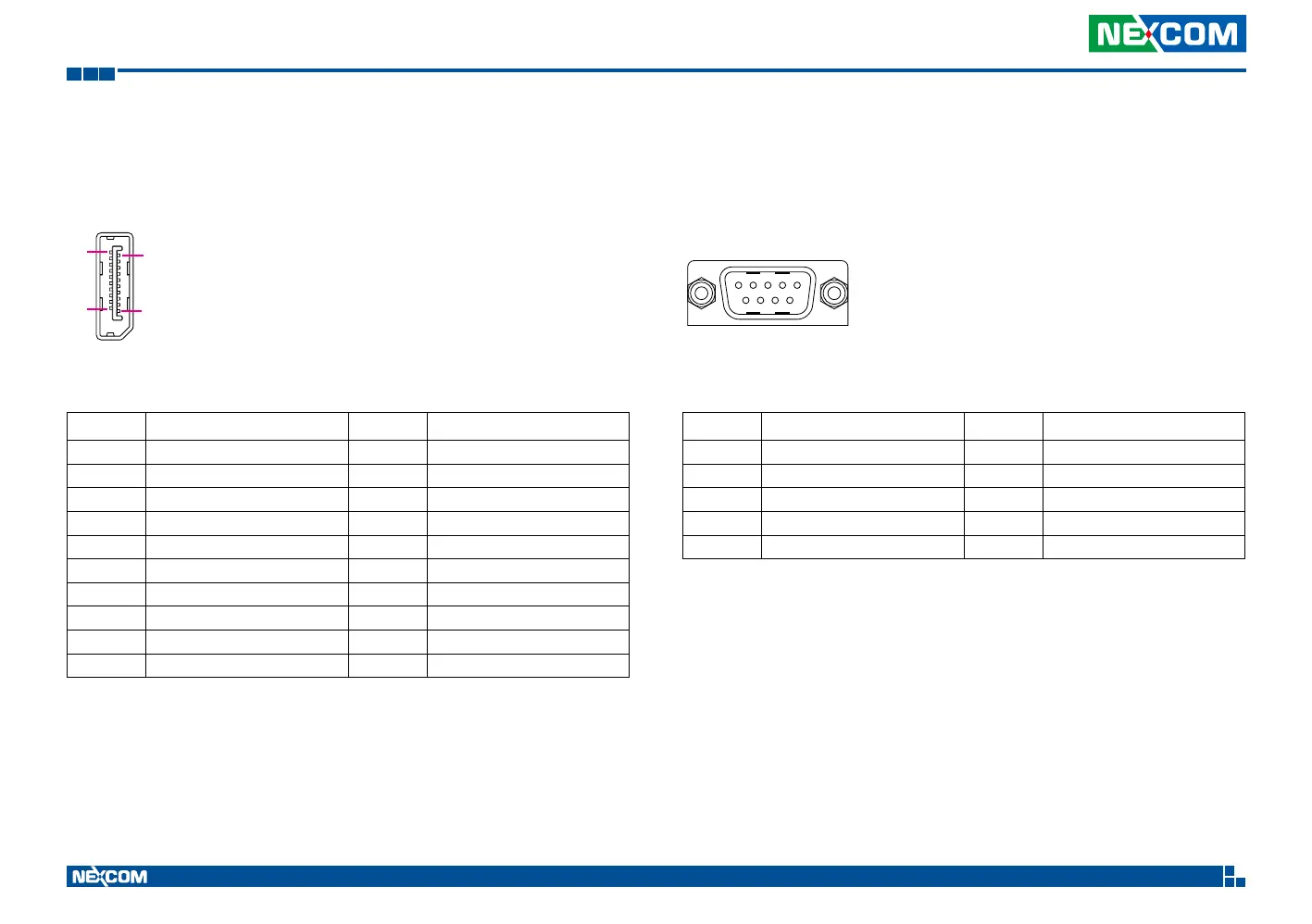

DP Connector
Connector number: 15
Pin Definition Pin Definition
1 DDIA_0_DP 2 GND
3 DDIA_0_DN 4 DDIA_1_DP
5 GND 6 DDIA_1_DN
7 DDIA_2_DP 8 GND
9 DDIA_2_DN 10 DDIA_3_DP
11 GND 12 DDIA_3_DN
13 DDIA_CONFIG1 14 DDIA_CONFIG2
15 DDIA_AUXP 16 GND
17 DDIA_AUXN 18 DDIA_HPD
19 GND 20 DP_VCC3
20
2
1
19
RS232 Connector (VTC 7260-x non-PoE Version)
Connector number: 16
Pin Definition Pin Definition
1 RS232 DCD# 2 RS232 RX
3 RS232 TX 4 RS232 DTR#
5 GND 6 DSR#
7 RTS# 8 CTS#
9 RI
1 5
6 9
1
6
5
9
