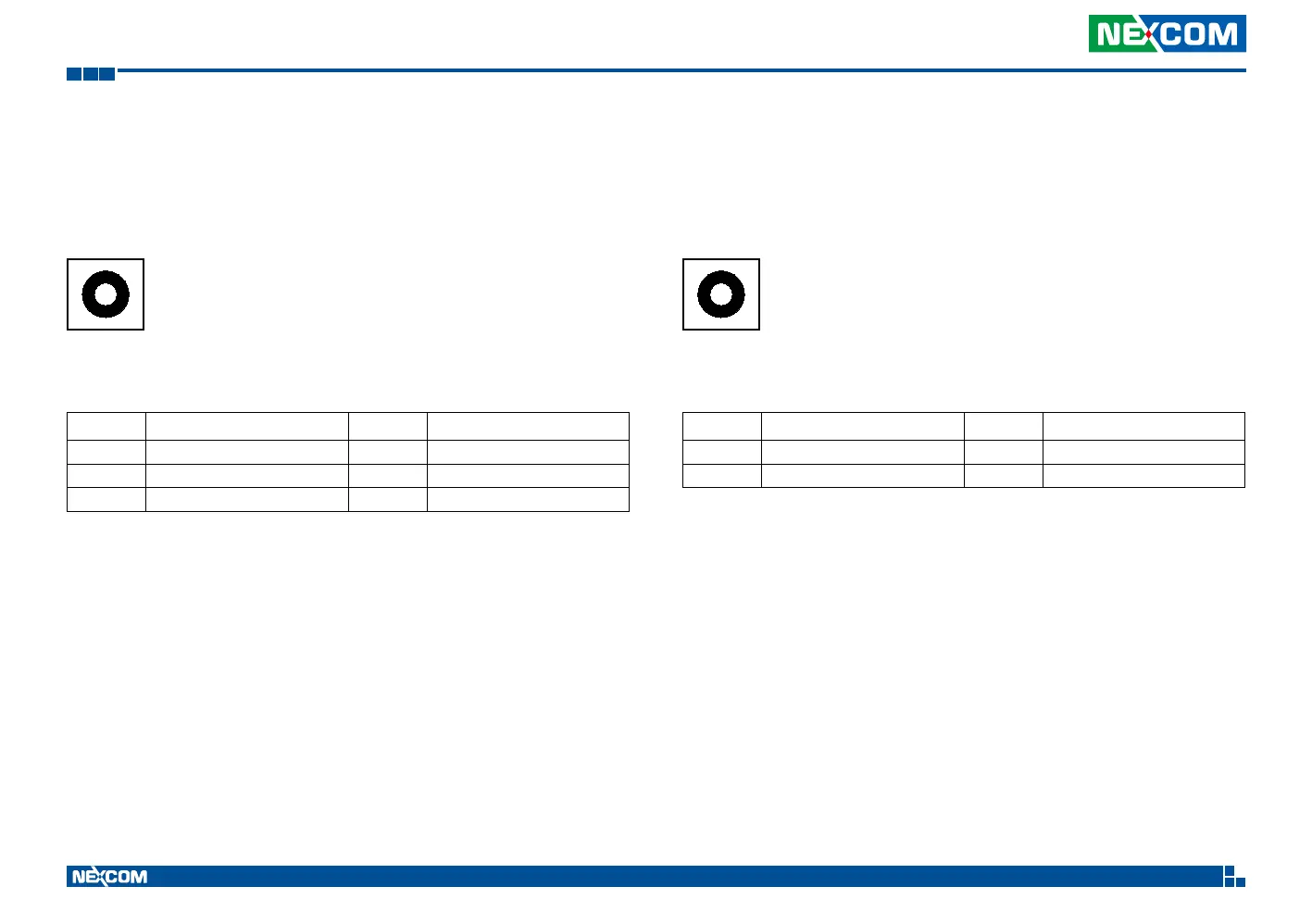

Chapter 2: External Connectors Pinout Description
VTC 7260 Series User Manual
Pin Definition Pin Definition
1 GND 2 MIC RIGHT
3 GND 4 MIC DETECT
5 MIC LIFT
Mic-in Connector
Connector number: 8
Pin Definition Pin Definition
22 FRONT OUT RIGHT 23 GND
24 FRONT OUT DETECT 25 FRONT LIFT
Line-out Connector
Connector number: 9
