Appendix A: Power Connection
VTC 7260 Series User Manual
aPPendIx a: Power ConneCtIon

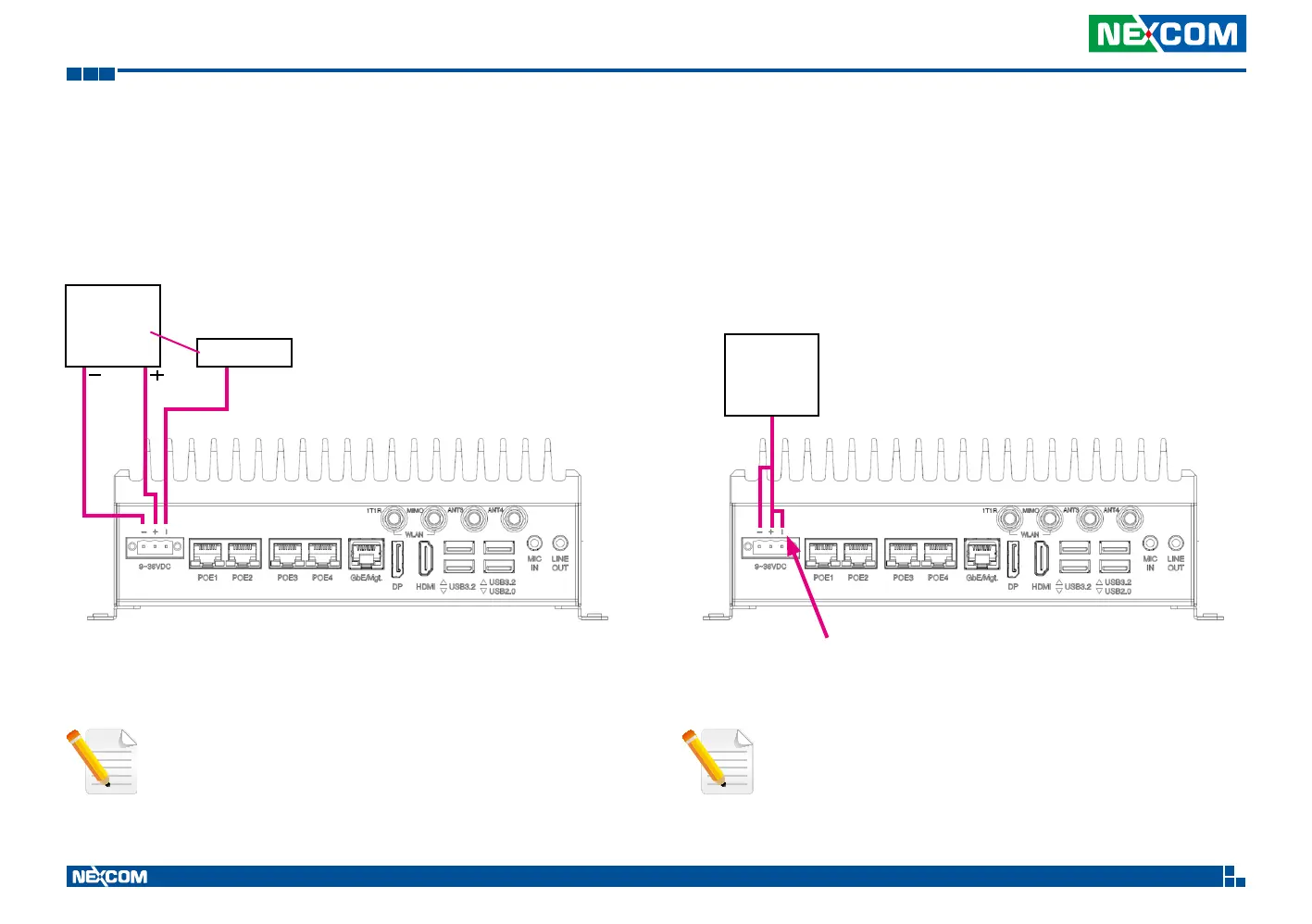

Scenario A: Power from the car (Lead-acid Battery)
Key Lock
Lead-acid
Battery
270W
Power
Supply
Scenario B: Power from the power adapter (150W
or above recommended)
Note: It is strongly recommended that an AWG#18 or above for
the power connection.
Note: Optional power adapter of 270W P/N, 740027002X00
Short the IGN pin to the power “+” to keep IGN always on high voltage level
