Chapter 3: Jumpers and Connectors
VTC 7260 Series User Manual

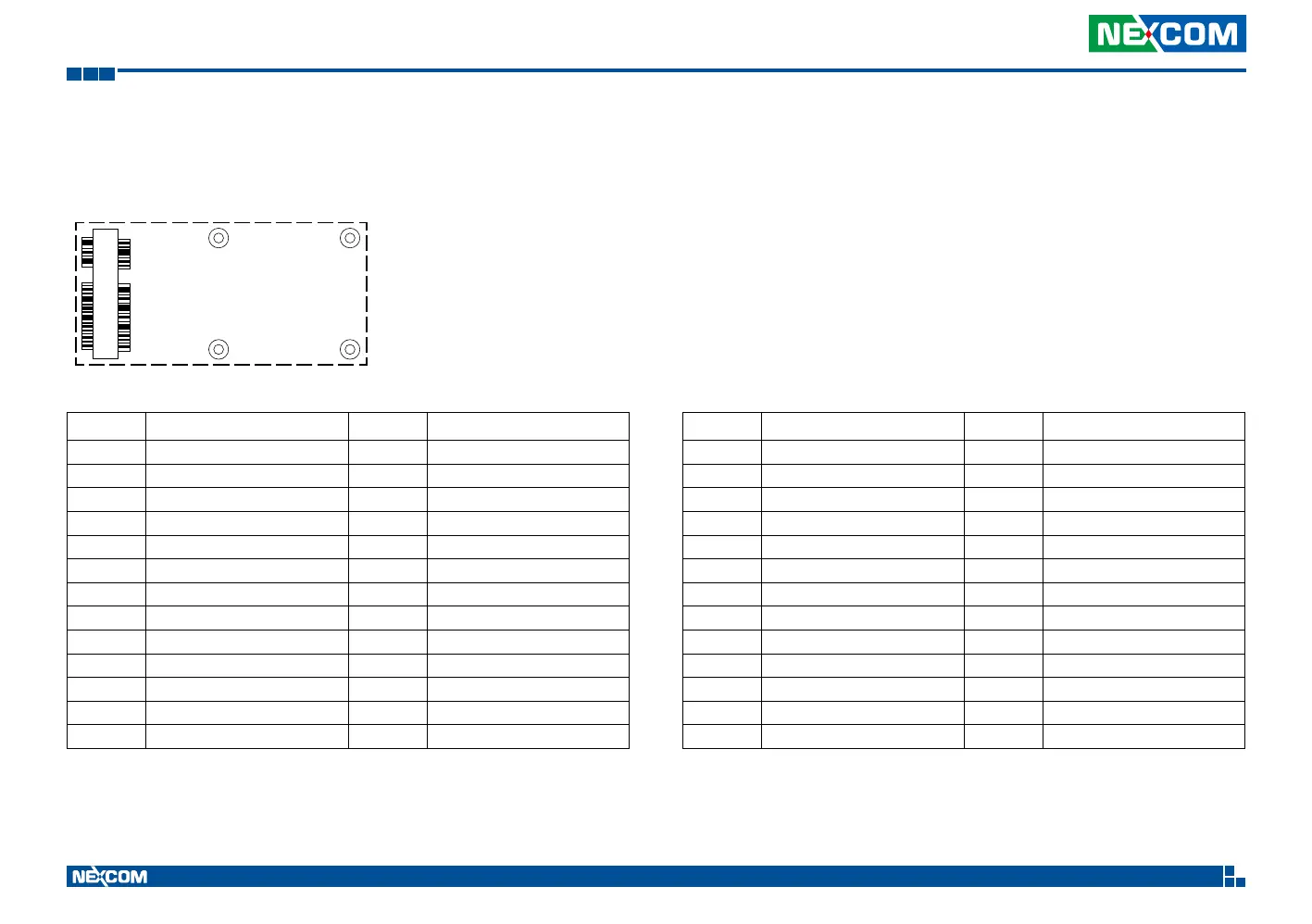

Mini-PCIe Connector (SATA 3.0 interface) for mSATA
Connector location: CN24
1 2
51 52
Pin Definition Pin Definition
1 N.C 2 +V3.3_MINI (+3.3V)
3 N.C 4 GND
5 N.C 6 N.C
7 N.C 8 N.C
9 GND 10 N.C
11 N.C 12 N.C
13 N.C 14 N.C
15 GND 16 N.C
17 N.C 18 GND
19 N.C 20 N.C
21 GND 22 N.C
23 SATA1_RXP 24 +V3.3_MINI (+3.3V)
25 SATA1_RXN 26 GND
Pin Definition Pin Definition
27 GND 28 N.C
29 GND 30 N.C
31 SATA1_TXN 32 N.C
33 SATA1_TXP 34 GND
35 GND 36 N.C
37 GND 38 N.C
39 +V3.3_MINI (+3.3V) 40 GND
41 +V3.3_MINI (+3.3V) 42 N.C
43 GND 44 N.C
45 N.C 46 N.C
47 N.C 48 N.C
49 N.C 50 N.C
51 N.C 52 +V3.3_MINI (+3.3V)
