Chapter 4: System Setup
VTC 7260 Series User Manual

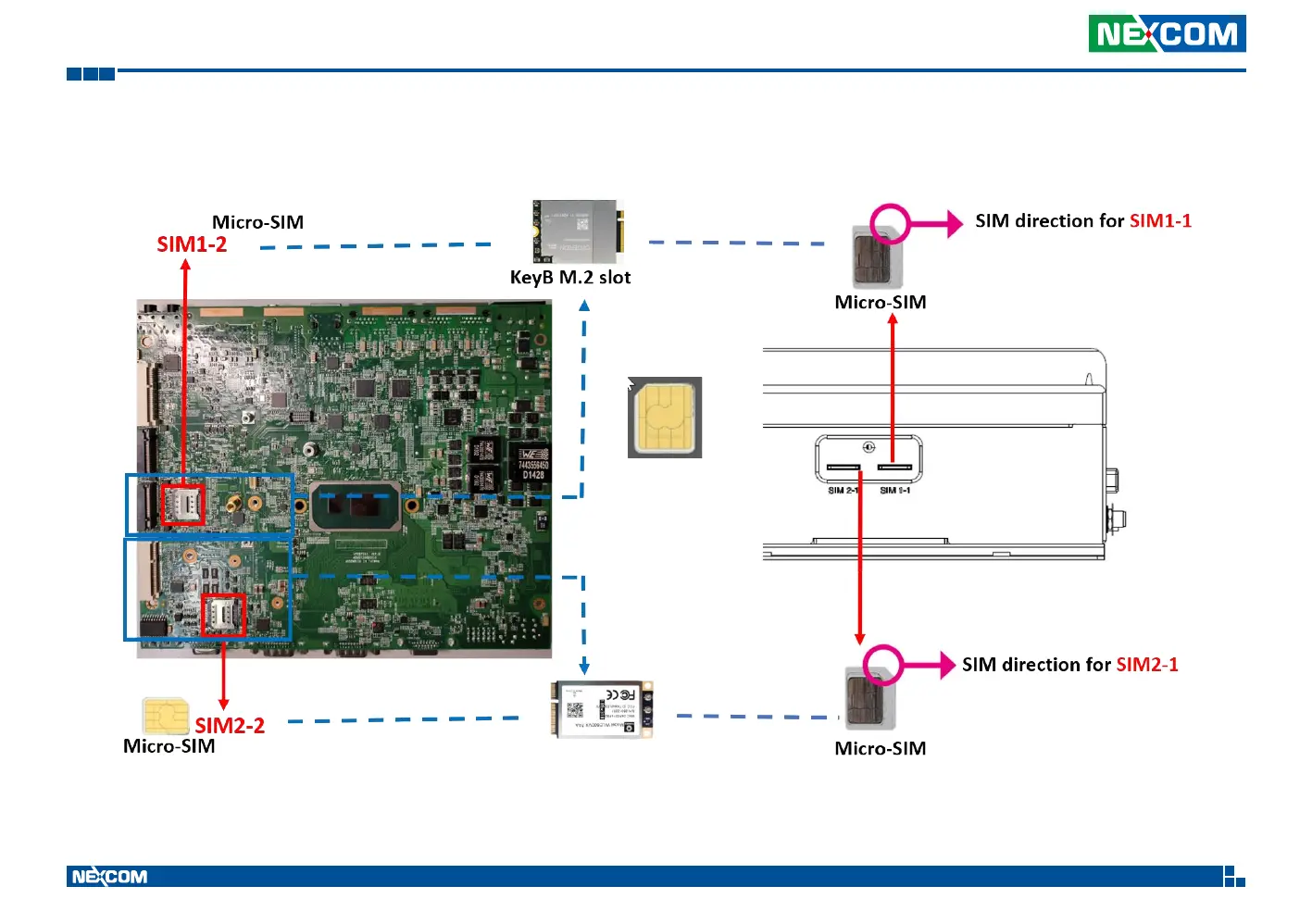

4. Please see the following diagram to install the SIM cards for each of those two LTE/5G modules. SIM1-1 & SIM1-2 are connected
to LTE/5G module installed on KeyB M.2 slot; SIM2-1 & SIM2-2 are connected to LTE/5G module installed on mPCIe slot.
