Appendix D: GPS with Dead Reckoning Feature
VTC 7260 Series User Manual
VIOB-GPS-DR02/VTK-GPS-DR02

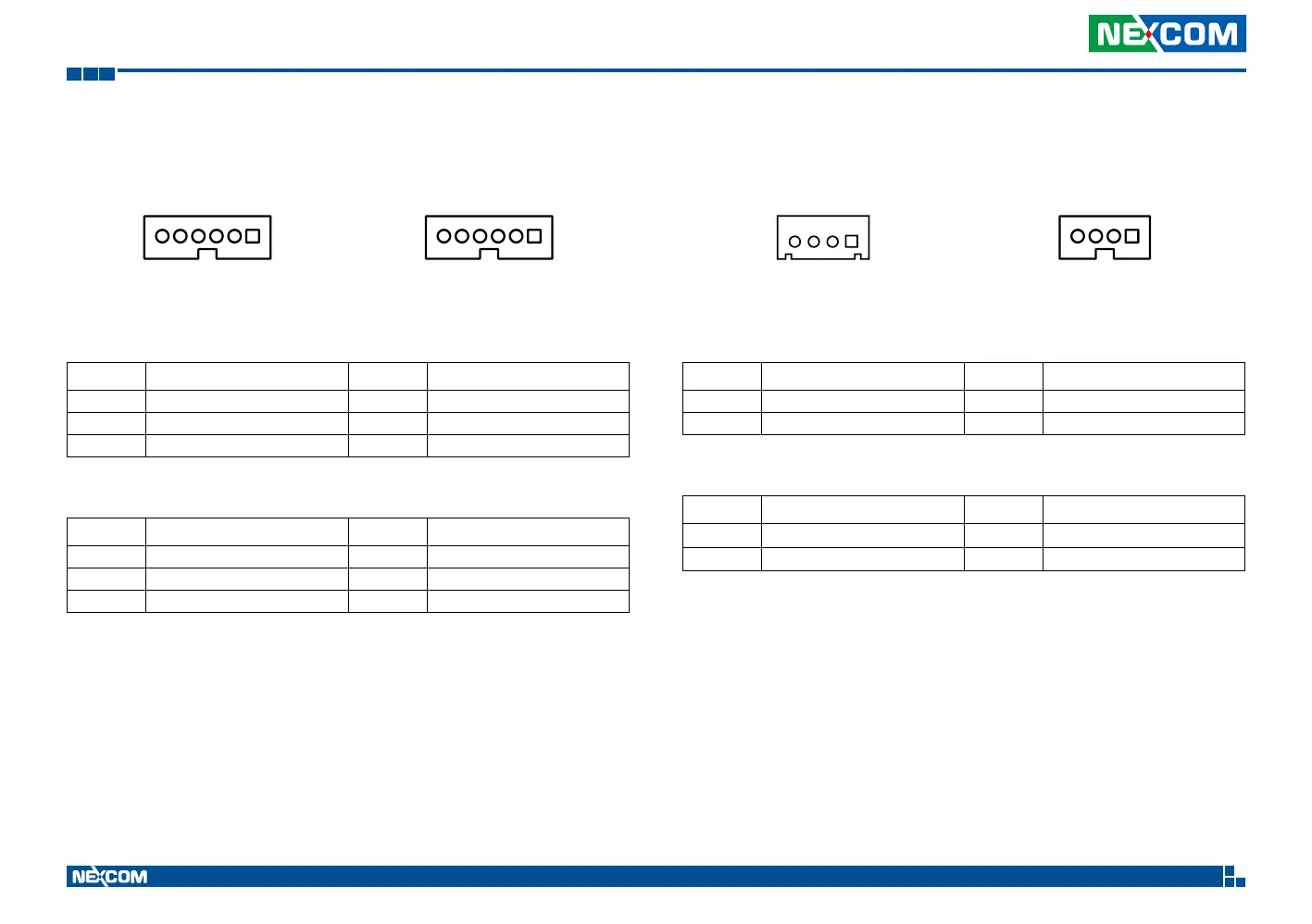

Module Connector Pin Definitions
16 16
J2 (GPS Side) J9 (PC Side)
14
J3 (GPS Side) J8 (PC Side)
J2 Pin Definition
Pin Definition Pin Definition
1 GPS_3V3 2 GND
3 GPS_TXD_M 4 GPS_RXD_M
5 NC 6 +V3.3ALW
J9 Pin Definition
Pin Definition Pin Definition
1 GPS_BAT 2 GPS_LED#
3 GPS_TX 4 GPS_RX
5 GND 6 VCC3_GPS
COM Port for GPS: COM 4
Baud Rate: 9600
J3 Pin Definition
Pin Definition Pin Definition
1 DR_DIRECTIO_M_R 2 DR_ODOMETER_M_R
3 1PPS_R 4 GND
J8 Pin Definition
Pin Definition Pin Definition
1 GND 2 1PPS
3 DR_ODOMETER_M 4 DR_DIRECTIO_M
14
