12: Flicker and Analysis
12.9: EN50160/IEC61000-4-30 Power Quality Compliance Analysis
(Nexus® 1252 meter with V-2)
If your Nexus® 1252 meter is equipped with V-Switch™ key 2, you have access to
the EN50160/IEC61000-4-30 PQ Compliance analysis function, as well as to Flicker
measurement.
12.9.1: EN50160/IEC61000-4-30 Configuration
1. Select the Profile icon from Communicator EXT
TM
application's Icon bar.

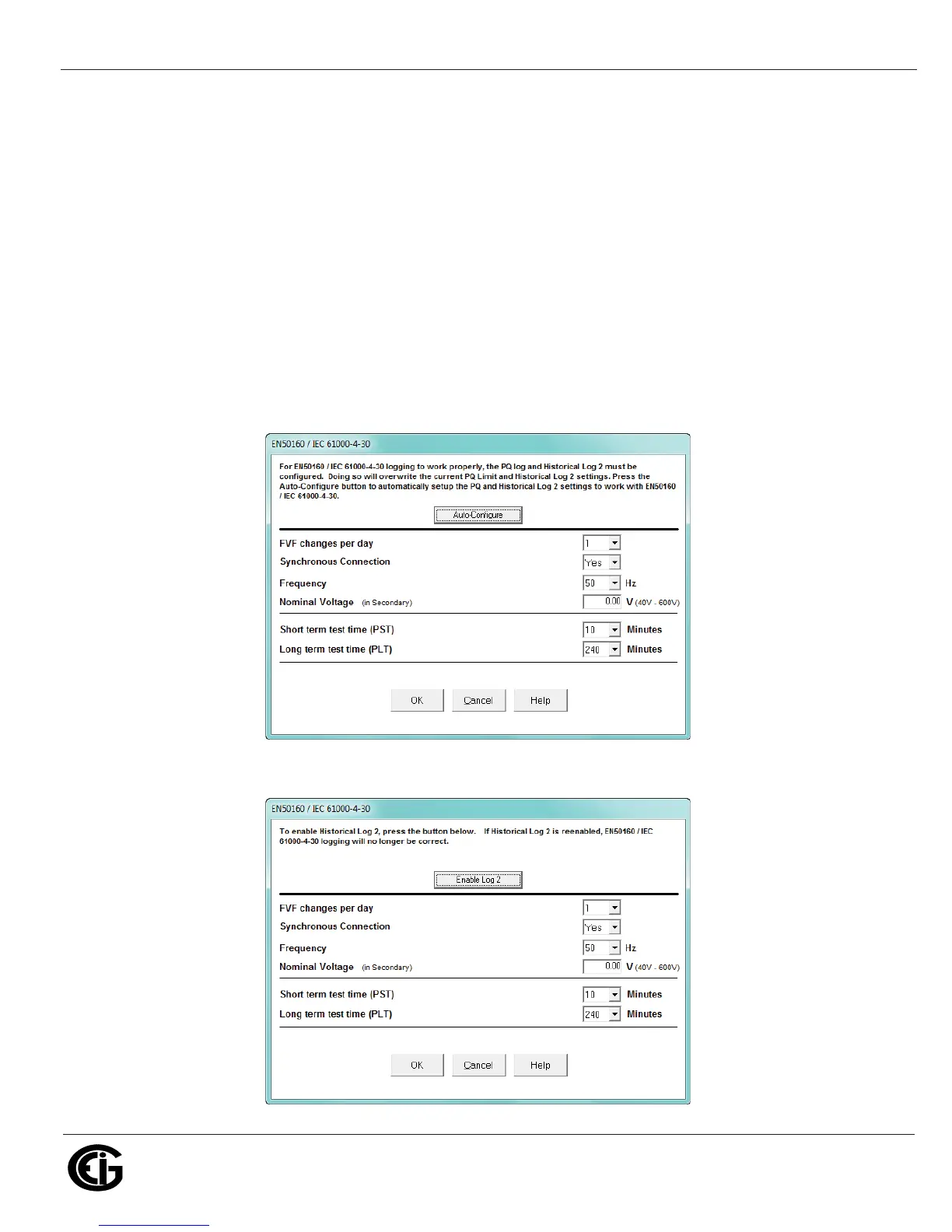

2. From the Device Profile screen, double-click Power Quality and Alarm Set-
tings>EN50160/IEC61000-4-30. Depending on your current setting, you will see
one of the following screens.
