5: Communication Wiring
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
Electro Industries/GaugeTech
The Leader In Power Monitoring and Smart Grid Solutions
RJ45 Network Connection allows a Nexus® 1250/1252 meter with the Internal
Network Option (INP200) to communicate with multiple PC’s simultaneously. No other
hardware is necessary for this easy-to-use connection.
In a Nexus® meter with INP200, Port 2 becomes a Gateway for connecting multiple
Nexus® meters using RS485.
See Chapter 11 for INP200 details.

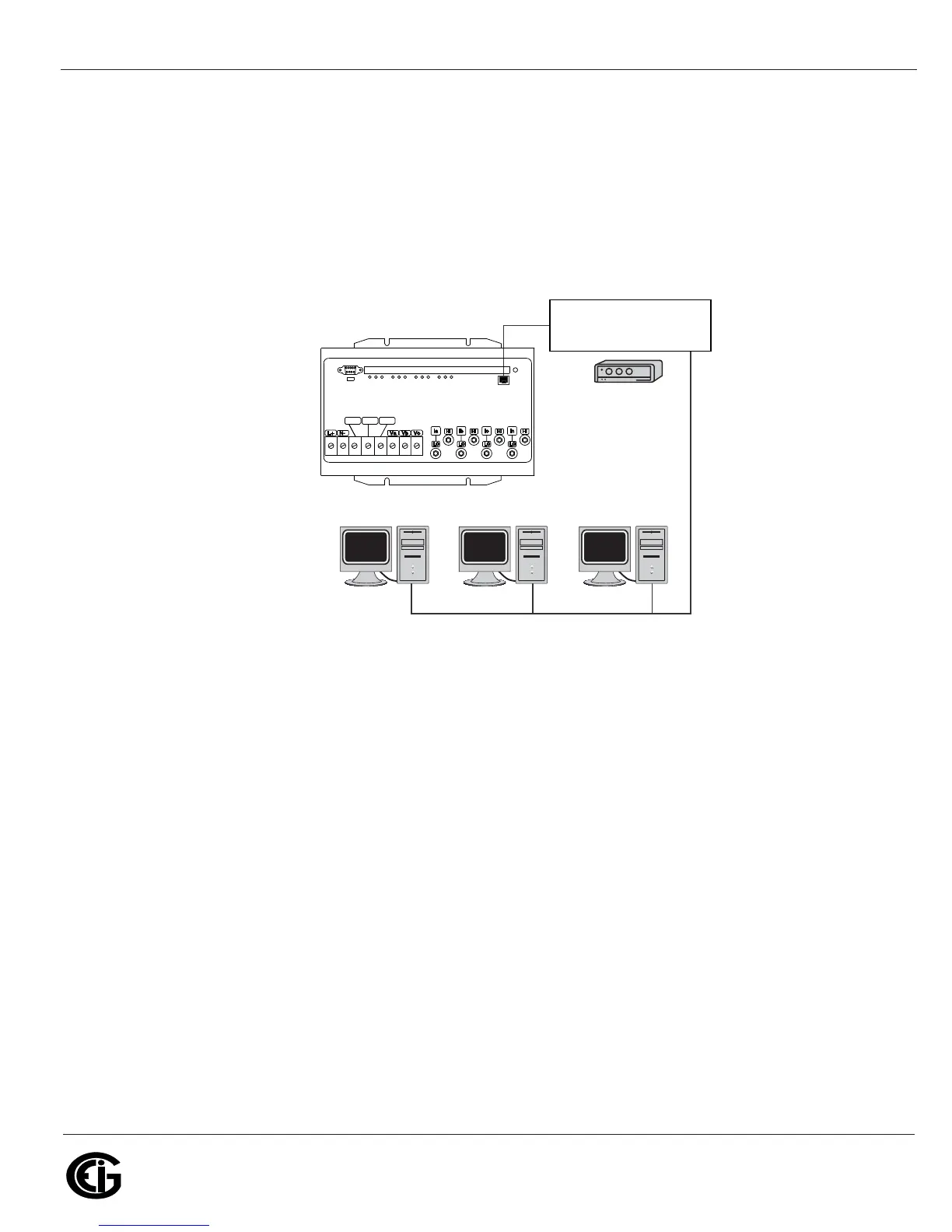

Figure 5.2: RJ45 Communication with Internal Network Option
NOTE: Nexus® 1252 meters can also communicate with DNP 3.0 protocol over
Ethernet.
#(!3)3
#(!3)3
6AUX
6AUX
6REF
6REF
.%853
-ODBUS4#0
/VER%THERNET)NTERNET
