Wheels, Drive System 105Service Manual – SC2000
Drive System Motor Electromagnetic Brake Disassembly/Assembly
Disassembly
1. Remove the gearmotor unit from the machine.
2. At the workbench, remove dust and debris around the electromagnetic brake.
3. Remove the two screws (A, Figure 7) and the electromagnetic brake (B).
Assembly
4. Assemble the components in the reverse order of disassembly, and note the following:
◦ When assembling, place a screw (C) as reference.
◦ Then install the electromagnetic brake, making sure that its hexagonal lining engages the hexagonal
shaft (D) of the drive system motor.
5. Reassemble the gearmotor unit.

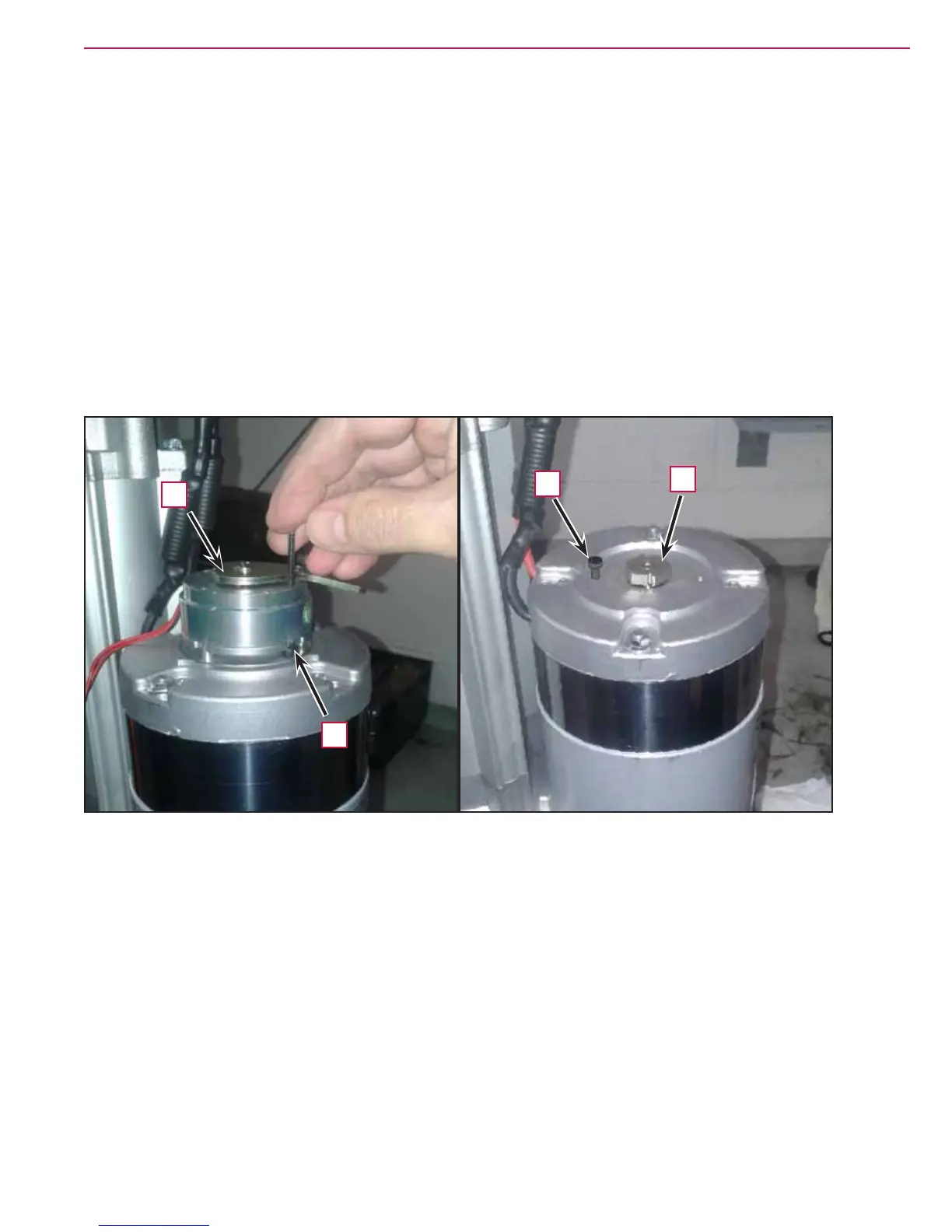

Figure 7
C
D
A
B
