Control System 34Service Manual – SC2000
Display Electronic Board (EB2) and Dashboard Instrument Electronic Board (EB4) Re-
moval/Replacement
Display Electronic Board (EB2)
1. Drive the machine on a level oor.
2. Remove the operator key and disconnect the red
battery connector
3. Remove the steering wheel mounting screws and
disconnect the wiring harness connection (A,
Figure 15).
4. At the workbench, remove the 6 screws (B), the
cover (C) and recover the gasket (D).
5. Disconnect the at connections (E) and (F) from
the display electronic board (EB3).
6. Remove the screws (I), remove the display
electronic board (G) and recover the springs (J)
of the microswitches (K).
E
F
C
I
J
K
D
I
G
J
B
A
B

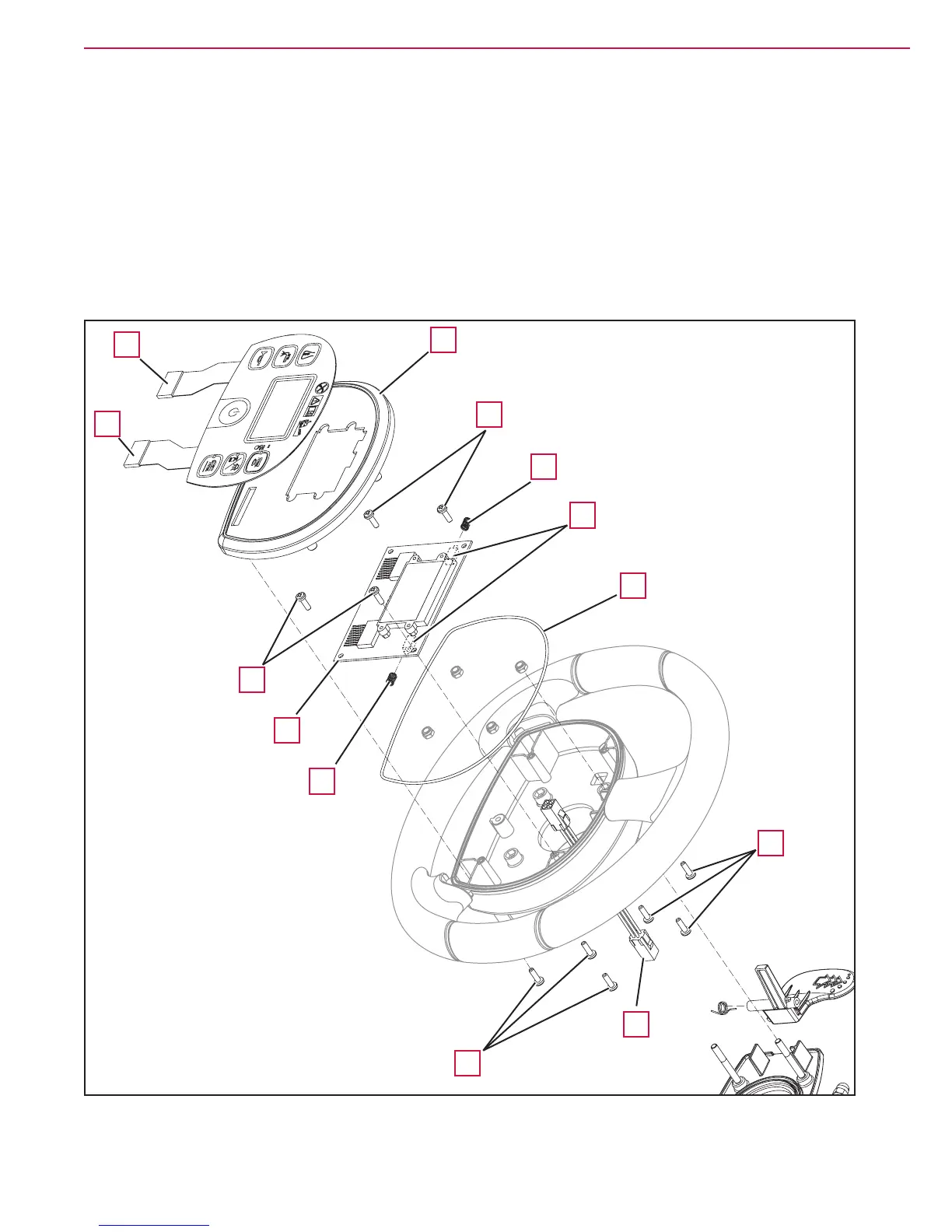

Figure 15
