Steering System 95Service Manual – SC2000
Steering System
Functional Description
The steering system connects the steering wheel to the front wheel.
The reduction gear pinion transmits the movement to the steering crown connected to the front wheel. The
front wheel assembly is equipped with anti-skid control sensor (SW4).
When necessary, the anti-skid control sensor reduces the speed to a safe speed when turning in order to avoid
sudden skidding, thus increasing machine stability in all conditions.
The system activation is shown by the icon on the display.

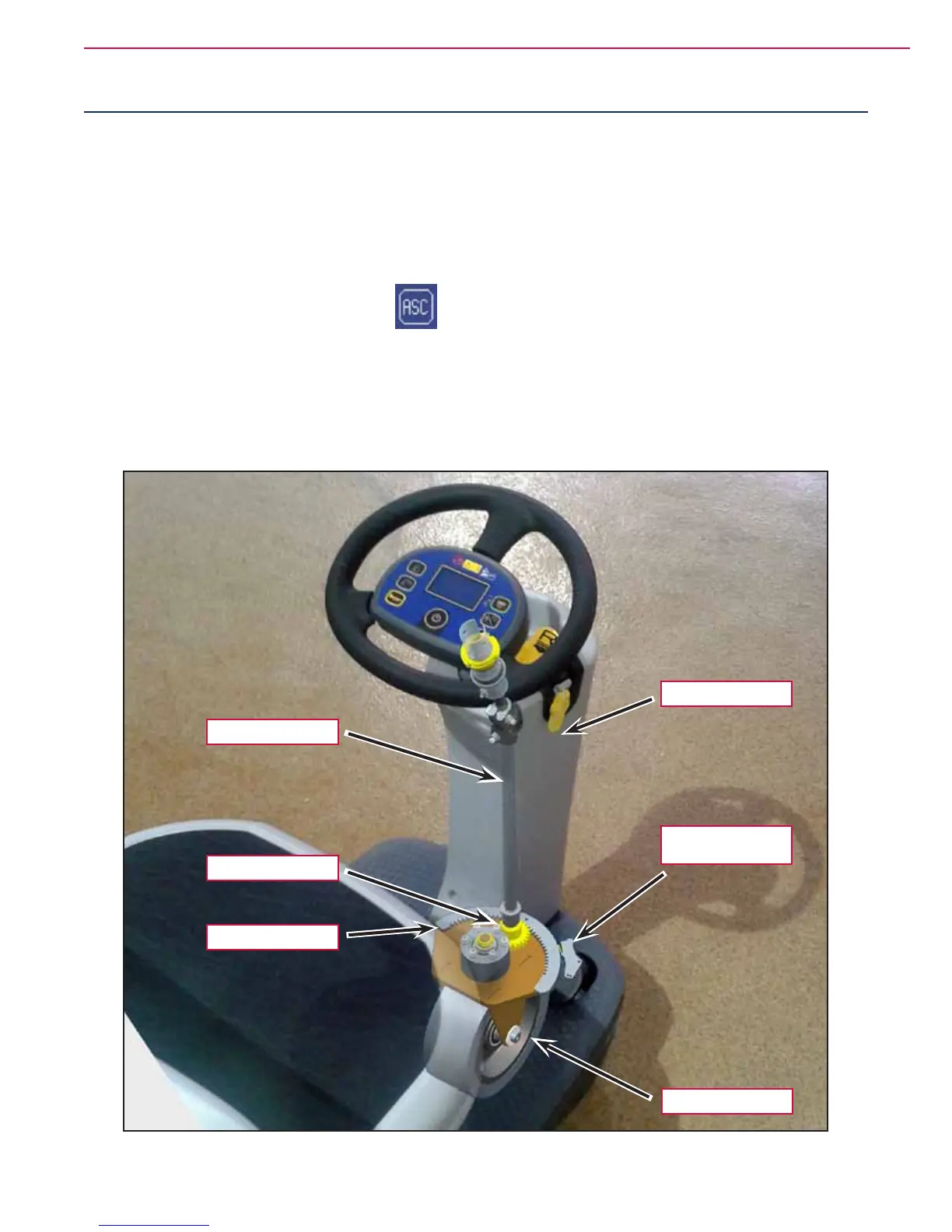

Component Locations
• Front fairing
• Steering column
• Steering pinion
• Steering crown
• Anti-skid control sensor (SW4)
• Front wheel
Anti-skid control
sensor (SW4)
Steering column
Front wheel
Steering pinion
Front fairing
Steering crown
Figure 1
