Vacuum System Motor Unit Disassembly/Assembly
Disassembly
1. Remove the operator key.
2. Disconnect the red battery connector.
3. If present, drain the recovery tank, then lift it.
4. Disconnect the connector (A) (Figure 6) and remove the fastening clamp.
5. Unscrew the 3 screws (B) and remove the vacuum system motor unit (C).

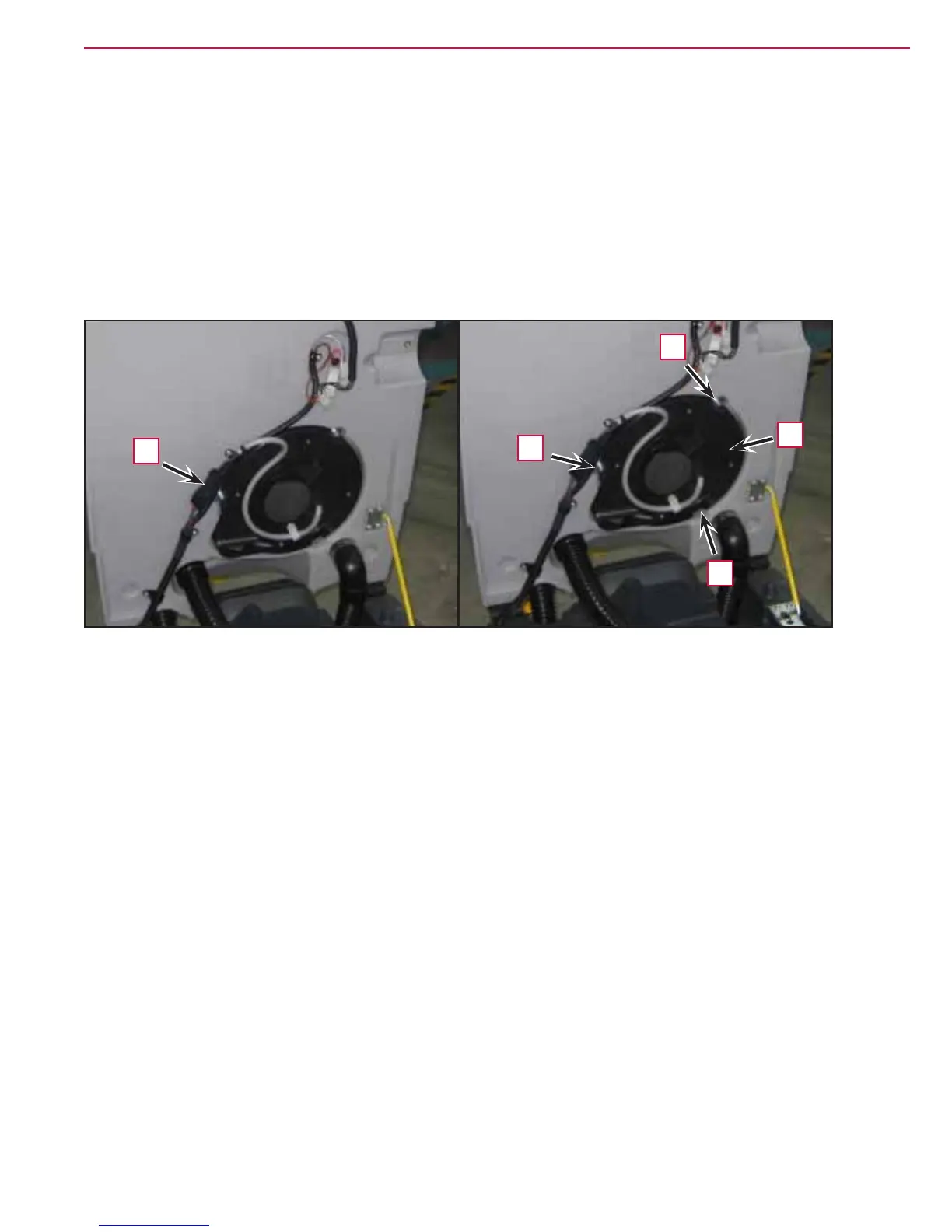

Figure 6
B
B
C
B
A
Assembly
6. Assemble the components in the reverse order of disassembly.
