Nilfisk-Advance SC2000 Service Manual

Control System 37Service Manual – SC2000
Function Electronic Board (EB1) Connectors (Continues)

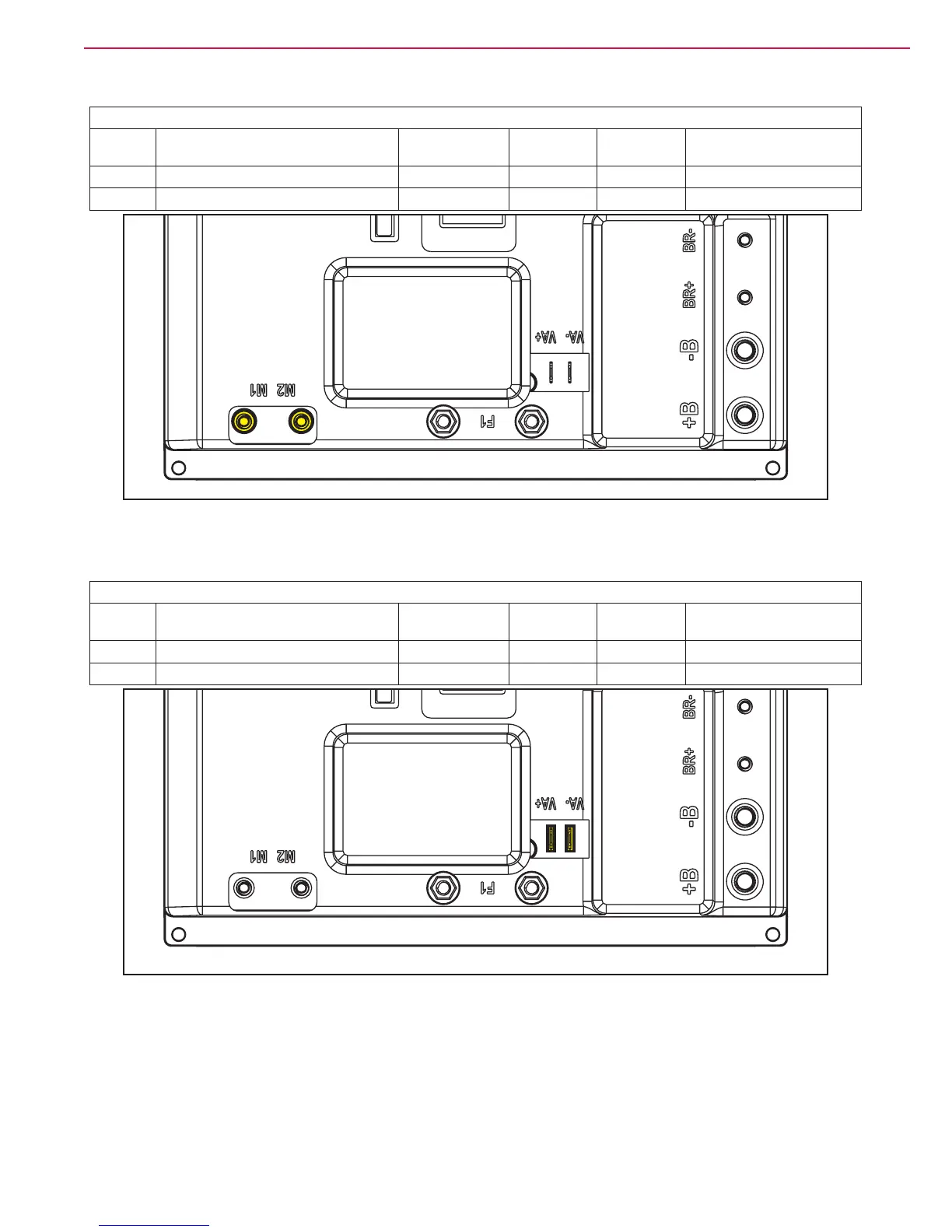

(Figure 19) Drive connections (Ø3.6mm male RADSOK terminals - AMPHENOL P/N N01 036 6501 001 or equivalent)
Ref. Description
Electronic board
in/out
V ref. I max. Connected to
M1 Drive system motor + out 0-24V 70A M3+
M2 Drive system motor - out 0-24V 70A M3-
Figure 19
(Figure 20) Vacuum connections (2-way male parallel faston connectors, 6.3x0.8 – spacing 6.5mm)
Ref. Description
Electronic board
in/out
V ref. I max. Connected to
VA+ Vacuum system power supply + out 16-24V 30A M2+
VA- Vacuum system power supply - out 0V 30A M2-
Figure 20
